    55MH5K-W component-copyModelName
    New LG 55'' 4K (3840x2160) IPS Surgical Monitor, 2024

    Key Features

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (55MH5K-W)
      AED
      AED
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (55MH5K-W)
      AED
      AED
      LG Members Price
    Total

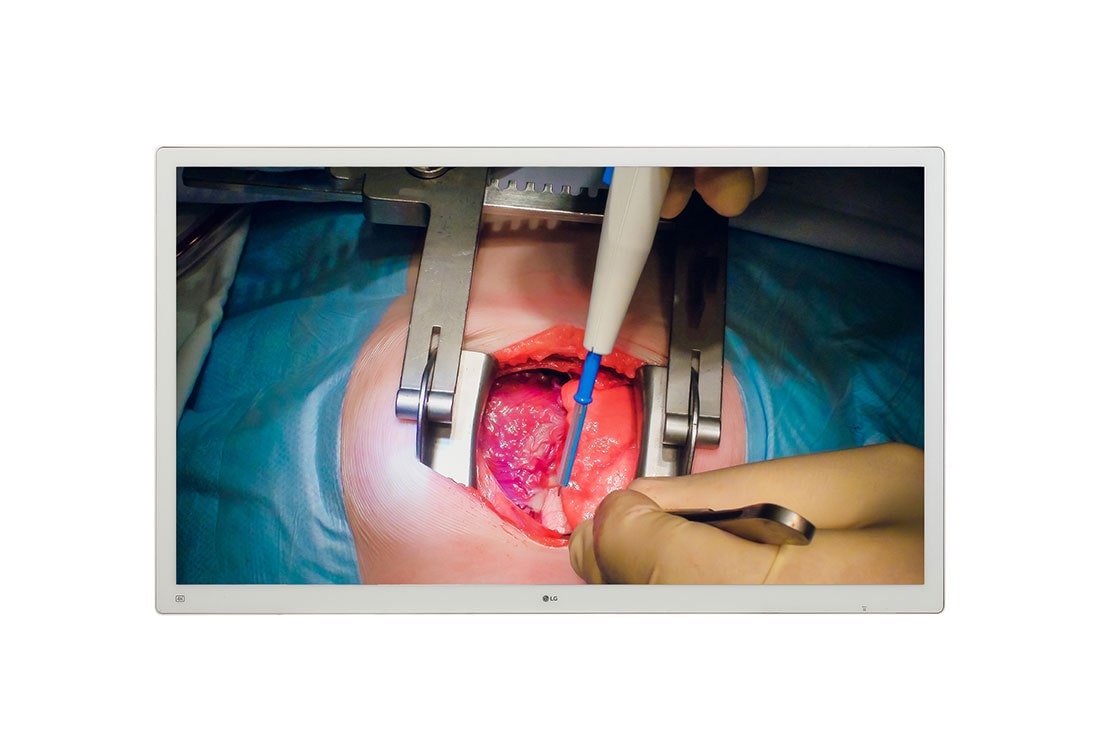

    New LG 55'' 4K (3840x2160) IPS Surgical Monitor, 2024
    4K Surgical Display

    4K Large Display for Surgery

    Experience vivid images on LG’s 55-inch 4K Display Surgical Monitor, equipped with an IPS panel that offers a wide 178° viewing angle.
    LG’s 55-inch 4K IPS Surgical Monitor 55MH5K will take your image quality and convenience to the next level. LG’s 55-inch 4K IPS Surgical Monitor 55MH5K will take your image quality and convenience to the next level.
    * All images are shown for illustrative purposes only and may vary from the actual product/usage.
    55-inch 4K IPS

    IPS Display with
    Wide Viewing Angle

    Experience vivid images on LG’s 55-inch 4K Display Surgical Monitor, equipped with an IPS panel that offers a wide 178° viewing angle. Experience vivid images on LG’s 55-inch 4K Display Surgical Monitor, equipped with an IPS panel that offers a wide 178° viewing angle.
    * All images are shown for illustrative purposes only and may vary from the actual product/usage.
    This 4K surgical monitor features HDR10, properly displaying HDR images clearly. This 4K surgical monitor features HDR10, properly displaying HDR images clearly.

    HDR10

    This 4K surgical monitor features HDR10, properly displaying HDR images clearly.
    * All images are shown for illustrative purposes only and may vary from the actual product/usage.
    PBP, PIP & 12G-SDI Support

    Multiple Signals on One Screen

    55MH5K supports up to 4PBP, PIP and extended ports, allowing you to view multiple signals simultaneously on a single screen.
    55MH5K supports up to 4PBP, PIP and extended ports, allowing you to view multiple signals simultaneously on a single screen. 55MH5K supports up to 4PBP, PIP and extended ports, allowing you to view multiple signals simultaneously on a single screen.
    * All images are shown for illustrative purposes only and may vary from the actual product/usage.
    The 55MH5K supports12G-SDI, which enables long-distance transmission of 4K signals over a single coaxial cable. The 55MH5K supports12G-SDI, which enables long-distance transmission of 4K signals over a single coaxial cable.

    12G-SDI Support

    The 55MH5K features a 55-inch 4K (3840x2160) IPS display with 12G-SDI Support, which enables long-distance transmission of 4K signals over a single coaxial cable without latency for stable surgery.
    * 12G-SDI input transmission maximum distance may vary by manufacturers: Up to 50M using BELDEN 1694A cable / Up to 70M using CANARE UHD 5.5C cable.
    * 12G-SDI is sold separately.
    * All images are shown for illustrative purposes only and may vary from the actual product/usage.
    When the main source is missing, the display will automatically switch to a failover source and restore the main source once the signal is back. When the main source is missing, the display will automatically switch to a failover source and restore the main source once the signal is back.

    Failover Input Switch

    When the main source is missing, the display will automatically switch to a failover (backup) source and restore the main source once the signal is back. You can set the main input and failover input in the setting menu of monitor.
    * All images are shown for illustrative purposes only and may vary from the actual product/usage.
    Conveniently flip and rotate the monitor to adjust to your needs. Mirror & Rotation Modes allow you to select a convenient 180° rotated/mirror image. Conveniently flip and rotate the monitor to adjust to your needs. Mirror & Rotation Modes allow you to select a convenient 180° rotated/mirror image.

    Mirror & Rotation Modes

    Conveniently flip and rotate the monitor to adjust to your surgery needs. Mirror & Rotation Modes allow you to select a convenient 180° rotated/mirror image.
    * All images are shown for illustrative purposes only and may vary from the actual product/usage.
    With ratings of IP 45 on the front and IP 32 on the body except for front, this surgical monitor is protected against contact with solid objects and water. With ratings of IP 45 on the front and IP 32 on the body except for front, this surgical monitor is protected against contact with solid objects and water.

    Protected Against Solid Objects & Water Jets

    With ratings of IP 45* on the front and IP 32* on the body except for front, this surgical monitor is protected against contact with solid objects and water.
    * IP 45: According to the Ingress Protection (IP) Rating System, an IP45 means protection against solid foreign objects Level 4 (Protection against solid objects larger than 1.0mm (such as a wire)), and protection against liquids Level 5 (Protection against low-pressure jets of water from any angle. Limited ingress permitted with no harmful effects). This product has been tested under controlled laboratory conditions and received an IP45 rating. Dry before using. Do not charge while wet. Level of protection against solids and liquids may change over time or with exposure to excessive amounts of solids and liquids.

    * IP 32: According to the Ingress Protection (IP) Rating System, an IP32 means protection against solid foreign objects Level 3 (Protection against solid objects larger than 2.5mm (such as a screwdriver or cables)), and protection against liquids Level 2 (Protection against vertically falling droplets when enclosure is tilted up to 15° off vertical). This product has been tested under controlled laboratory conditions and received an IP32 rating. Dry before using. Do not charge while wet. Level of protection against solids and liquids may change over time or with exposure to excessive amounts of solids and liquids.

    * All images are shown for illustrative purposes only and may vary from the actual product/usage.
    Close
    DISPLAY
    • Aspect Ratio
      16:9
      Backlight Dimming Technology
      Global Dimming
    • Backlight Technology
      LED
      Backlight Type
      Edge
    • Brightness (Min.)
      540cd
      Brightness (Typ.)
      680cd
    • Brightness(Stabilization)
      400cd (Dicom_350cd)
      Color Bit
      10bit
    • Color Depth (Number of Colors)
      1.07B
      Color Gamut (Typ.)
      DCI-P3 86% (CIE1976)
    • Contrast Ratio (Min.)
      800:1
      Contrast Ratio (Typ.)
      1100:1
    • Contrast Ratio with DFC
      Mega
      Panel Type
      IPS
    • Peak Brightness (Min.)
      540cd (Peak)
      Peak Brightness (Typ.)
      680cd (Peak)
    • Pixel Pitch
      0.315mm x 0.315mm
      Resolution
      3840x2160
    • Response Time
      5ms (GtG at Faster)
      Size (Inch)
      55
    • Size (cm)
      138.8
      Surface Treatment
      With Direct bonding Glass (3.1t, AR, AF)
    • Viewing Angle (CR≥10)
      178o(R/L), 178o(U/D)
      Color temperature
      6500K / 7500K / 9300K, Manual(5000K~10000K)
    FEATURE
    • DICOM Compliant
      YES
      Factory Calibration
      YES(Delta E<5, Gamma 1.8~2.6/DICOM curve)
    • Failover Input Switch
      YES
      Hot Key
      YES(2keys)
    • Brightness stabilization
      YES
      Rotation & Mirror Mode
      YES
    • Uniformity
      YES
      User Preset
      YES
    • Black Stabilizer
      YES
      HDR 10
      YES
    • HDR Effect
      YES
      HW Calibration
      YES
    • OSD Language
      17 Language
      PBP
      YES (2PBP/3PBP/4PBP)
    • PIP
      YES
      Picture Mode
      (SDR)Custom, Vivid, HDR Effect, Mono, REC709, REC2020, DICOM, Calibration 1, Calibration 2, (HDR)Custom, Vivid, Standard
    • Smart Energy Saving
      YES
      Super Resolution+
      YES
    SW Application
    • LG Calibration Studio (True Color Pro)
      YES
    CONNECTIVITY
    • 12G-SDI
      YES (12G INx4 / OUTx4, SFP INx1)
      RS-232
      YES
    • Equipotential Pin
      YES
      DP (HDCP Version)
      2.2
    • DP (Max. Resolution at Hz)
      3840x2160 at 60Hz
      DP (w/o VRR)
      56~61Hz
    • DP Version
      1.2
      DVI (Max Resolution at Hz)
      1920x1080 at 60Hz
    • DVI (V Frequency)
      56~61Hz
      DVI-D
      YES(1In / 1Out)
    • DisplayPort
      YES(In 1ea / Out 1ea)
      HDMI
      YES(1ea)
    • HDMI (HDCP Version)
      2.2
      HDMI (Max. Resolution at Hz)
      3840x2160 at 60Hz
    • HDMI (w/o VRR)
      56~61Hz
      HDMI Version
      2.0
    • USB Downstream Port
      YES(1ea/ver3.0)
      USB Upstream Port
      YES(1ea/ver3.0)
    • [Location]
      Bottom
    POWER
    • AC Input
      100 - 240 V (50/60 Hz, 2.5~1.25A)
      DC Output
      Built-in Power (PSU output_20.5V,9A)
    • Power Consumption (DC Off)
      Less than 0.3W
      Power Consumption (Max.)
      180W
    • Type
      Built-in Power
    MECHANICAL
    • Borderless Design
      Normal
      Color (Back Cover)
      White
    • Color (Middle Cabinet)
      White
      Down Height
      No Stand
    • Height Range
      No Stand
      Machanical Power Switch
      YES
    • Wall Mountable
      200 x 200 mm & 300 x 300 mm
    Dimensions/Weight
    • Dimension in Shipping (W x H x D)
      1490 x 880 x 172 mm
      Dimension without Stand (W x H x D)
      1283.4 x 768.5 x 68.3 mm
    • Pallet Stuffing (20ft/40ft/40ft HC)
      84EA / 180EA / 180EA
      Weight in Shipping
      42.3kg
    • Weight without Stand
      34.8kg
    Standard
    • EN (EN 60601-1 / EN 60601-1-2)
      YES
      EN (EN 60950-1 / EN 55032, 55024)
      YES
    • FCC (FCC part 15 Class A)
      YES
      FDA
      Registration (Class I)
    • GMP
      YES
      IEC (IEC 60601-1 / IEC 60601-1-2)
      YES
    • IEC (IEC 60950-1 / IEC 55032, 55024)
      YES
      IP(Front/Except for front)
      IP45/IP32
    • ISO13485
      YES
      KGMP
      YES
    • MFDS
      YES
      Vandal-proof
      IK06
    • WEEE
      YES
      cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
      YES
    • CB
      YES
      CE
      YES
    • Others (Standard)
      CE-MDR (Class I)
      ROHS, REACH
      YES
    • UL (cUL)
      YES
    ACCESSORY
    • Calibration Report (Paper)
      YES
      Display Port
      YES
    • Display Port (Color/Length)
      Black / 1.8m
      HDMI
      YES
    • HDMI (Color/Length)
      Black / 1.8m
      Power Cord
      YES
    • Power Cord (Color/Length)
      White / 2.8m
