    55EF5K-L component-copyModelName

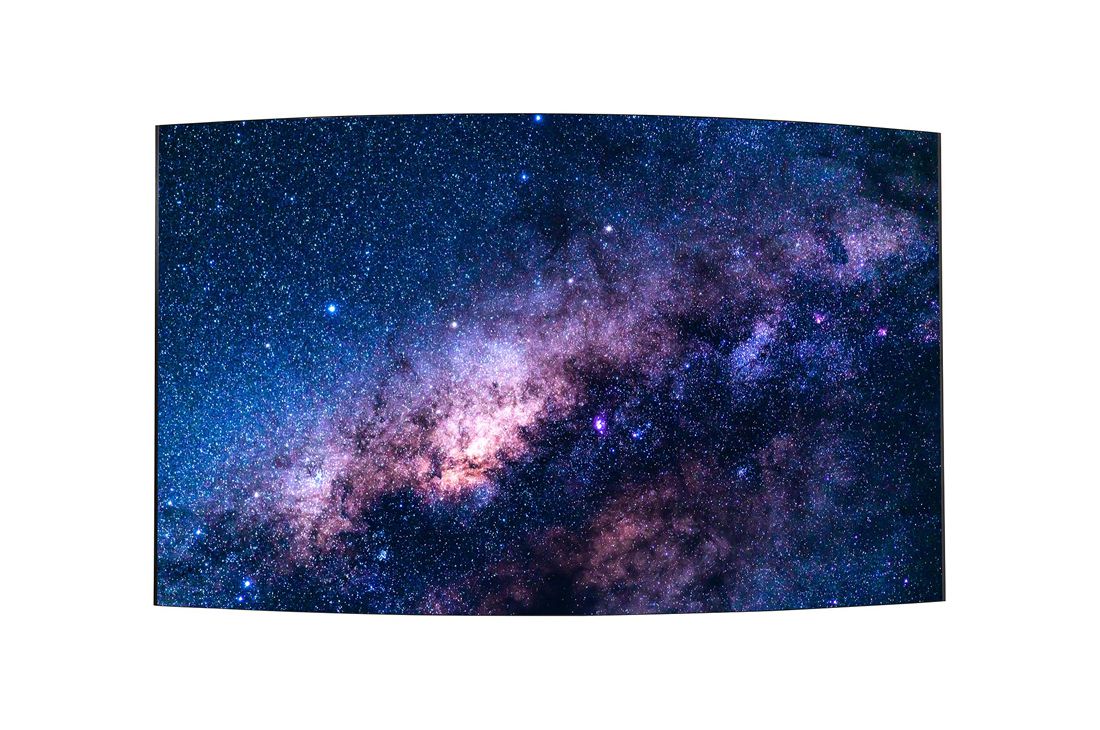

    Flexible Curved Open Frame OLED Signage

    Key Features

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (55EF5K-L)
      AED
      AED
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (55EF5K-L)
      AED
      AED
      LG Members Price
    Total
    Flexible Curved Open Frame OLED Signage
    Find a Dealer
    A woman and a child are going up a tunnel made of flexible Curved Open Frame OLED Signage through an escalator. A woman and a child are going up a tunnel made of flexible Curved Open Frame OLED Signage through an escalator.
    * All images in this web page are for illustrative purposes only.

    Artistic Space beyond Display LG OLED Signage

    Blending in with the space while captivating everyone’s mind. LG OLED signage offers flexible design. Beyond its informative features, LG OLED signage delivers unsurpassed advertising effectiveness, redesigning space as a prestige-enhancing landmark with perfect colors and innovative forms.
    The woman is looking at the weather and time information displayed on the curved screen. The woman is looking at the weather and time information displayed on the curved screen.

    Expandable Screen Size

    The screen size can be as large as users want by tiling up displays horizontally and vertically. This provides viewers with an incredibly immersive viewing experience.
    Several screens can be arranged like tiles to embody the desired size. Several screens can be arranged like tiles to embody the desired size.

    Splendid Design

    LG OLED technology doesn’t require a backlight unit nor a liquid crystal layer so it offers a flexible design with unbelievably lightweight and slim features.
    A screen of LG OLED Signage is slim, light, and flexible. A screen of LG OLED Signage is slim, light, and flexible.
    LG OLED Signage shows better contrast between black and white than ordinary LCD. LG OLED Signage shows better contrast between black and white than ordinary LCD.

    Absolute Black

    Equipped with over 8 million self-lighting pixels operating individually, LG OLED Signage reproduces absolute blacks with no light bleed and offers infinite contrast.
    LG OLED Signage has a variety of colors rather than LCD to express the object more vividly. LG OLED Signage has a variety of colors rather than LCD to express the object more vividly.

    Rich Color

    LG OLED Signage provides richness in all colors, bringing colors to life with great accuracy and vividness.

    Variety of Curvature for Landmarks

    The EF5K series supports various concave and convex curvature in both portrait and landscape orientations. You can differentiate your space in a variety of ways with beautifully curved displays to keep passengers captivated and immersed.
    Children are looking at the screen that curved in a wave-shaped interestingly in which the universe is expressed. Children are looking at the screen that curved in a wave-shaped interestingly in which the universe is expressed.

    On-site Customization

    The EF5K series enables a completely new approach for innovative and flexible designs. Its optional "Curvature Calibrator(CC)*" supports the coordination of displays with various convex and concave curvature, depending on the requirements. This makes it possible to rapidly respond to changes on-site, making it easier to successfully build an eye-catching landmark.
    The EF5K series is designed to bend the screen convex or concave, allowing flexibility in adjusting even when sudden requests are received on-site. The EF5K series is designed to bend the screen convex or concave, allowing flexibility in adjusting even when sudden requests are received on-site.
    * A Curvature Calibrator needs to be purchased separately. Please contact your regional LG sales representatives for details.
    Displays are easily managed wirelessly through LAN daisy chain function. Displays are easily managed wirelessly through LAN daisy chain function.

    LAN Daisy Chain Management

    The LAN daisy chain allows users to control and monitor displays, transmit data and even update firmware all at once, reducing management burden.
    Each of screen contents are synchronized and played without delay. Each of screen contents are synchronized and played without delay.

    Videowall Playlist & Sync Playback

    Through its built-in high performance SoC, each display plays its video tile for synchronized content playback.
    Close
    PANEL
    • Screen Size
      55"
      Panel Technology
      OLED
    • Back Light Type
      OLED
      Aspect Ratio
      16:9
    • Native Resolution
      1920 x 1080 (FHD)
      Refresh Rate
      120 Hz
    • Brightness
      150/400nit (APL 100%/25%)
      Contrast Ratio
      150,000 : 1
    • Color Gamut
      BT709 120%
      Viewing Angle(H x V)
      178 x 178
    • Color Depth
      10bit(R), 1.07Bilion colors
      Response Time
      1ms (G to G), 8ms (MPRT)
    • Surface Treatment(Haze)
      Hard coating (2H)
      Reflectance Typ. 1.2%
      Life time
      30,000 Hrs (Typ.)
    • Operation Hours (Hours/Day)
      18/7 (Moving Content Only)
      Portrait / Landscape
      Yes
    CONNECTIVITY(JACK INTERFACE)
    • Input
      HDMI (1, HDCP1.4), DP (1, HDCP1.3), RS232C IN, RJ45 (LAN), IR IN (1, External IR Receiver), USB2.0 Type A (2)
      Output
      DP Out, Audio Out, RS232C OUT (1, w/ IR out), RJ45 (LAN)
    MECHANICAL SPECIFICATION
    • Bezel Color
      Black
      Bezel Width
      T/R/L/B : 0.6/6.7/6.7/0.6mm (LandScape, Off Bezel)
      T/R/L/B : 0.6/6.7/6.7/0.6mm (Portrait, Off Bezel)

      T/R/L/B : 5.0/7.6/7.6/10.6mm (LandScape, On Bezel)
      T/R/L/B : 5.0/13.2/7.8/5.0mm (Portrait, On Bezel)
    • Weight (Head)
      5.8Kg (LandScape, Head)
      7.0Kg (Portrait, Head)
      3.5Kg (Signage Box)
      Packed Weight
      17.0Kg (LandScape)
      17.6Kg (Portrait)
    • Monitor Dimension(W x H x D)
      1224.9 x 696.2 x 38.0mm (LandScape, Head, w/Pemnut)
      701.4 x 1219.7 x 38.0mm (Portrait, Head, w/Pemnut)

      1224.9 x 696.2 x 12.4mm (Landscape, Head, w/o Pemnut)
      701.4 x 1219.7 x 12.4mm (Portrait, Head, w/o Pemnut)

      413 x 353 x 57.3mm (Signage Box)
      Carton Dimensions(W x H x D) (Box outer size)
      1360 x 842 x 252mm
    KEY FEATURE
    • HW
      Internal Memory 16GB, Temperature Sensor, FAN
      SW
      webOS ver. (webOS4.0), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over,Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Inside), Power (PM mode, Wake on LAN), HDMI-CEC, SI Server Setting, Pro:Idiom, Scan Inversion
    ENVIRONMENT CONDITIONS
    • Operation Temperature
      0°C to 40°C
      Operation Humidity
      10% to 80%
    POWER
    • Power Supply
      AC 100-240V~, 50/60Hz
      Power Type
      Built-In Power
    POWER CONSUMPTION
    • Typ.
      309W
      Max.
      318W
    • BTU (British Thermal Unit)
      1054 BTU/Hr(Typ.), 1085 BTU/Hr(Max)
      DPM
      0.5W
    • Power off
      0.5W
    CERTIFICATION
    • Safety
      IEC 60950-1 / EN 60950-1 / UL 60950-1
      EMC
      FCC Class "A" / CE / KC
    • ErP / Energy Star
      Yes / No
    SOFTWARE COMPATIBILITY
    • SuperSign CMS
      Yes (v3.0)
      SuperSign Control / Control+
      Yes (v1.7 / v1.9)
    • SuperSign WB
      Yes (v3.7.15)
      SuperSign Media Editor
      Yes (v3.7)
    • Signage 365 Care
      Yes (v2.9)
    LANGUAGE
    • OSD
      English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
    ACCESSORY
    • Basic
      Remote Controller(include battery 2ea), Power Cord, QSG,
      IR receiver, Regulation Book, Phone to RS232C Gender, FFC Cables(220mmx4ea for connection between panel and Sinage box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Tape(4EA for Cabling), Screw(M3xL4.5,30EA / M3xL5.5,50EA / M3x3.5, 10EA), Shield Cover Assy', Tiling Set Fixer 6EA, Flex Bar 2EA
    SPECIAL FEATURE
    • Tilt (Facedown)
      Yes
