    ABNQ18GM1T7 ANWTBHR + ABUQ18GM1T7 ANWTBHR component-copyModelName

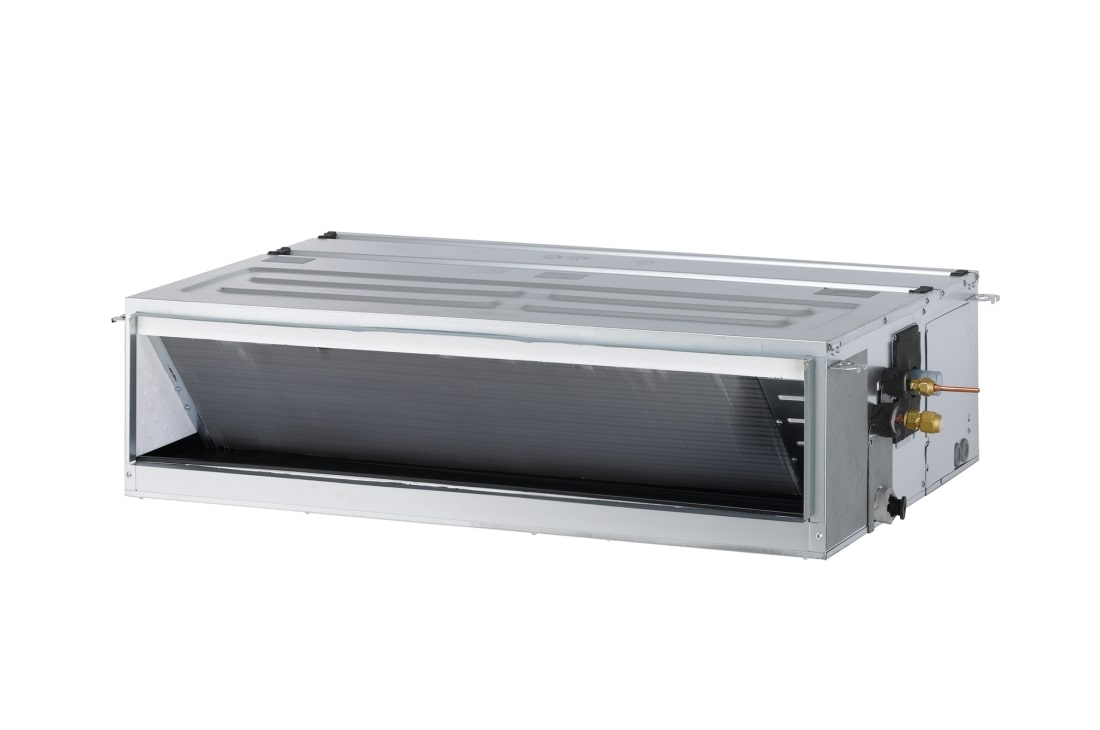

    Inverter Ducted Dx 1.5 TR, Inverter Compressor, Corrosion resistant heat exchanger, Quick Cooling

    Key Features

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (ABNQ18GM1T7 ANWTBHR + ABUQ18GM1T7 ANWTBHR)
      AED
      AED
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (ABNQ18GM1T7 ANWTBHR + ABUQ18GM1T7 ANWTBHR)
      AED
      AED
      LG Members Price
    Total
    Inverter Ducted Dx 1.5 TR, Inverter Compressor, Corrosion resistant heat exchanger, Quick Cooling
    Find a Dealer
    • A simple interface icon with 'ESP' in a rectangle, surrounded by control symbols indicating Easy Control of LG Ceiling Concealed Duct.

      Easy Control

      The ESP function adjusts air volume via a remote controller, while the BLDC motor controls fan speed and air volume. A wired remote control automatically sets external static pressure regardless of pipe length, providing easy installation.

    • A thermometer symbol icon with red arrows indicating adjustable temperature setting represents the Optimal Temperature Control for LG Ceiling Concealed Duct.

      Optimal Temperature Control

      Monitored via the remote control and the indoor unit, the two thermistors can optimize the indoor temperature by sensing temperatures from different positions and automatically setting the optimal temperature for users.

    • A simple house outline icon with three interior arrows indicates the airflow direction of the LG Ceiling Concealed Duct in different rooms, symbolizing efficient air Management of Multiple Spaces.

      Management of Multiple Spaces

      Simultaneous operation of cooling and heating for multiple rooms is achieved by using a spiral duct(embedded or flexible type) and a steam chamber.

    • An air conditioner outline icon within a dashed border emphasizes the small and space-saving design of the LG Ceiling Concealed Duct.

      Compact Size

      New mid-static ducts1) provide ideal solution for installation in limited space.

    1. Conventional models are ARNU28GBGA2, ARNU36GBGA2, ARNU42GBGA2 and new models are ARNU28GM2A4, ARNU36GM2A4, ARNU42GM2A4.
    Close
    CAPACITY
    • Cooling1 (Min. ~ Rated ~ Max.) (kW)
      1.47~4.74~5.86
      Cooling1 (Min. ~ Rated ~ Max.) (Btu/h)
      5000~16,200~20000
    • Cooling2 (Min. ~ Rated ~ Max.) (kW)
      1.47~4.35~5.86
      Cooling2 (Min. ~ Rated ~ Max.) (Btu/h)
      5000~14,800~20000
    POWER INPUT
    • Cooling1 (Rated) (kW)
      1.31
      Cooling2 (Rated) (kW)
      1.71
    EER/COP
    • T1
      12.40
      T3 (W/W)
      12.40
    OUTDOOR UNIT
    • Power Supply (V , ? , Hz)
      220-240, 1, 50
      Power Supply Cable (included Earth) (No. × mm2)
      3C × 2.5
    • Casing Color
      Warm Gray
      Dimensions Net (W × H × D) (mm)
      770 x 545 x 288
    • Net Weight (kg)
      34.3
      Compressor Type
      Twin Rotary
    • Refrigerant Type
      R410A
      Fan Motor Type
      BLDC
    • Sound Pressure Level Cooling (Rated) (dB(A))
      49
      Piping Connections Liquid (Outer Dia.) (mm (inch))
      ? 6.35 (1/4)
    • Piping Connections Gas (Outer Dia.) (mm (inch))
      ? 12.7 (1/2)
      Piping Length IDU - ODU (Rated / Max / Min) (m)
      5/30/5
    • Maximum Height Difference (IDU ~ ODU) (Max) (m)
      20
    INDOOR UNIT
    • Type
      Ceiling Concealed Duct-Mid. Pressure
      Power Supply (V, ?, Hz)
      220-240, 1, 50
    • Dimensions Net (W × H × D) (mm)
      900 x 270 x 700
      Net Weight (kg)
      23.2
    • Fan Air Flow Rate H / M / L (m3/min)
      16.5 / 14.5 / 13.0
      External static pressure High Mode_Factory Set (Pa (mmAq))
      6
    • Fan Motor Type
      BLDC
      Safety Device
      Fuse
    • Sound Pressure Level H / M / L (dB(A))
      34 / 32 / 30
