15LU766A (EU) component-copyModelName

15'' Intuitive Multi-touch Display

LG 15'' Intuitive Multi-touch Display, 15LU766A (EU), thumbnail 1

LG 15'' Intuitive Multi-touch Display, 15LU766A (EU), thumbnail 2

LG 15'' Intuitive Multi-touch Display, 15LU766A (EU), thumbnail 3

LG 15'' Intuitive Multi-touch Display, 15LU766A (EU), thumbnail 4

LG 15'' Intuitive Multi-touch Display, 15LU766A (EU), thumbnail 5

Discontinued

15LU766A (EU) component-copyModelName

15'' Intuitive Multi-touch Display

Key Features

Intuitive Multi-touch Display
Antibacterial Properties Applied
Sleek, Durable Glass
Mounts Compatibility
Replaceable Headphone Jack
Pro:Centric Information Management Solution

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Intuitive Multi-touch Display
Antibacterial Properties Applied
Sleek, Durable Glass
Mounts Compatibility
Replaceable Headphone Jack
Pro:Centric Information Management Solution

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

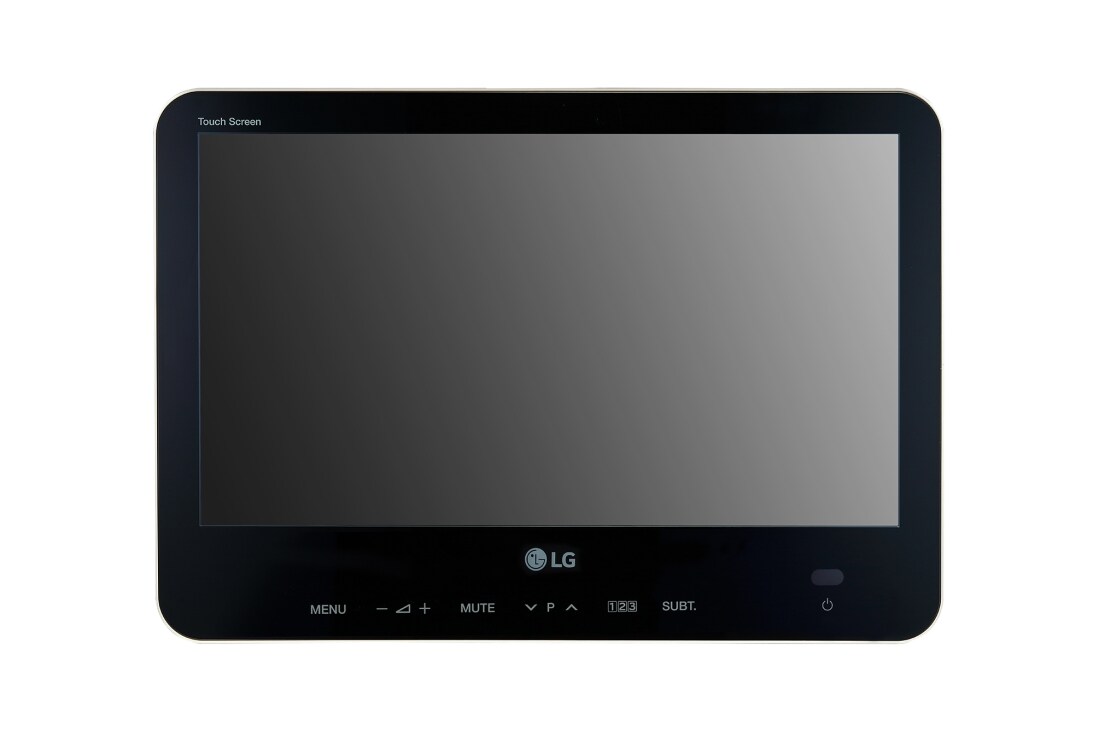

15" Intuitive Multi-touch Display

Personal Healthcare Smart Touch Screen TV

Provide your patients with the smart solution, 15.6" multitouch based ARM TV, for a superior hospital experience. The LU766A series enables personalized interactive service with its multi-touch screen and webOSoperating system, which is the optimal platform for Patient Engagement Providers in the industry.

Interactive Healthcare TV Solution

Intuitive Multi-touch Display

This touch screen recognizes the presence of more than two points of contact with the surface, allowing more users in a hospital setting to experience interactive services (e.g., doctor and patient) and entertainment (e.g., patient and family).

Interactive Healthcare TV Solution

Perfect Viewing Screen with LG IPS

LG TV with IPS Panel delivers awe-inspring picture quality across the entire screen, even from wide viewing angles.

Pre-loaded Apps (including gaming apps)1

Interactive Healthcare TV Solution

Pre-loaded Apps (including gaming apps)

Guest can be served with pre-loaded applications, Including many popular games, Youtube, WebBrowser and others.

Pro:Centric Information Management Solution1

Smart Experience

Pro:Centric Information Management Solution

Pro:Centric SMART is optimized for customizing information and entertainment services through an IP & RF infrastructure. With its high picture quality, sophisticated design and advanced connectivity functions, the LU766A Series improves and creates new in-room experiences for patients, hospital staff and family.

Smart Experience

Pro:Centric Direct Solution

Pro:Centric Direct is a content management system for public facility that supports simple editing tools and provides various solutions such as 1-click service and IP-network-based remote management. With the solution, users enable to design UI easily and provide customized service while managing TV efficiently.

Smart Experience

Pro:Idiom

Securely provide entertainment content with Pro:Idiom DRM^{(Digital Right Management)} which prevents illegal copying on your LG devices.

Product Reliability

Antibacterial Properties Applied

Antimicrobial properties applied to Plastic Housing of LU766A series. It treated plastic housing conforms with ISO 22196 standard measuring antimicrobial activity that inhibits the growth of bacteria that may affect the plastic housing. Thus, it is necessary for enhanced Medical Environment(Medical Efficacy).

Product Reliability

Cleanliness, Safety and Convenience

LU766A series LCD panels are designed to be able to be cleaned orused thoroughly without issues, and the stylish, rounded corners of the TV reduce the possibility of injury due to accidental bumping into staff, patients or family visitors.

Product Reliability

Reliable Operation

Industrial panel located inside allows the product to sustain long operation hours. So, LG ARM TV is a reliable TV solution that can be used in hospital environment without a need for addressing unexpected fault.

Mounts Compatibility / Replaceable Headphone Jack1

Ease of Use

Mounts Compatibility / Replaceable Headphone Jack

It can be attached to most of existing Vesa Mount, and thus it is so easy for anybody to install and manage the product. In addition, headphone jack on the rear side is a modular type and is replaceable. Thus, it is considered a good point for compatibility and simpler maintenance.

Panel

Screen Size

15.6"

Backlight Type

LED (Direct)
Resolution

1,920 x 1,080 (FHD)

Brightness (Set, Typ, cd/m2)

250

Broadcasting System

Analog

? (PAL/SECAM)

Digital

?

Video

XD Engine

?

Aspect Ratio

? 6 modes (16:9, Original, Full Wide, 4:3,Vertical Zoom, All-Direction Zoom)

Audio

Audio Output

1W + 1W

Speaker System

2.0 ch
Sound Mode

? 7 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)

Clear Voice

? (Clear Voice III)

Hospitality Solution

Solution Type

Pro:Centric (Smart, V, Direct)

Data Streaming (IP & RF)

?
RF

? (1 Tuner)

HCAP (GEM/FLASH/HTML)
※ Service Carousel (TLL/XML)

?
Pro:Centric Application (version)

?

DRM

Pro:Idiom

Feature

Hospitality

Hotel Mode / PDM / Installer Menu, Lock mode (Limited), Welcome Screen, Insert Image, One Channel Map, Instant ON, Full Touch Screen (P-Cap), Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care, Healthcare Headphone Mode, Protection Cover (Glass), Plastic housing with Antibacterial Properties

Jack Interface

Set Side

CI Slot

Set Rear

RF In (2), HDMI/HDCP Input, USB, RS-232C(phone), Headphone Out, RJ45 (Enthernet), Debug (Phone Jack Type), Adapter Jack

Dimension(Unit: mm)

Vesa

75 x 75

W x H x D / Weight (with stand)

-
W x H x D / Weight (without stand)

391.4 x 278.6 x 46.1 / 2.7 kg

W x H x D / Weight (Packing)

470 x 356 x 201 / 3.6 kg (without stand)

Power(Unit : Watts)

Voltage, Hz

100 ~ 240V, 50/60Hz

Typical

TBD
Stand-by

0.3W ↓

General

Region

Europe

Dimension
- [Dimension] 15LU766A (EU).dwg
- [Dimension] 15LU766A (EU).pdf
Datasheet
- LU766A_EU_Preview_180905.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
