    Fan BLDC Motor

    LG’s high-efficiency BLDC fan motors are designed for diverse HVAC applications, including indoor and outdoor air conditioner units.

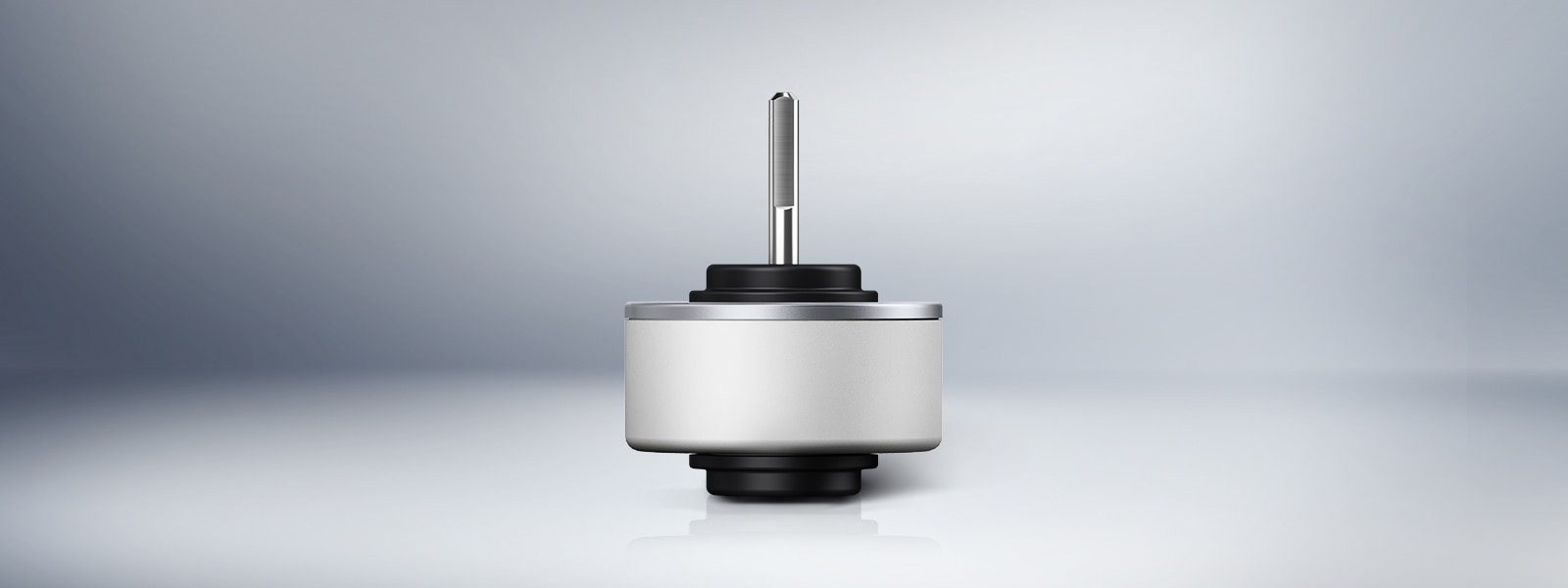

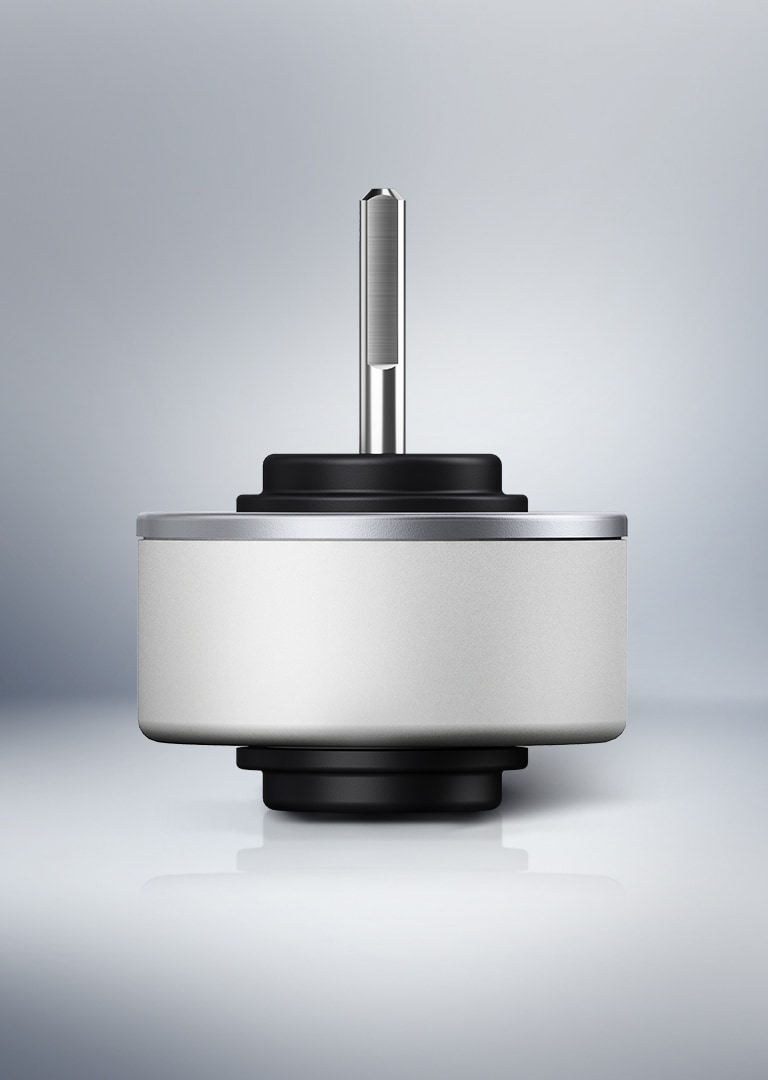

    Front-facing view of an LG BLDC fan motor component on a reflective surface, showcasing the rotor shaft and cylindrical housing. Front-facing view of an LG BLDC fan motor component on a reflective surface, showcasing the rotor shaft and cylindrical housing.

    What is Fan BLDC Motor?

    Exploded horizontal view of an LG fan BLDC motor, displaying internal components and design optimized for torque and efficiency. Exploded horizontal view of an LG fan BLDC motor, displaying internal components and design optimized for torque and efficiency.

    Fan BLDC Motor

    Fan BLDC Motor is brushless DC motors designed to power air movement in HVAC systems. They offer efficient operation, stable torque, and flexibility across various fan applications.

    Key Features

    LG Fan Motor offers efficient airflow, low-noise performance, and long-term reliability—powered by innovative rotor and control technologies.

    • Smaller, Swifter, Stronger

    • Smooth & Quiet Operation

    • Electrical Damage Prevention

    Smaller, Swifter, Stronger

    By evolving from surface-mounted to interior magnets—first bar, then arc types—LG’s rotor structure has increased magnetic flux by 75% and reduced volume by 46%. This advancement supports the development of more compact and efficient fan motors.
    Animated sequence showing the horizontal evolution of an LG fan motor rotor through three stages, highlighting improved efficiency and compact design. Animated sequence showing the horizontal evolution of an LG fan motor rotor through three stages, highlighting improved efficiency and compact design.
    * All performance comparisons of flux and volume are relative to the Surface Permanent Magnet structure.

    Smooth & Quiet Operation

    LG’s arc-type rotor with 10 poles helps the fan motor run more smoothly and quietly by reducing magnetic resistance. It also uses 180° conduction control to lower vibration and noise during operation.
    Visual comparison of conventional and 2nd-gen rotors showing reduced torque ripple, indicating lower noise with improved rotor design. Visual comparison of conventional and 2nd-gen rotors showing reduced torque ripple, indicating lower noise with improved rotor design.

    Electrical Damage Prevention

    To prevent electrical damage, LG’s fan motor applies a protective resin between the bearing’s outer and inner rings. This layer blocks electric current flow, helping avoid sparking and metal fusion that can lead to serious damage.

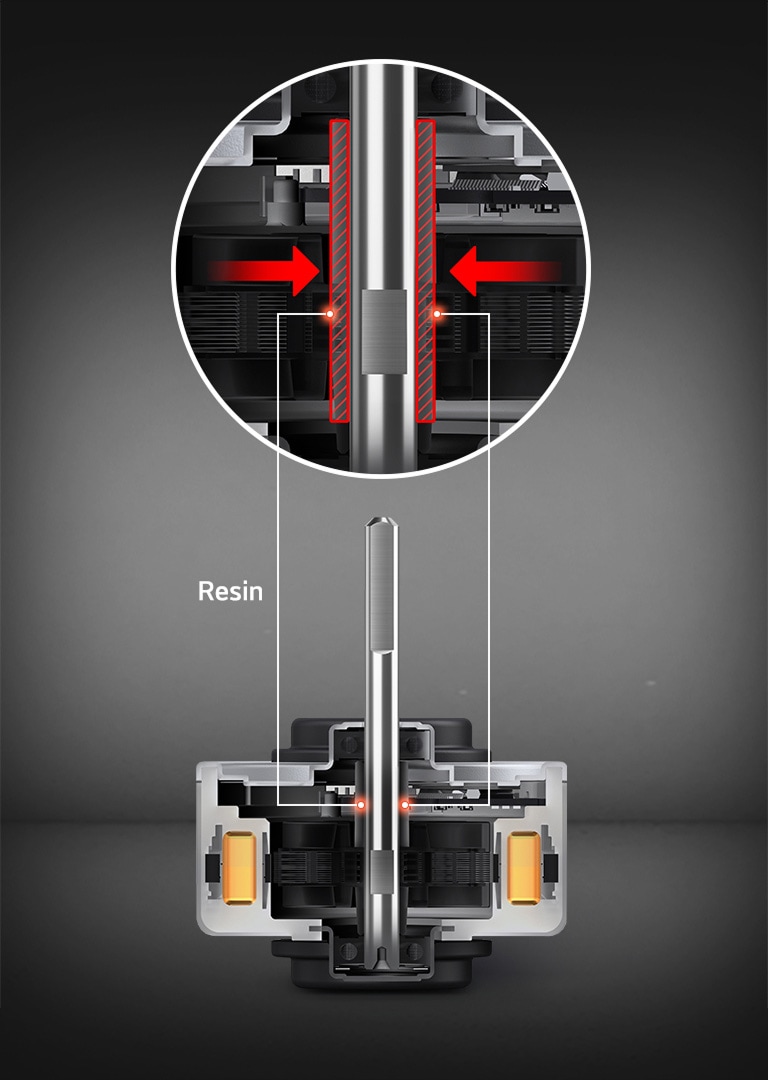

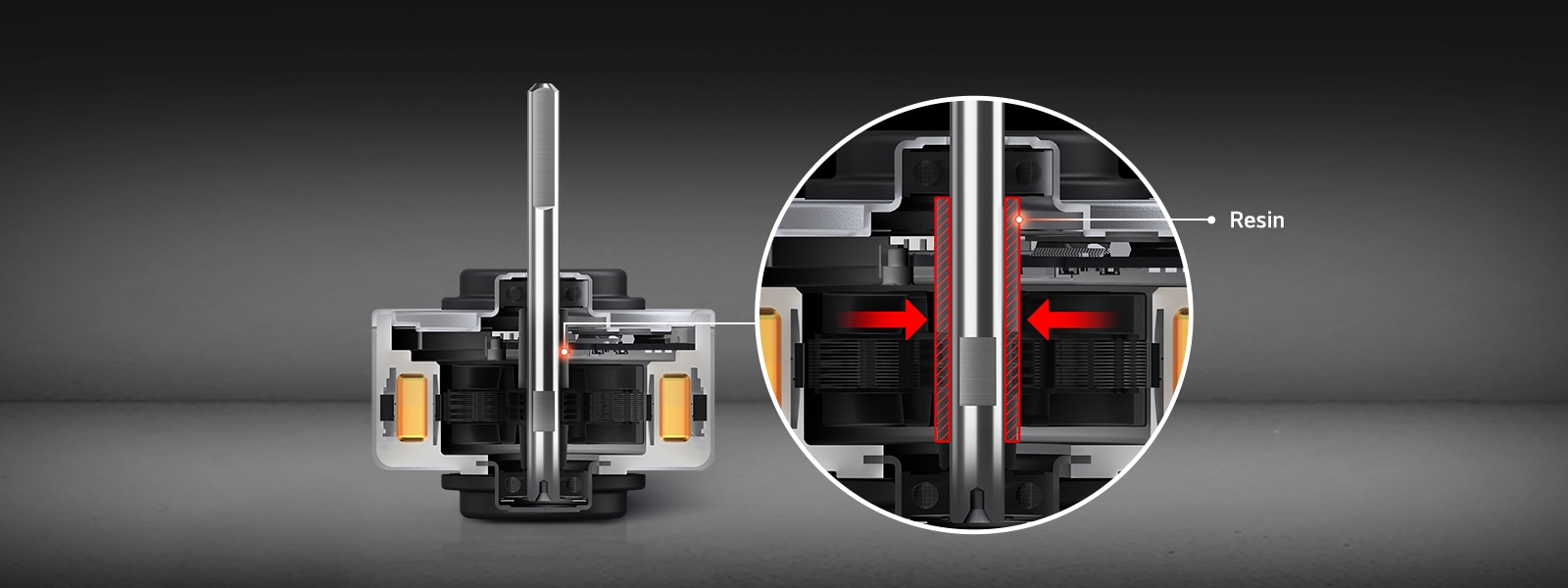

    Cross-sectional view of an LG fan motor with highlighted resin layer between bearing rings, designed to block electric current and prevent electrical damage. Cross-sectional view of an LG fan motor with highlighted resin layer between bearing rings, designed to block electric current and prevent electrical damage.

    Applications

    Find out about the various applications of the LG Fan BLDC Motor.
    Air Conditioning Indoor Unit image

    Air Conditioning
    Indoor Unit

    Ceiling Cassette image

    Ceiling Cassette

    Air Conditioning Outdoor Unit image

    Air Conditioning
    Outdoor Unit

    Product Specifications

    Collapse All
    Spec Detail
      20~55W 30~45W 70W 85~150W
    LG Fan motor with a golden circular housing, protruding shaft, and connected wires (20–30W)
    LG Fan motor with a star-shaped housing and central shaft (30–45W)
    LG Fan motor with a star-shaped housing and central shaft (30–45W)
    High-power LG Fan motor with a gray cylindrical housing and protruding shaft (85–150W)
    Features
    Model ADB0030Y*M, ADB0040Y*M, ADB0055Y*M ADB0043Y*M ADB0070Y*M ADB0124Y*M
    Application Indoor Unit, Air Purifier, Fan Coil Outdoor Unit Window type Outdoor Unit, Ceiling Cassette
    Drive Built-in, External External External External
    Insulation Class B,E Class E Class E Class E
    Certification UL, CCC, CE - UL -
    Collapse All
    Spec Detail


    Features
    Model
    Application
    Drive
    Insulation
    Certification
    Spec Detail
    20~55W 30~45W 70W 85~150W
    LG Fan motor with a golden circular housing, protruding shaft, and connected wires (20–30W)
    LG Fan motor with a star-shaped housing and central shaft (30–45W)
    LG Fan motor with a star-shaped housing and central shaft (30–45W)
    High-power LG Fan motor with a gray cylindrical housing and protruding shaft (85–150W)
    ADB0030Y*M, ADB0040Y*M, ADB0055Y*M ADB0043Y*M ADB0070Y*M ADB0124Y*M
    Indoor Unit, Air Purifier, Fan Coil Outdoor Unit Window type Outdoor Unit, Ceiling Cassette
    Built-in, External External External External
    Class B,E Class E Class E Class E
    UL, CCC, CE - UL -

    FAQs

    Q.
    What is a Fan BLDC Motor?
    A.
    A BLDC (Brushless DC) motor is an energy-efficient motor commonly used in HVAC systems. It runs quietly, uses less power, and offers longer-lasting performance.
    Q.
    How is a Fan BLDC Motor different from a traditional motor?
    A.
    Unlike traditional brushed motors, a Fan BLDC Motor uses electronic control instead of brushes. This reduces noise, increases efficiency, and extends motor lifespan—ideal for modern HVAC systems.
    Q.
    How does a fan motor support stable airflow in HVAC systems?
    A.
    A reliable fan motor keeps airflow steady, helping regulate indoor temperature, save energy, and improve HVAC performance. LG’s fan motor maintains consistent rotation for efficient air circulation.

    Catalogue & Leafelt Download


    Title , Size Table List
    Type Title Size
    Catalogue / Leaflet LG_Fan_Motor_Leaflet.pdf File PDF4,253K
    Please inquire to buy for more information on the product and we will get in touch with you.
    Contact Us
    *Some images are simulated for illustrative purpose only.
    The mentioned applications are primarily used examples.
