    EC Motor

    LG's Electronically Commutated (EC) Motor is designed for use in a variety of HVAC applications.

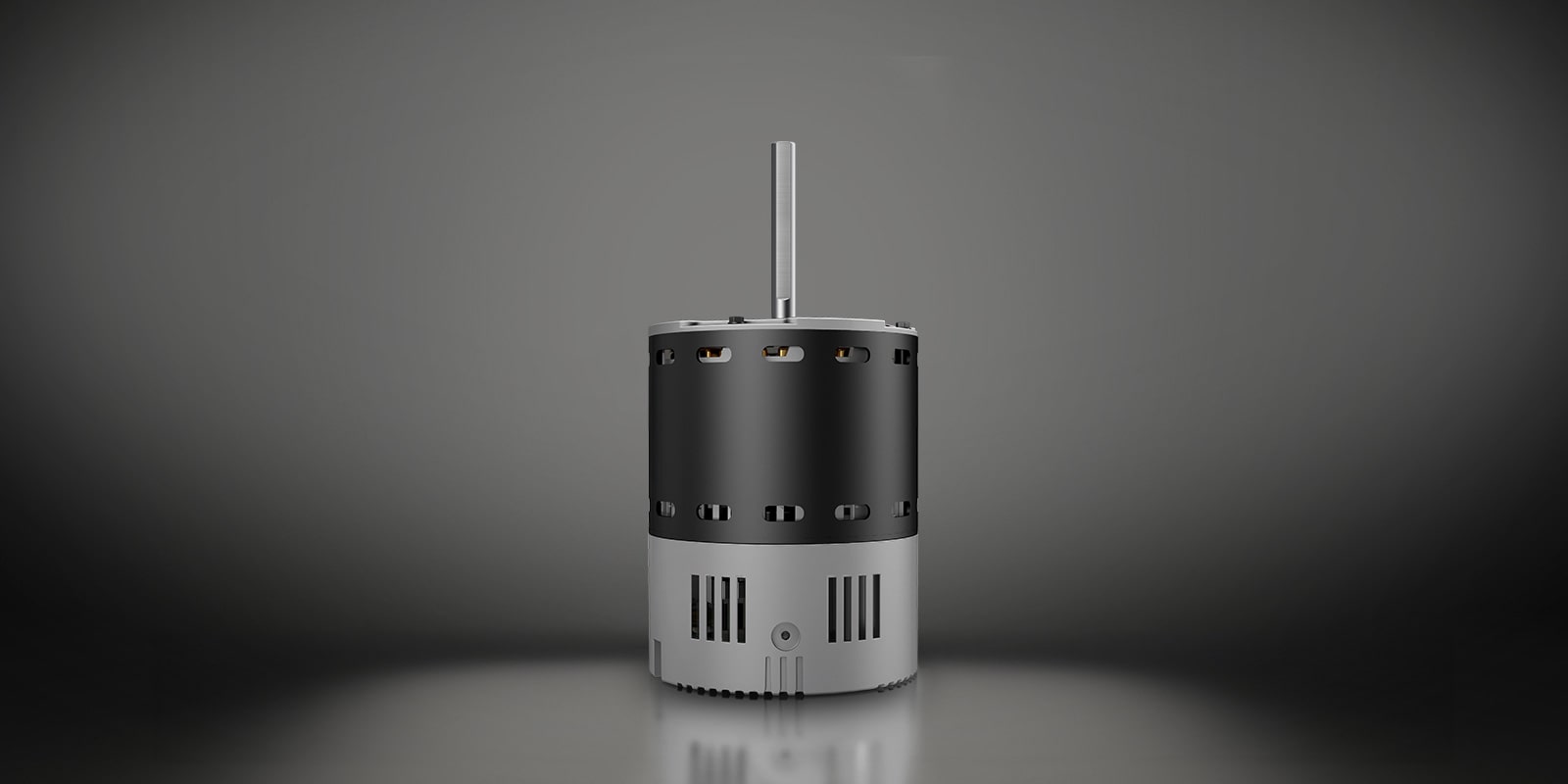

    Front-facing view of an LG EC motor component on a flat surface, highlighting its metallic cylindrical body, central output shaft, and black top housing with visible wiring connector. Front-facing view of an LG EC motor component on a flat surface, highlighting its metallic cylindrical body, central output shaft, and black top housing with visible wiring connector.

    What is EC Motor?

    The EC Motor operates across a 1/3 to 1HP range, suitable for HVAC systems such as condensing units, air handlers, furnaces, and ventilation.
    WATCH VIDEO
    Compressors and Motors from LG are lined up in a row against a dark background. Compressors and Motors from LG are lined up in a row against a dark background.

    Key Features

    From reduced size to lower noise and consistent airflow, the EC Motor is engineered to enhance HVAC operation and comfort.

    • Sized Down. Powered Up

    • Less Vibration. Less Noise

    • Engineered for Dual Voltage

    Sized Down. Powered Up

    By applying a spoke-type concentrated flux rotor design, LG’s EC Motor achieves similar operational efficiency while reducing weight by up to 28.6%. This design contributes to more efficient material usage and supports optimized system functionality.
    Comparison of conventional and spoke-type EC motor rotors, showing reduced volume and increased magnetic flux with LG’s advanced spoke-type rotor design. Comparison of conventional and spoke-type EC motor rotors, showing reduced volume and increased magnetic flux with LG’s advanced spoke-type rotor design.

    Less Vibration. Less Noise

    With reduced magnetic pull variation, LG's EC Motor is designed for quieter operation, utilizing a spoke-type design and improved airflow control.

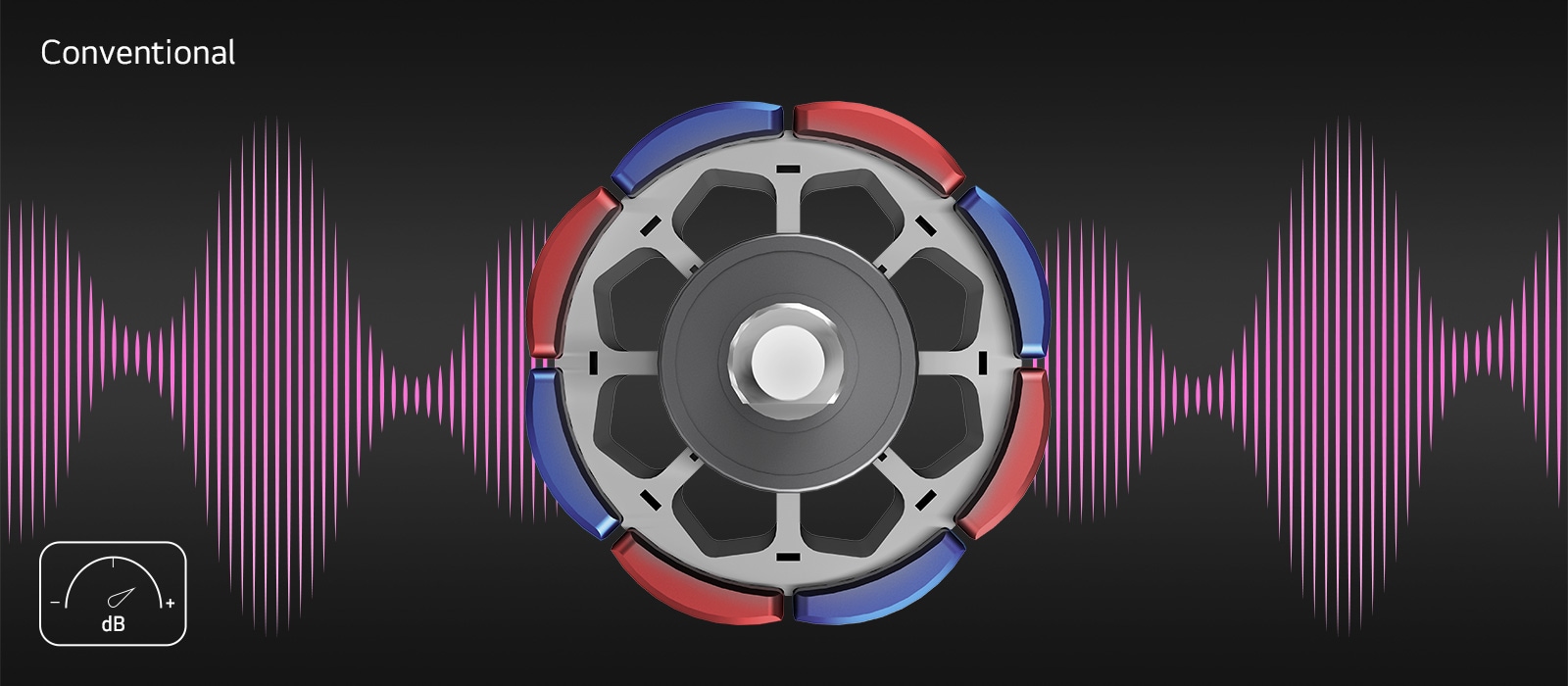

    Front-facing view of a conventional motor emitting large, uneven sound waves, representing high noise levels during operation.

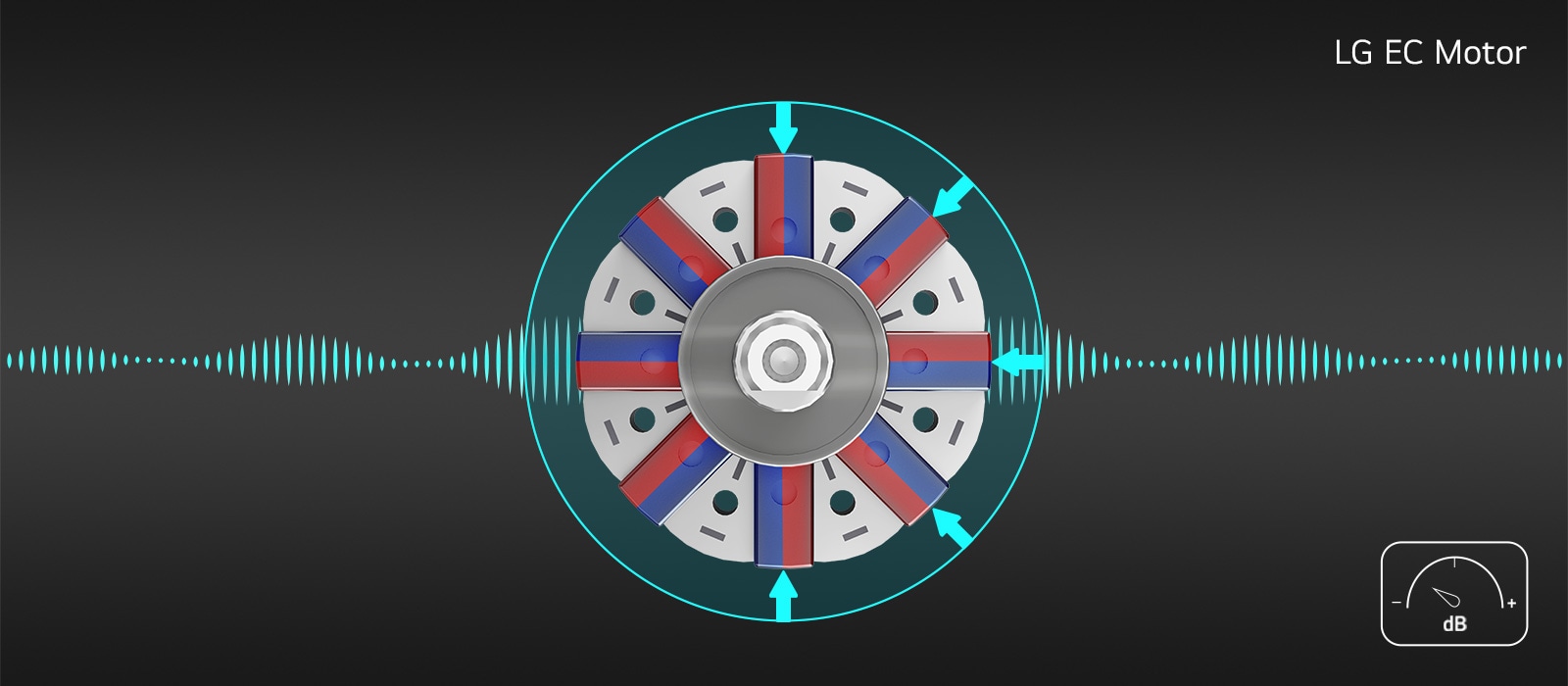

    Front-facing view of the LG EC Motor rotor emitting smaller, more uniform sound waves, highlighting its quieter performance and reduced noise.

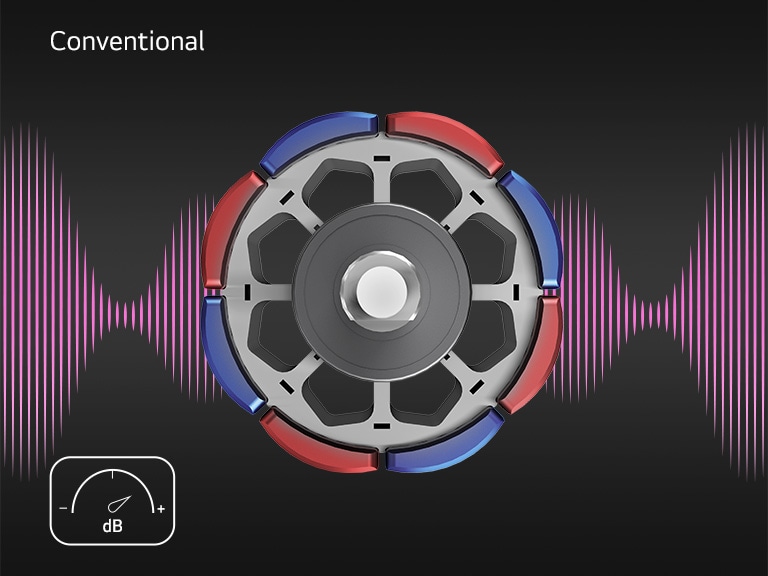

    Front-facing view of a conventional motor emitting large, uneven sound waves, representing high noise levels during operation.

    Front-facing view of the LG EC Motor rotor emitting smaller, more uniform sound waves, highlighting its quieter performance and reduced noise.

    Engineered for Dual Voltage

    The LG EC Motor operates on both 115V and 230V power supplies with no need for manual switching offering seamless integration across HVAC systems.

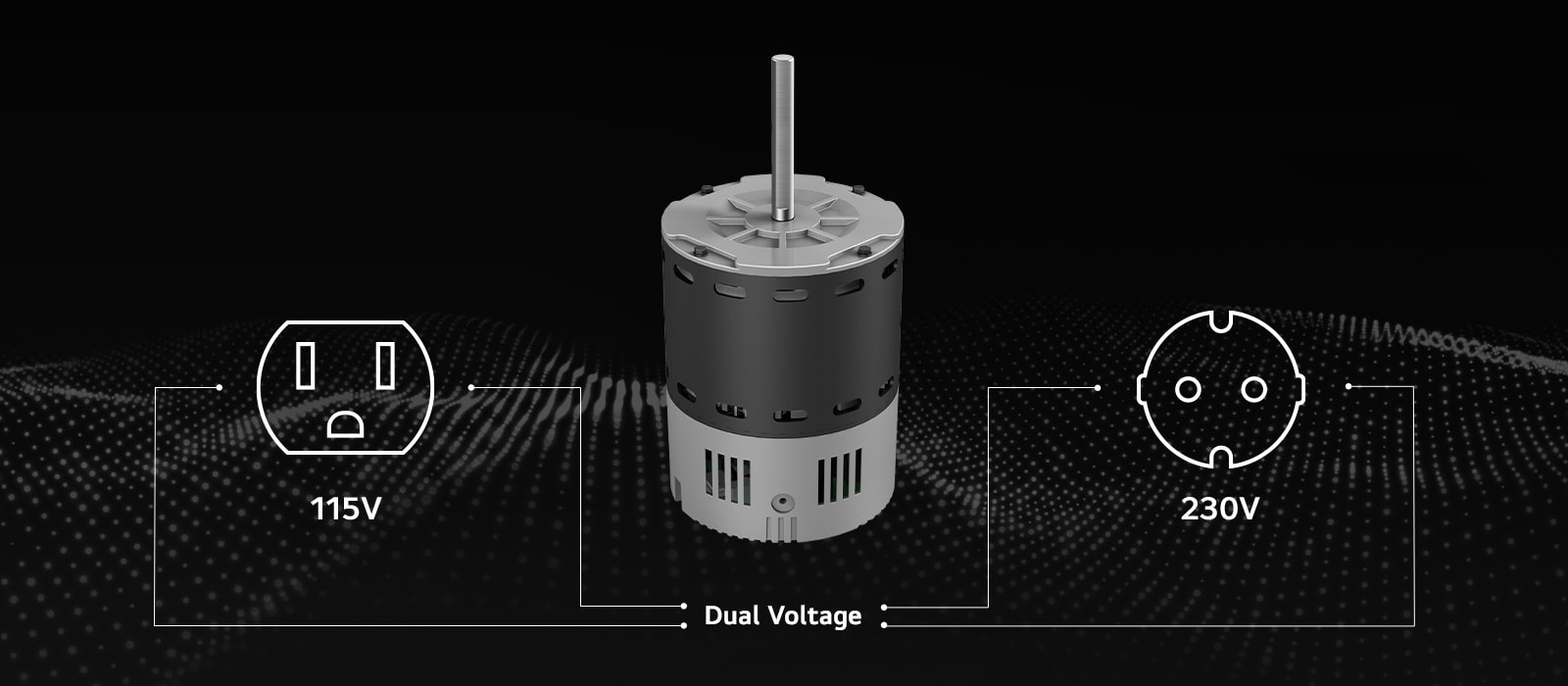

    Front view of an LG EC Motor positioned between 115V and 230V outlet icons, illustrating its dual voltage compatibility for flexible HVAC system integration. Front view of an LG EC Motor positioned between 115V and 230V outlet icons, illustrating its dual voltage compatibility for flexible HVAC system integration.

    Applications

    Find out about the various applications of the LG EC Motor.
    Air Handler image

    Air Handler

    Furnace image

    Furnace

    Air Conditioner image

    Air Conditioner

    Product Specifications

    Collapse All
    Spec Detail
      Indoor Outdoor for
    Residential    		 Outdoor for
    Commercial
    Indoor EC motor with 1/3 to 1 HP range, UART and TAP communication, 115/230V dual voltage.
    Outdoor EC motor for residential use, 1/3 or 1/2 HP, with PWM and TAP settings, 230/460V.
    Outdoor EC motor for commercial use, 1/3 or 1/2 HP, with PWM and TAP settings, 230/460V.
    Features
    Capacity (HP) 1/3, 1/2, 3/4, 1 1/3, 1/2 1/3, 1/2
    Communication UART, TAP Setting (5pin) PWM, TAP Setting (max 18 taps) PWM, TAP Setting (max 18 taps)
    RPM 200 ~1,800 200 ~1,250 200 ~ 1,250
    Voltage 115, 230V 230V, 460V 230V, 460V
    Dual Voltage Y N N
    Collapse All
    Spec Detail


    Features
    Capacity (HP)
    Communication
    RPM
    Voltage
    Dual Voltage
    Spec Detail
    Indoor Outdoor for
    Residential    		 Outdoor for
    Commercial
    Indoor EC motor with 1/3 to 1 HP range, UART and TAP communication, 115/230V dual voltage.
    Outdoor EC motor for residential use, 1/3 or 1/2 HP, with PWM and TAP settings, 230/460V.
    Outdoor EC motor for commercial use, 1/3 or 1/2 HP, with PWM and TAP settings, 230/460V.
    1/3, 1/2, 3/4, 1 1/3, 1/2 1/3, 1/2
    UART, TAP Setting (5pin) PWM, TAP Setting (max 18 taps) PWM, TAP Setting (max 18 taps)
    200 ~1,800 200 ~1,250 200 ~ 1,250
    115, 230V 230V, 460V 230V, 460V
    Y N N
    * The RPM may differ depending on the specific model.

    FAQs

    Q.
    What is the working principle of an EC Motor?
    A.
    An EC (Electronically Commutated) motor works by converting electrical energy into mechanical energy through built in electronics that control speed and torque. It uses back EMF or sensors to adjust performance and maintain constant airflow efficiently.
    Q.
    What is an EC Motor used for in HVAC systems?
    A.
    In HVAC, EC Motors are used in condenser fans, blowers, furnaces, and air handling units. LG EC Motors provide quiet, energy efficient operation in systems ranging from 1/3HP to 1HP.
    Q.
    How does an EC motor maintain constant airflow?
    A.
    An EC Motor maintains constant airflow by adjusting speed and torque based on static pressure changes using internal control algorithms, ensuring stable air delivery.
    Q.
    What are the benefits of using an EC motor in HVAC?
    A.
    EC motors offer energy savings, quieter operation, longer lifespan, and precise airflow control making them ideal for modern, high efficiency HVAC systems.
