    Discontinued
    55LX761H (ASIA) component-copyModelName

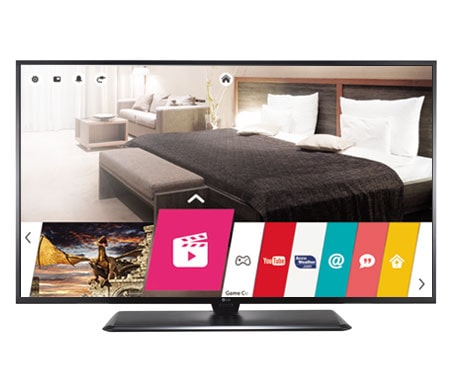

    55'' Pro:Centric Hotel TV

    Key Features

    Choose your Size

    component-OBScountrySelectDesc

    55" Pro:Centric Hotel TV
    LCD Panel Specification
    • Backlight Type
      Edge
      Cinema 3D
      -
    • Resolution
      1,920 x 1,080 (FHD)
      Brightness (cd/m2)
      330
    Broadcasting System
    • Analog
      PAL/NTSC-M
      Terrestrial
      DVB-T2
    • Cable
      DVB-C (Phllipines : 6MHz available)
      Satellite
      NZ, VN only
    Video
    • Real Cinema 24p (3:3 Pull down)
      Yes
      Aspect Ratio
      8 modes (16:9, Just scan, Original, Full Wide, 4:3, 14:9, Cinema Zoom 1, Zoom)
    Audio
    • Audio Output
      10W + 10W
      Wireless Sound Sync
      -
    Feature
    • Pro:Centric
      Yes (Smart)
      Pro:Idiom
      Yes
    Interface - Set Side
    • Headphone Out
      1
      RF In
      -
    • AV in
      -
      S-Video In
      -
    • RGB In (D-sub 15pin)
      -
      Component In (Y,Pb,Pr)
      -
    • HDMI In (HDMI1.4)
      1
      USB (2.0)
      2
    • CI Slot
      1
      IR Out
      -
    Interface - Set Rear
    • RF In
      2
      AV In
      1 (RCA type)
    • AV Out
      -
      S-Video In
      -
    • Full Scart
      -
      Component in (Y,Pb,Pr) + Audio
      1
    • Digital Audio Out (Coaxial / Optical)
      1 (Optical)
      HDMI (HDMI1.4) / HDCP Input
      1
    • USB 2.0
      -
      RGB In (D-sub 15pin) - PC
      -
    • PC Audio Input
      1 (Commonly used w/AV)
      RS-232C (D-sub 9pin)
      1
    • Headphone Out
      -
      Clock Interface
      -
    • LAN Port
      2
      RJ45 (RJP interface)
      -
    • External Speaker Out (3.5mm phone jack)
      2 (Spk-out 1, Vol. Control 1)
      TV link Configuration (phone jack type)
      -
    Power
    • Voltage, Hz
      100 ~ 240V, 50/60Hz
      Typical (Watts)
      98.6W
    Tool Description
    • Swivel (angle)
      Yes (± 20 degrees)
      VESA Compatibility
      300 X 300
    Required Listing(Certification)
    • Safety
      CB, BIS, SIRIM, TISI, BPS, PSB, SNI
      EMC
      CISPR
    • ETC.
      MEPS, Tick, EE, CIF, BEE, Freeview NZ
    Dimension
    • Set Size (W/O Stand, WxHxD, mm)
      1,242 X 724 X 37 (SPK 55.1)
      Set Size (With Stand, WxHxD, mm)
      1,242 X 780 X 325
    General
    • Region
      ASIA
    • Dimension
      • [Drawing] LX761H_32LF63_with commercial stand_Asia.dwg
      • [Drawing] LX761H_43LF63_with commercial stand_Asia.dwg
      • [Drawing] LX761H_49LF63_with commercial stand_Asia.dwg
      • [Drawing] LX761H_55LF63_with commercial stand_Asia.dwg
      • [Drawing] LX761H_32LF63_with commercial stand_Asia.pdf
      • [Drawing] LX761H_43LF63_with commercial stand_Asia.pdf
      • [Drawing] LX761H_49LF63_with commercial stand_Asia.pdf
      • [Drawing] LX761H_55LF63_with commercial stand_Asia.pdf
    • Datasheet
      • [Leaflet] LX761H_Asia_151217.pdf
    • Software

      To download Software, Please visit the Software Download Page (Click).

    • Manual

      To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
