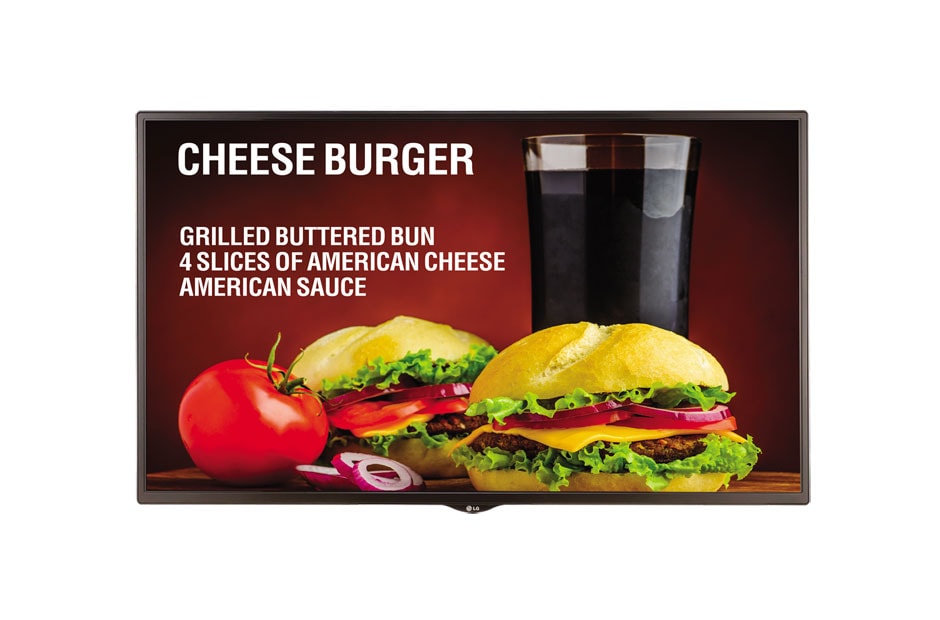

43SM5KC Copy Model Name

SM5KC Series

Discontinued

43SM5KC Copy Model Name

SM5KC Series

Key Features

Brightness : 450 cd/m2
Bezel : Top/Left/Right 11.9 mm (Bottom 18.0 mm)
Depth : 38.6 mm
Interface : HDMI, DVI, DP, RGB, RJ45, IR, RS232C, SD Card, USB
Built-in Speaker : 10W + 10W

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness : 450 cd/m2
Bezel : Top/Left/Right 11.9 mm (Bottom 18.0 mm)
Depth : 38.6 mm
Interface : HDMI, DVI, DP, RGB, RJ45, IR, RS232C, SD Card, USB
Built-in Speaker : 10W + 10W

Add to Compare

component-OBScountrySelectDesc

The model name has been copied.

SM5KC Series

Smart Platform

Quad Core SoC*

The high-performance SoC can execute several tasks at the same time and provides smooth content playback.

Smart Platform

webOS 3.0

The webOS 3.0 platform provides powerful and convenient creation tools, including app development materials.

Smart Platform

Group Manager

Content can be created, distributed and controlled by a signage without a dedicated PC or server.

PBP (Picture-By-Picture) / PIP (Picture-In-Picture)1

Smart Platform

PBP (Picture-By-Picture) / PIP (Picture-In-Picture)

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) features enable you to compose various layouts for several digital devices.

Support Network Protocol

IP Streaming Protocol

Various types of IP video streaming protocol
are supported, such as RTSP/RTP, MMS, HLS
and MPEG-2 TS*.

Support Network Protocol

Secure Communication Protocol

By supporting HTTPS* protocol, communication between server and signage is more secure.

Support Network Protoco

Proxy Server

Web access speed and security can be improved by supporting Proxy Server (A server that acts as an intermediary for requests from clients seeking resources from other servers.)

Built-in Wi-Fi

Mirroring

Content sharing is more convenient
on a Wi-Fi network.

Built-in Wi-Fi

Soft AP

The SM5KC with Soft AP software can operate as a wireless access point for mobile devices.

Built-in Wi-Fi

Simple Installation

Installation has been simplifi ed by removing the external media player and Ethernet / RS232C cables.

Supportive Convenience

BEACON
With BEACON and Bluetooth Low Energy (BLE) supported by SM5KC*, retail stores can provide coupons and information in real time.

Industrial Design

Detachable logo
The detachable logo allows for installation in the desired orientation : landscape or portrait mode.

Enhanced Maintenance

Dust & Humidity Protection
Circuit board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.

Panel

Screen Size

43"

Resolution

1,920 x 1,080 (FHD)
Brightness

450

Orientation

Portrait & Landscape

Connectivity

Input

HDMI, DP, DVI-D, RGB, Audio, SD card

Output

DP, Audio
External Control

RS232C in/out, RJ in, IR Receiver, Pixel Sensor, USB 3.0, SD Card

Physical Specification

Bezel Width

11.9 mm (T/R/L), 18 mm (B)

Monitor Dimension (W x H x D)

969.6 x 563.9 x 38.6 mm
Weight (Head)

9.8 kg

VESA? Standard Mount Interface

200 x 200 mm

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power
Power Switch

No

Power Consumption

Typ.

75 W

Smart Energy Saving

55 W

Standard(Certification)

Safety

UL / cUL / CB / TUV / KC

EMC

FCC Class "A" / CE / KCC
ErP / Energy Star

N/A / Yes (Energy Star 7.0)

Audio Power

20 W (10 W x 2) for Internal Speaker (6 ohm)

Media Player Compatibility

OPS type compatible

Yes

External Media player Attatchable

Yes (MP500/MP700)

Software Compatibility

SuperSign-w lite

Yes

SuperSign-c

Yes

Accessory

Basic

Remote Controller (included 2ea batteries), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory cover

Optional

Speaker (SP-5000), Stand (ST-432T), Pixel sensor (KT-SP0), Media player, Wall bracket (LSW230B), VESA Adapter (AM-B220S), OPS Kit (KT-OPSA), HDBaseT (EB-B100)

Dimension
- 43SM5KC.dwg
- 43SM5KC.pdf
Datasheet
- SM5KC_low.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
