    Discontinued

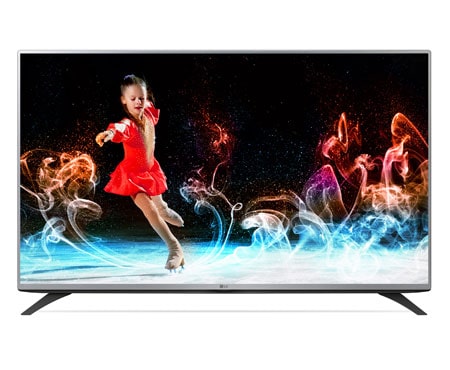

    49LX310C (NA) component-copyModelName
    LX310C Series

    Key Features

    component-OBScountrySelectDesc

    LX310C Series
    LCD Panel Specification
    • Backlight Type
      Direct LED
      Cinema 3D
      -
    • Resolution
      1,920 X 1,080 (FHD)
      Brightness (cd/m2l, Typ)
      200
    Broadcasting System
    • Analog
      NTSC
      Terrestrial
      VSB
    • Cable
      Clear QAM
      Satellite
      -
    Video
    • Real Cinema 24p (3:3 Pull down)
      Yes
      Aspect Ratio
      6 modes (16:9, Just scan, Set by program, 4:3, Zoom, Cinema zoom1)
    Audio
    • Audio Output
      5W + 5W
      Wireless Sound Sync
      -
    Feature
    • Pro:Centric
      -
      Pro:Idiom
      -
    Interface - Set Side
    • Headphone Out
      -
      RF In
      -
    • AV In
      -
      S-Video In
      -
    • RGB In (D-sub 15pin)
      -
      Component in (Y,Pb,Pr)
      -
    • PC Audio Input
      -
      HDMI In
      1
    • USB (2.0)
      1
      CI Slot
      -
    Interface - Set Rear
    • RF In
      1
      AV In
      1 (Share with Component)
    • AV Out
      -
      S-Video In
      -
    • Full Scart
      -
      Component in (Y,Pb,Pr) + Audio
      1
    • Digital Audio Out (Coaxial / Optical)
      1 (Optical)
      HDMI/HDCP Input
      1
    • USB 2.0
      -
      RGB In (D-sub 15pin) - PC
      1
    • PC Audio Input
      1 (Share with Component Audio)
      RS-232C (D-sub 9pin)
      1
    • Headphone Out
      -
      Clock Interface (D-sub 15pin)
      -
    • LAN Port
      -
      RJ45 (RJP interface)
      -
    • External Speaker Out(3.5mm phone jack)
      -
      TV link Configuration (phone jack type)
      -
    Power
    • Voltage, Hz
      100 ~ 240V, 50/60Hz
      Typical (Watts)
      34.4W
    Tool Description
    • Swivel (angle)
      -
      VESA Compatibility
      300 X 300
    Required Listing(Certification)
    • Safety
      UL
      EMC
      FCC
    • ETC.
      RoHS, cUL, NOM, Energy Star 7.0
    Dimension
    • WxHxD (w/o stand, mm)
      1,103 X 650 X 58.7
      WxHxD (with stand, mm)
      1,103 X 698 X 198
    General
    • Region
      North America
    • Dimension
      • [Drawing] 43LX310C(NA,SCA)_43LF54.dwg
      • [Drawing] 49LX310C(NA,SCA)_49LF54.dwg
      • [Drawing] 43LX310C(NA,SCA)_43LF54.pdf
      • [Drawing] 49LX310C(NA,SCA)_49LF54.pdf
    • Datasheet
      • [Leaflet] LX310C_SCA_151216.pdf
    • Software

      To download Software, Please visit the Software Download Page (Click).

    • Manual

      To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

    To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
