Key Features

Brightness(Typ.) : 500 cd/m2
Bezel : 11.9 mm (T), 12.4 mm (R/L), 15.5 mm (B)
Depth : 38.6 mm
Interface : HDMI(3)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR/ External Speaker Out
Haze 28%

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 500 cd/m2
Bezel : 11.9 mm (T), 12.4 mm (R/L), 15.5 mm (B)
Depth : 38.6 mm
Interface : HDMI(3)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR/ External Speaker Out
Haze 28%

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

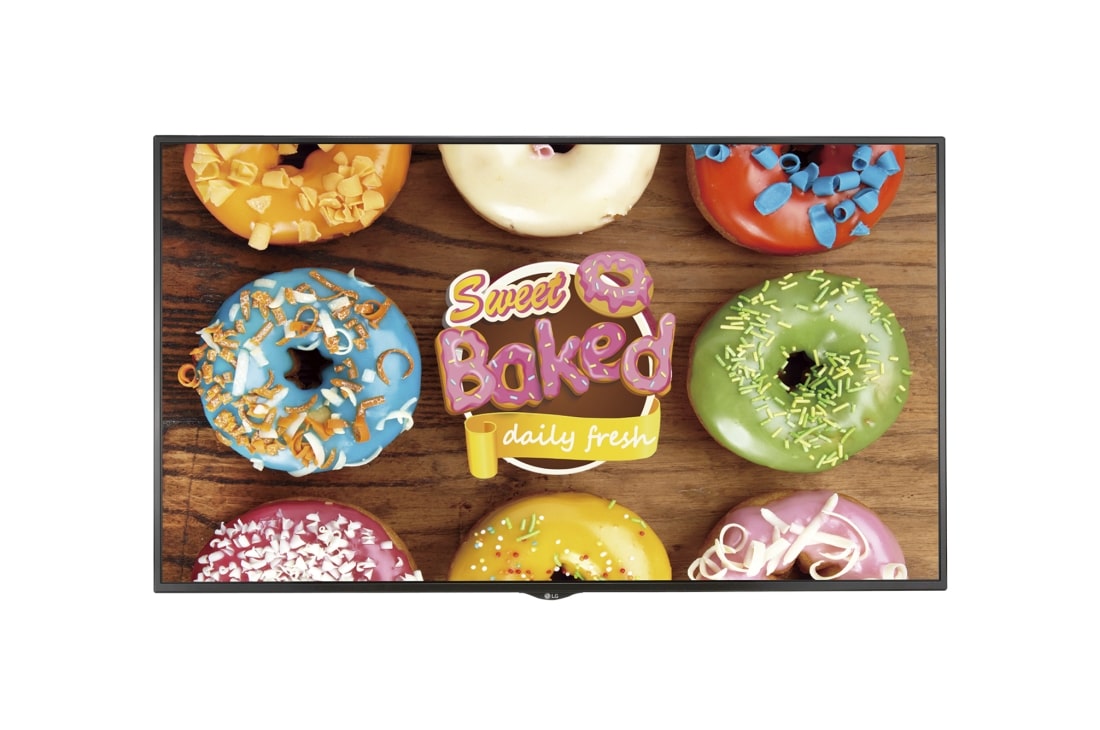

UH5E Series

Vibrant Colors and
Powerful Performance Bring Content

With superb picture quality and cutting-edge processing power, the UH5E series delivers a value-added visual experience without the need for peripherals. It delivers vivid content with no reflections, even under bright lights, enhancing its ability to capture the attention of passersby.

01_True_Color_Immersive_View_1551766170384

Superior Picture Quality

True Color, Immersive View

The UHD resolution delivers more detailed and vivid content without distortion, with four times higher definition than FHD. The UH5E series ensures stable UHD video playback by supporting HEVC^{(High Efficiency Video Coding)}

Superior Picture Quality

Clear View with Non-glare Coating

Viewers can easily become frustrated by unnecessary reflections when watching a screen under brightly lit conditions. The UH5E series has resolved this problem by increasing the haze value up to 28％, enhancing content visibility and text readability

03_Compatibility_with_AV_Control_System_1551766394913

High Compatibility

Compatibility with AV Control System

The UH5E series has been certified Crestron Connected^? for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

04_Compatibility_with_Video_Conference_System__1551825577567

High Compatibility

Compatibility with Video Conference System

For the optimum visual meeting, the UH5E series has certified its compatibility with Cisco Spark Room Kits, a system that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time to set up the picture quality or to change input on incoming calls.

Wireless Solution

Content Sharing

Content mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion

With Beacon and BLE^{(Bluetooth Low Energy)}, shop managers can provide coupons and information in real-time.
Wireless Access Point

The UH5E series operates as a virtual router which can be an wireless access point for mobile devices.

07_Real_Time_Monitoring_and_Control__1551825739137

Easy Maintenance

Real-Time Monitoring & Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple displays in different locations in realtime. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

08_Real_time_Care_Service__1551825793476

Easy Maintenance

Real-time Care Service

The maintenance gets easier and faster with an optional service Signage 365 Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.

09_Easy_Content_Management__1551825833645

Powerful webOS Smart Signage Platform

Easy Content Management

The embedded CMS^{(Content Management System)} allows you to create and edit content using internal or external sources as well as set playlists to play at the desired schedule without the need for a separate PC. Thanks to the intuitive GUI and a menu structure based on usage scenarios, content management has been made much easier.

10_Simple-Group-Management_txt_1553127100124

Powerful webOS Smart Signage Platform

Simple Group Management

The embedded Group Manager makes a master display work as a server and manage other displays* connected on the same network. This way you can group and control multiple displays in your place of business and distribute playlists to them all at once, using input devices such as a remote control.

11_Various_Sensor_Applications__1551825916783

Powerful webOS Smart Signage Platform

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in. The overall cost of ownership is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

Powerful webOS Smart Signage Platform

Multi Screen Mode

PBP^{(Picture-By-Picture)} features multi screen in a single display with upto 4 input sources while PIP^{(Picture-In-Picture)} supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content source.

Panel

Screen Size

49"

Native Resolution

3,840 x 2,160 (UHD, RGB)
Brightness(Typ.,cd/m2)

500

Surface Treatment (Haze)

Haze 28%

Connectivity

Input

HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)

Output

DP, Audio (Off/Fixed/Variable), External Speaker
External Control

RS232C In/out, RJ45 (LAN) In, IR In

Mechanical Specification

Bezel Width

11.9 mm (T), 12.4 mm (R/L), 15.5 mm (B)

Monitor Dimensions (W × H × D)

1,103.2 x 648 x 38.6 mm
Weight (Head)

13.3 kg

Carton Dimensions (W × H × D)

1,197 x 760 x 166 mm
Packed Weight

17.7 kg

VESA? Standard Mount Interface

300 x 300 mm

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ. / Max.

105 W / 150 W

Smart Energy Saving

74 W

Certification

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC
ErP / Energy Star

Yes (EU Only) / No

Media Player Compatibility

OPS type compatible

Yes

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control/Control+

Accessory

Basic

Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender

Optional

Speaker (SP-5200), Stand (ST-201T), Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSF)

General

Region

Global

Dimension
- [Dimension]49UH5E.dwg
- [Dimension]49UH5E.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
