Key Features

Brightness: 3,000 cd/㎡ (Typ.)
Life Time: 50,000 hours
Operation Temperature: -30°C to 50°C
IP56 Design
Interface: HDMI / DP / DVI-D / USB / External Speaker / RS232C / RJ45

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness: 3,000 cd/㎡ (Typ.)
Life Time: 50,000 hours
Operation Temperature: -30°C to 50°C
IP56 Design
Interface: HDMI / DP / DVI-D / USB / External Speaker / RS232C / RJ45

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

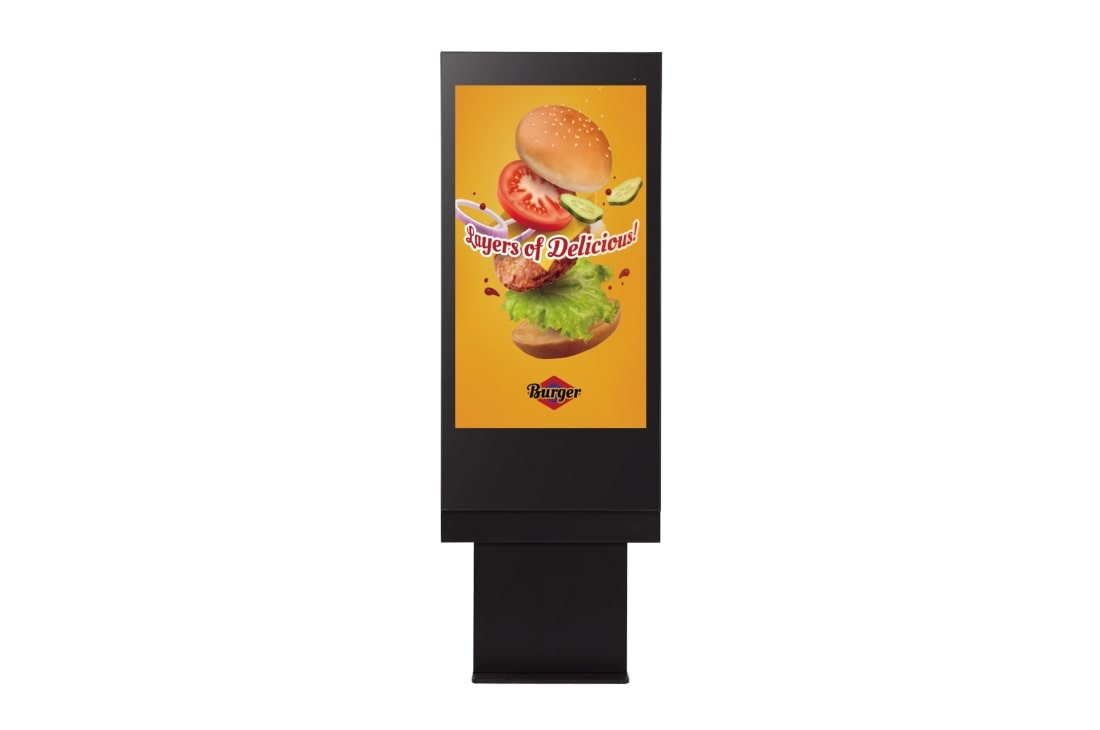

Outdoor Display

Outstanding Visibility

High Brightness

With a powerful brightness of 3,000 cd/㎡ and wide viewing angles, the XE series delivers content clearly and catches the attention of passersby no matter where they are, making it the ultimate display for outdoor visibility.

02_Visible-with-Polarized-Sunglasses_1522977552684

Outstanding Visibility

Visible with Polarized Sunglasses

QWP* enables clear visibility even when the viewer is wearing polarized sunglasses.

03_Smart-Brightness-Control_1522977610538

Outstanding Visibility

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

05_Secured-Protection-with-IP56-Design_1522977706144

Outdoor Reliability

Secured Protection with IP56 Design

The XE series is sealed with IP56 design for reliable operation. It's designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, an essential feature for outdoor application.

Outdoor Reliability

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on every major circuit board eliminates such circumstances by protecting it against dust, iron powder, humidity, etc.

Outdoor Reliability

Electrical Safety

Circuit breaker and surge suppressor are integrated inside ensuring absolute protection from overcurrent short circuits, and unwanted voltages. This type of integration establishes preventative solutions for signage's from having future damages.

Outdoor Reliability

Protective Glass

Tempered and laminated front glass ensures optimum protection, from outdoor extremities allowing minimal to no damage from external impacts.

09_Wide-Range-of-Operating-Temperature_1522977925482

Outdoor Reliability

Wide Range of Operating Temperature

The panel offers superb reliablity under a wide range of operating temperatures, so the XE series requires fewer constraints for outdoor installation.

13_Optional-Configuration_R_1522979013080

Easy Management

Optional Configuration

Optional stand accessories are provided to allow panel to stand freely on the ground and facilitate easy cable management. As for 49XEB3E, the exclusive stand for 1x3 configuration is also available to meet various business requirements.

11_Replaceable-Front-Glass_1522978036319

Easy Management

Replaceable Front Glass

The outdoor display is exposed and is a high risk for vandalism. The protective glass of 49XEB3E can be detached from its main body which allows for an instant replacement on site.

Panel

Screen Size

49"

Resolution

1,920 x 1,080 (FHD), M+ (WRGB)
Brightness (Typ., cd/m2)

3000

Connectivity

Input

HDMI, DP, DVI-D, Audio In, USB 3.0

Output

DP, External Speaker Out
External Control

RS232C in/out, RJ45 in

Physical Specification

Front glass

6.8 mm (AR, Tempered & Laminated Glass)

Bezel Width

103.0 mm (T), 262.0 mm (B), 46.5 mm (L/R)
Monitor Dimension (W x H x D)

701 x 1,445 x 180.9 mm

Weight (Head)

58.6 kg
Monitor with Optional Stand Dimensions (W x H x D)

745 x 1,980x 321 mm (TBD)

Weight (Head+Stand)

100 kg(TBD)
Packing Dimensions (W x H x D)

863 x 1,624 x 333 mm

Packed Weight

73.4 kg

Environment Conditions

Operation Temperature

-30°C to 50°C

Operation Humidity

5% to 100%
Dust / Water Proofing

IP56

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ./Max

270 W / 400 W

Smart Energy Saving

145 W

Standard(Certification)

Safety

UL / cUL / CB

EMC

FCC Class "A" / CE / KCC
ErP / Energy Star

Yes (EU Only) / No

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Link

Accessory

Basic

Remote Controller, Manual (EIG, ESG), Regulation Book, Phone to RS232C Gender, USB Cable, HDMI Cable

Optional

Enclosure Stand (ST-491X, ST-493X), Circuit Breaker & Surge Suppressor (KT-PS)
