    49VL5G component-copyModelName
    49'' 500 nits FHD Slim Bezel Video Wall

    Key Features

    Choose your Size

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (49VL5G)
      $
      $
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (49VL5G)
      $
      $
      LG Members Price
    Total
    49'' 500 nits FHD Slim Bezel Video Wall
    Contact Us

    Incredible Immersion with
    Ultra-Narrow Bezel

    A man is looking at a big screen attached to the window of a sports store. A man is looking at a big screen attached to the window of a sports store.
    * All images in this web page are for illustrative purposes only.
    The ultra-narrow bezel screens are attached to the wall in the form of tiles, displaying large and dynamic content. The ultra-narrow bezel screens are attached to the wall in the form of tiles, displaying large and dynamic content.

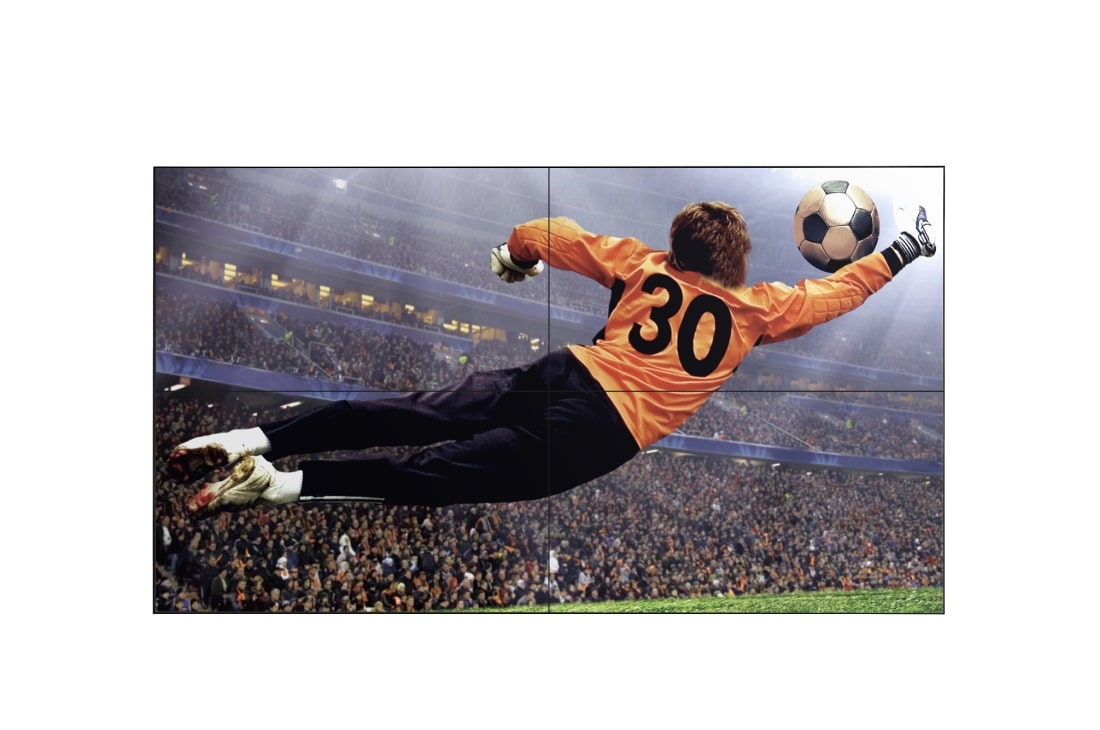

    Seamless Large Screens with Ultra-Narrow Bezel

    The ultra-narrow bezel creates a visually stunning digital wall to effectively deliver dynamic content and immerse the viewers. The large screen it generates is enough to captivate the attention of passersby.
    VL5G series has a less image gap between tiled screens compared to LG Conventional, so its content is seen well without being disturbed by the gap. VL5G series has a less image gap between tiled screens compared to LG Conventional, so its content is seen well without being disturbed by the gap.

    Image Gap Reduction

    The VL5G series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
    * The "LG Conventional" refers to displays which do not include an image improvement algorithm.
    A woman is looking up at the screen installed upstairs. A woman is looking up at the screen installed upstairs.

    Higher Viewing Angle

    Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VL5G series is high enough to display vivid colors throughout the screen with no distortion.
    * Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.
    A number of screens installed on both sides and front wall provide a more vivid and wider view. A number of screens installed on both sides and front wall provide a more vivid and wider view.

    Wide Viewing Angle

    It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VL5G series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.
    49VL5G can adjust the color temperature from 3,200K to 13,000K in units of 100K. 49VL5G can adjust the color temperature from 3,200K to 13,000K in units of 100K.

    Easy Color Adjustment

    Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.
    VL5G series can be more accurately adjust white balance. VL5G series can be more accurately adjust white balance.

    White Balance Adjustment

    In conventional video walls, white balance was adjustable only in “full-white” mode, but the VL5G series allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.
    A number of tasks can be done at the same time with the intuitive GUI. A number of tasks can be done at the same time with the intuitive GUI.

    User-Friendly Menu Structure

    The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.
    A display is easily controlled using a user-friendly GUI and a remote control. A display is easily controlled using a user-friendly GUI and a remote control.

    Intuitive GUI

    The GUI (Graphic User Interface) is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. Also, it adopts a large font for better visibility, which is necessary when users want to control displays from relatively far distances.
    Close
    Panel
    • Screen Size
      49"
      Panel Technology
      IPS
    • Back Light Type
      Direct
      Aspect Ratio
      16 : 9
    • Native Resolution
      1,920 x 1,080 (FHD)
      Refresh Rate
      60Hz
    • Brightness
      500nit (Typ.)
      Contrast Ratio
      1,000:1
    • Dynamic CR
      500,000 : 1
      Color gamut
      NTSC 72%
    • Viewing Angle(H x V)
      178x178
      Color Depth
      10bit, 1.07Billion colors
    • Response Time
      8 ms (G to G)
      Surface Treatment(Haze)
      3%
    • Life time
      60,000Hrs (Typ.) / 50,000Hrs (Min.)
      Operation Hours (Hours/Day)
      24/7
    • Portrait / Landscape
      Yes / Yes
    Connectivity
    • Input
      HDMI (2, HDCP 1.4), DP (1, HDCP 1.3),DVI-D (1, HDCP 1.4) Audio In, RS232C IN, RJ45(LAN), IR IN, USB2.0 Type A (1)
      Output
      DP Out, Audio Out, RS232C OUT
    Mechanical Specification
    • Bezel Color
      Black
      Bezel Width
      T/R/L/B : 2.25/1.25/2.25/1.25mm
    • Weight(Head)
      16.9Kg
      Packed Weight
      29.3kg
    • Monitor Dimension(W x H x D)
      1077.6 x 607.8 x 89.7mm
      Carton Dimensions(W x H x D) (Box outer size)
      1214 x 778 x 263mm
    • Handle
      Yes
      VESA? Standard Mount Interface
      600 x 400
    Key Feature
    • HW - Sensor - Temperature Sensor
      Yes
      SW - Embedded CMS - Local Contents Scheduling
      Yes
    • SW - USB Plug & Play
      Yes
      SW - Fail over
      Yes
    • SW - Background Image - Booting Logo Image
      Yes
      SW - Background Image - No Signal Image
      Yes
    • SW - Sync Mode - RS-232C Sync
      Yes
      SW - Rotation - Screen Rotation
      Yes
    • SW - Tile Mode Setting
      Yes (Max. 15x15)
      SW - Setting Data Cloning
      Yes
    • SW - SNMP
      Yes
      SW - ISM Method
      Yes
    • SW - Auto Set ID
      Yes
      SW - 3rd Party Compatibility - Crestron Inside
      Yes
    • SW - Power - Smart Energy Saving
      Yes
      SW - Power - PM mode
      Yes
    • SW - Power - Wake on LAN
      Yes
      SW - HDMI-CEC
      Yes
    • SW - SI Server Setting
      Yes
      SW - W/B Setting by Grey scale
      Yes
    • SW - Scan Inversion
      Yes
    Environment Conditions
    • Operation Temperature
      0 °C to 40 °C
      Operation Humidity
      10 % to 80 %
    Power
    • Power Supply
      AC 100-240V~, 50/60Hz
      Power Type
      Built-In Power
    Power Consumption
    • Typ.
      100W
      Max.
      120W
    • BTU (British Thermal Unit)
      341 BTU/Hr(Typ.), 409 BTU/Hr(Max)
      Smart Enegy Saving
      60W
    • DPM
      0.5W
      Power off
      0.5W
    Certification
    • Safety
      CB / NRTL
      EMC
      FCC Class "A" / CE / KC
    • ErP / Energy Star
      Yes / Energy Star 8.0(US Only)
    Software Compatibility
    • SuperSign CMS
      Yes
      SuperSign Control / Control+
      Yes / Yes
    • SuperSign WB
      Yes
      SuperSign Media Editor
      Yes
    • Connected Care
      Yes
    Language
    • OSD
      English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic
    Accessory
    • Basic
      Remote Controller(include battery 2ea), Power Cord, RS232C cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual
      Optional
      Wall Mount ( Landscape : WM-L640V, Portrait : WM-P640V)
    • Dimension
      • 49vl5g_2d.dwg
      • 49vl5g_2d.pdf
    • Software

      To download Software, Please visit the Software Download Page (Click).

    • Manual

      To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

    To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
