Discontinued

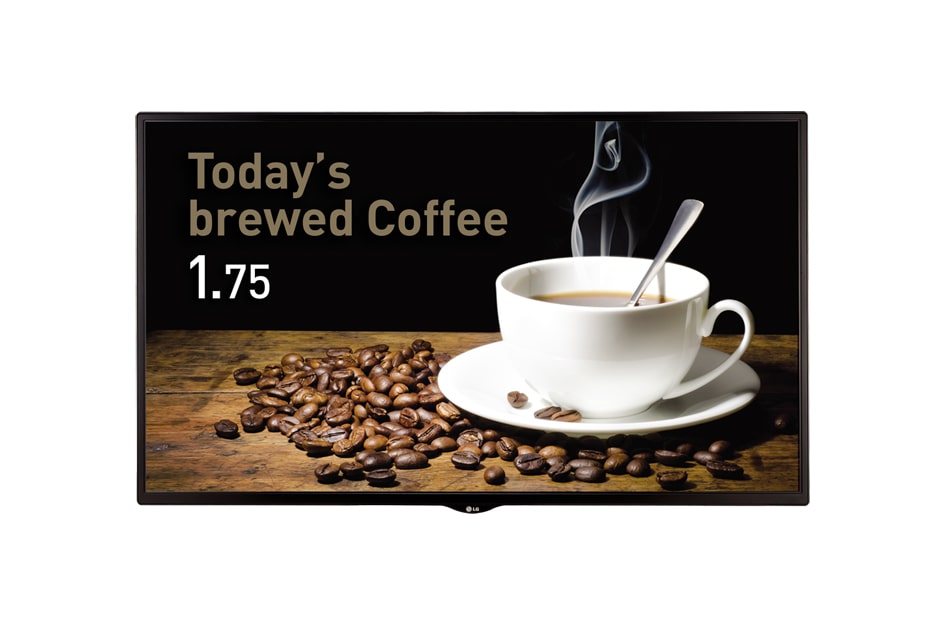

55SE3D component-copyModelName

SE3D Series

Discontinued

55SE3D component-copyModelName

SE3D Series

Key Features

Edge-lit LED
Brightness(Typ.): 350 cd/m2
Bezel: T/L/R 11.9 mm, B 18.0 mm
Depth: 38.6 mm
HDMI (2) / DVI / RGB / RJ 45, RS232C in/out, USB 2.0

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Edge-lit LED
Brightness(Typ.): 350 cd/m2
Bezel: T/L/R 11.9 mm, B 18.0 mm
Depth: 38.6 mm
HDMI (2) / DVI / RGB / RJ 45, RS232C in/out, USB 2.0

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

SE3D Series

Sleek Design

Slimmer Bezel & Depth

The thinner bezel & depth allows a perfect fit for a sleek look.

Sleek Design

Detachable Logo

Portrait mode allows the logo to be positioned in the desired setting.

Sleek Design

Cable Management

The well-organized cable terminals in the back optimize available space.

USB Content Management

USB Content Scheduling

Play and schedule contents with a USB connection-no server connection required.

Dust & Humidity Protection

Conformal Coating

Power board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.

Convenient Management

Enhanced Connectivity

Through its diverse interface, the signage lets you connect more than one device for optimal use.

Convenient Management

Wi-Fi Support

SE3D Series supports Wi-Fi USB dongle connection for convenient content distribution. And SNMP support ensures convenient network management.

Convenient Screen Mode

Aspect Ratio Sustainability*

Sustain the same resolution and picture quality while powering on/off by receiving EDID 1) through switch IC.

Convenient Screen Mode

Stand-by Screen*

Even without signal from the media player, the network does not turn off completely, so remote control is possible, which prevents unnecessary power usage and enables efficient management.

Convenient Screen Mode

Scheduled Screen Wash**

Prevent residual images with the screen transition feature.

Panel

Screen Size

55"

Resolution

1,920 x 1,080 (FHD)
Brightness (Module, Typ., cd/m2)

350

Connectivity

Input

HDMI (2), DVI-D, RGB, Audio in, USB 2.0

Output

Audio out, External Speaker out
External Control

RS232C (In/Out), RJ45, IR Receiver

Physical Specification

Bezel Width

11.9 mm (T/R/L), 18 mm (B)

Monitor Dimension (W x H x D)

1,238 x 714.9 x 38.6 mm
Weight (Head)

17.3 kg

VESA? Standard Mount Interface

300 x 300 mm

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ.

70 W

Smart Energy Saving

55 W

Standard(Certification)

Safety

UL / cUL / CB / TUV / KC

EMC

FCC Class "A" / CE / KCC
ErP / Energy Star

Yes (EU Only) / Yes (Energy Star 7.0)

Media Player Compatibility

OPS type compatible

No

External Media player Attatchable

Yes (MP500/MP700)

Software Compatibility

Content Management Software

SuperSign W

Control and Monitoring Software

SuperSign C

Accessory

Basic

Remote Controller (include battery 2ea), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver

Optional

Speaker (SP-5000), Stand (ST-492T), Media player, Wall bracket (LSW350B), VESA Adapter (AM-B330S)

General

Region

Global

Dimension
- 55SE3D.dwg
- 55SE3D.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
