    55VM5J-H component-copyModelName
    55'' 500 nits FHD Slim Bezel Video Wall

    Key Features

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (55VM5J-H)
      $
      $
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (55VM5J-H)
      $
      $
      LG Members Price
    Total
    55'' 500 nits FHD Slim Bezel Video Wall
    Contact Us

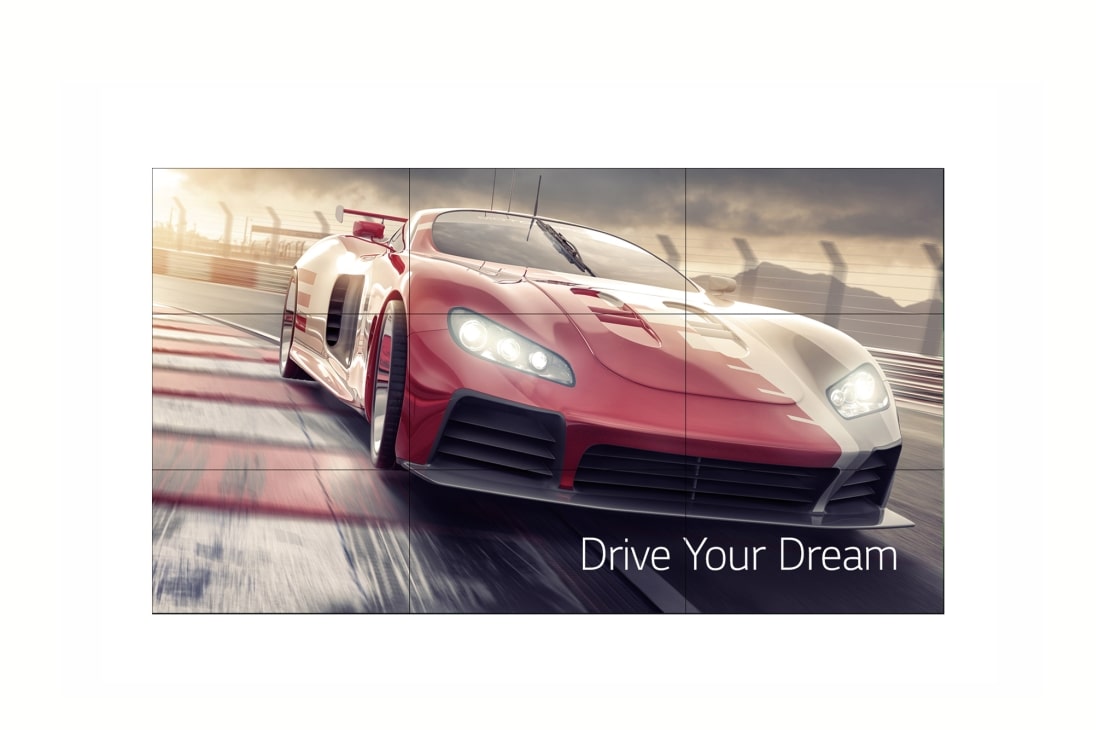

    Artistic Immersion, Overwhelming Captivation

    A big video wall is installed on the wall of the car showroom and the car advertisement is on the screen. A big video wall is installed on the wall of the car showroom and the car advertisement is on the screen.
    * All images in this web page are for illustrative purposes only.

    Seamless Large Screens with Extreme-Narrow Bezel

    The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.
    A video wall is installed in the lobby, and it provides immersive images with ultra slim bezel. A video wall is installed in the lobby, and it provides immersive images with ultra slim bezel.
    * The 1.74mm BtoB (Panel Bezel to Panel Bezel) have been verified by Nemko, a global institution that tests and certifies electrical equipment.

    Image Gap Reduction

    The VM5J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
    VM5J-H consists of less image gaps between the tiled screens compared to the LG Conventional. This improves the viewing experience of the displayed content as it minimizes the visual disturbance by the gaps. VM5J-H consists of less image gaps between the tiled screens compared to the LG Conventional. This improves the viewing experience of the displayed content as it minimizes the visual disturbance by the gaps.
    * The "LG Conventional" refers to displays which do not include an image improvement algorithm.
    ** The image shown above are for illustration purposes only.
    A woman looks up the screen installed upstairs, and the color is vividly displayed without any distortion. A woman looks up the screen installed upstairs, and the color is vividly displayed without any distortion.

    Higher Viewing Angle

    Large screens are usually positioned higher than human-eye level. Wide half luminance angle (40?) enables effective picture quality for video walls. The viewing angle of the VM5J-H is high enough to display vivid colors throughout the screen without any color distortion.
    * Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.
    A man passes by while watching the screen and the screen displays vivid color from any angle. A man passes by while watching the screen and the screen displays vivid color from any angle.

    Wider Viewing Angle

    LG IPS panel technology enables stable and smooth control of liquid crystals, and allows the screen to be viewed from virtually any angle. Therefore, the VM5J-H captivates the attention of more viewers with lifelike colors, regardless of their viewing position.
    VM5J-H can adjust the color temperature from 3,200K to 13,000K in units of 100K. VM5J-H can adjust the color temperature from 3,200K to 13,000K in units of 100K.

    Easy Color Adjustment

    Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.
    VM5J-H can be more accurately adjust white balance. VM5J-H can be more accurately adjust white balance.

    Simple White Balance Adjustment

    In conventional video walls, white balance was adjustable only in “full-white” mode, but the VM5J-H allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.
    The included SoC and webOS smart signage platform demonstrate its ability to execute several tasks at once. The included SoC and webOS smart signage platform demonstrate its ability to execute several tasks at once.

    High Performance and Great Scalability

    Thanks to its built-in SoC and webOS smart signage platform, the VM5J-H can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.
    * SDK can be downloaded with the link below. (https://webossignage.developer.lge.com)
    One side of the video wall is live streaming a soccer game, while the other side of the screen is utilizing CSS effects to add more content. One side of the video wall is live streaming a soccer game, while the other side of the screen is utilizing CSS effects to add more content.

    Flexible Content Creation

    Four different videos can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS (Cascading Style Sheets) transition effects. Real-time streaming is also available, providing the flexibility to organize and diversify content free from capacity limits.
    * Supported protocols : RTSP, RTP, HLS, UDP Multicast
    Several tasks could be accomplished simultaneously with the intuitive GUI. Several tasks could be accomplished simultaneously with the intuitive GUI.

    Intuitive Menu Structure

    The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.
    The menu screen consists of both Landscape and Portrait options. The menu screen consists of both Landscape and Portrait options.

    Dedicated GUI for Portrait Orientation

    The conventional GUI (Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD (On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the VM5J-H, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable and efficient business environment.

    Conformal Coating

    Video wall in various places can't avoid exposure to environments with dust, and humidity, which may lead to hampered performance over time. Conformal coating on the major circuit board (power board) significantly reduces these risks from such environments by protecting video wall from salt, dust, iron powder, humidity, etc.
    The VM5J-H has Conformal Coating on the major circuit board (power board) to protect video wall even in a salty or humid environment. The VM5J-H has Conformal Coating on the major circuit board (power board) to protect video wall even in a salty or humid environment.
    * Actual images (Signage display) available may differ from the example images shown.

    EMC Class B Certified

    The VM5J-H is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments. Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.
    The VM5J-H, certified with EMC class B, is installed on the control room wall. The VM5J-H, certified with EMC class B, is installed on the control room wall.

    Real-Time LG ConnectedCare

    Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
    The LG employee is remotely monitoring the VH7J-H installed in a different place by using cloud-based LG monitoring solution. The LG employee is remotely monitoring the VH7J-H installed in a different place by using cloud-based LG monitoring solution.
    * LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

    Daisy Chain Capability

    A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST.
    Multiple displays are being managed simultaneously through the LAN daisy chain. The UHD daisy chain utilizing HDMI and DisplayPort allows easy access to adjusting UHD settings. Multiple displays are being managed simultaneously through the LAN daisy chain. The UHD daisy chain utilizing HDMI and DisplayPort allows easy access to adjusting UHD settings.

    IP5x Certified Design

    The IP5x Dust-Proof Certification ensures that the product is protected from dust, eliminating the risk of performance degradation.
    The VH7J-H, with IP5x Dust-Proof Certification, protects the product from dust. The VH7J-H, with IP5x Dust-Proof Certification, protects the product from dust.
    ENERGY STAR? Certified1

    ENERGY STAR? Certified

    Close
    Panel
    • Screen Size
      55"
      Panel Technology
      IPS
    • Back Light Type
      Direct
      Aspect Ratio
      16 : 9
    • Native Resolution
      1,920 x 1,080 (FHD)
      Refresh Rate
      60Hz
    • Brightness(Typ., nit)
      500
      Contrast Ratio
      1,000:1
    • Dynamic CR
      500,000 : 1
      Color gamut
      NTSC 72%
    • Viewing Angle(H x V)
      178x178
      Color Depth
      10bit, 1.07Billion colors
    • Response Time
      8 ms (G to G)
      Surface Treatment(Haze)
      28%
    • Life time
      60,000Hrs (Typ.) / 50,000Hrs (Min.)
      Operation Hours (Hours/Day)
      24/7
    • Portrait / Landscape
      Yes / Yes
    Connectivity
    • Input
      HDMI 2 (HDCP 2.2), DP (HDCP 2.2), DVI-D (HDCP 1.4), Audio In, RS-232C In, RJ45 (LAN), IR In, USB 2.0 Type A
      Output
      DP Out (Input : HDMI / DVI / DP), Audio Out, RS-232C Out, RJ45 (LAN)
    Mechanical Specification
    • Bezel Color
      Black
      Bezel Width
      B2B : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm(T/L), 0.44mm(B/R)
      A2A : 2.49mm (Active area to Active area), 1.75mm(T/L), 0.74mm(B/R)
    • Weight(Head)
      18.8 Kg
      Monitor Dimension(W x H x D)
      1,212.2 × 683.0 × 86.9 mm
    • Handle
      Yes
      VESA? Standard Mount Interface
      600 x 400
    Key Feature
    • HW
      Internal Memory 8 GB, Sensor (Temperature Sensor, BLU Sensor, Acceleration(Gyro) Sensor), Local Key Operation
      SW
      webOS 4.1, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected?2)), Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), HDMI-CEC3), SI Server Setting, webRTC, Pro:Idiom, W/B Setting by Grey Scale, Scan Inversion
    Environment Conditions
    • Operation Temperature
      0 °C to 40 °C
      Operation Humidity
      10 % to 80 %
    Power
    • Power Supply
      AC 100-240V~, 50/60Hz
      Power Type
      Built-In Power
    Power Consumption
    • Typ.
      160 W
      Max.
      190 W
    • BTU (British Thermal Unit)
      546 BTU/Hr(Typ.), 648 BTU/Hr(Max)
      Smart Enegy Saving
      90 W
    • DPM
      0.5 W
      Power off
      0.5 W
    Certification
    • Safety
      CB / NRTL
      EMC
      FCC Class "B" / CE / KC
    • ErP
      Yes (EU Only)
    OPS Compatibility
    • OPS Type Compatible
      Yes (Piggyback)
    Software Compatibility
    • SuperSign CMS
      Yes
      SuperSign Control / Control+
      Yes / Yes
    • SuperSign WB
      Yes
      SuperSign Media Editor
      Yes
    • LG Connected Care
      Yes
    Language
    • OSD
      English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek,Turkish, Arabic
    Accessory
    • Basic
      Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan calbe, DP cable, IR Receiver, Guide Bracket, Screws, Manual
      Optional
      OPS Kit (KT-OPSF)
    Special Feature
    • IP Rating
      IP5X tested
    • Dimension
      • 55vm5j_2d.dwg
      • 55vm5j_2d.pdf
    • Datasheet
      • VM5J-H_Datasheet(low)_LG Video Wall_211203.pdf
    • Software

      To download Software, Please visit the Software Download Page (Click).

    • Manual

      To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

    To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
