    65UH5Q component-copyModelName
    UHD Signage

    Key Features

    Choose your Size

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (65UH5Q)
      $
      $
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (65UH5Q)
      $
      $
      LG Members Price
    Total
    UHD Signage
    Contact Us

    UHD Signage Display with LG webOS Platform and Advanced Security

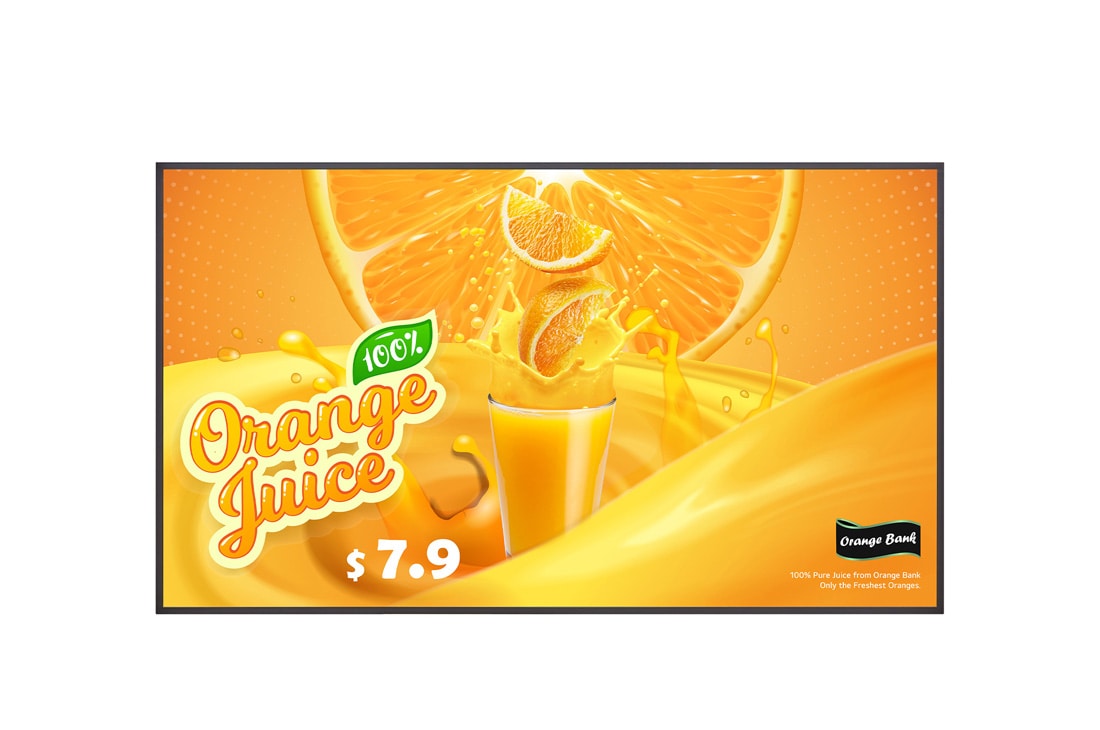

    Inside the café, two signage displays are mounted on the wall, each vividly showcasing menu images. Inside the café, two signage displays are mounted on the wall, each vividly showcasing menu images.
    * All images in this page are for illustrative purposes only.
    Presenting vivid and lively screen quality by magnifying part of the display’s content. Presenting vivid and lively screen quality by magnifying part of the display’s content.

    Superb Picture Quality with Ultra HD Resolution

    With the resolution of UHD, it makes the colors and details of the content vivid and realistic. In addition, the wide viewing angle provides clear content.
    The UH5Q clearly shows its uniform 11.4 mm bezel thickness on all sides. The UH5Q clearly shows its uniform 11.4 mm bezel thickness on all sides.

    Even & Slim Bezel Design

    The UH5Q series features perfectly balanced horizontal and vertical slim bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience.
    A number of tasks can be done at the same time with the intuitive UI. A number of tasks can be done at the same time with the intuitive UI.

    Convenient webOS Platform

    The UH5Q is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.

    * SoC : System On Chip
    ** SI : System Integrator
    The UH5Q, with slim bezels, is mounted close to the wall, showcasing a rear design optimized for space-saving with a simple cable management system. The UH5Q, with slim bezels, is mounted close to the wall, showcasing a rear design optimized for space-saving with a simple cable management system.

    Design for Space Utilization

    Designed with thin bezels and simple cable management, the UH5Q saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13.5 mm of space with the slim bracket.

    * The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.

    Durability that Provides Reliability

    Optimized for business environments, the UH5Q is protected against salt, dust, iron powder and humidity thanks to conformal partial coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring*, provide both reliability and satisfaction.
    The UH5Q has conformal coating to protect the display even in salty or humid environments. The UH5Q has conformal coating to protect the display even in salty or humid environments.
    * When a physical impact occurs on the product, an alert is provided to the administrator through the media controller.
    The UH5Q with LG Shield offers security features that protect its system and network. The UH5Q with LG Shield offers security features that protect its system and network.

    Comprehensive Security

    webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also webOS platform support ETSI EN 303 645.
    Café managers are creating menus that will be displayed on the display installed on the café wall using content management software. Café managers are creating menus that will be displayed on the display installed on the café wall using content management software.

    SuperSign Solutions

    SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

    * SuperSign must be purchased separately.
    Close
    Info
    • Product
      Standard (UHD)
      Year
      Y25
    • Month
      M07
    Panel
    • Screen Size (Inch)
      65"
      Panel Technology
      ADS
    • Back Light Type
      Edge
      Aspect Ratio
      16:9
    • Native Resolution
      3840 x 2160 (UHD)
      Refresh Rate
      60Hz
    • Brightness
      500nit (Typ.)
      Contrast Ratio
      1,200:1 (Typ)
    • Dynamic CR
      1,000,000:1
      Color gamut
      BT709 95%
    • Viewing Angle(H x V)
      178 X 178
      Color Depth (Number of Colors)
      10bit(D), 1.07Billion colors
    • Response Time
      8m (G to G)
      Surface Treatment (Haze)
      25%(Typ)
    • Life time
      50,000Hrs (Min.)
      Operation Hours (Hours/Day)
      24/7
    • Portait / Landscape
      Yes / Yes
    Connectivity
    (Jack Interface)
    • HDMI IN
      Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4
      DP IN
      Yes(1), 3840x2160@60Hz, HDCP2.2/1.3
    • RS232C IN
      Yes (1), 4pin Phone-jack
      RJ45(LAN) IN
      Yes (1)
    • IR IN
      Yes (1)
      USB IN
      USB2.0 Type A(2)
    • Audio Out
      Yes (1)
      RS232C Out
      Yes (1), 4pin Phone-jack
    • IR Out
      No (Support IR daisy chain via RS232C IN/OUT)
    Mechanical
    • Bezel Color
      Black
      Bezel Width
      Even bezel : 11.4mm
    • Weight (Head)
      21.1 kg
      Packed Weight
      27.0 kg
    • Monitor Dimensions (W x H x D)
      1459.0 x 835.0 x 29.7mm
      Carton Dimensions (W x H x D)
      1580.0 x 950.0 x 172.0mm
    • VESATM Standard Mount Interface
      300 x 300
    HW Feature
    • Internal Memory (eMMC)
      16GB
      Wi-Fi/BT (Built-in)
      Yes
    • Temperature Sensor
      Yes
      Auto Brightness sensor
      Yes(Built-in for Europe only, sold separately in other regions)
    • Acceleration(Gyro) Sensor
      Yes
      Local Key Operation
      Yes
    SW Feature
    • OS Ver. (webOS)
      webOS8.0
      Local Contents Scheduling
      Yes
    • Group Manager
      Yes
      USB Plug & Play
      Yes
    • Fail over
      Yes
      Booting Logo Image
      Yes
    • No Signal Image
      Yes
      RS232C Sync
      Yes
    • Local Network Sync
      Yes
      PIP
      Yes
    • PBP
      Yes (4)
      Screen Share
      Yes
    • Video Tag
      Yes (4)
      Play via URL
      Yes
    • Screen Rotation
      Yes
      External Input Rotation
      Yes
    • Gapless Playback
      Yes
      Tile Mode Setting
      Yes (Max. 15x15)
    • Setting Data Cloning
      Yes
      SNMP
      Yes
    • ISM Method
      Yes
      Status Mailing
      Yes
    • Control Manager
      Yes
      Cisco Certification
      Yes (TBD)
    • Crestron Connected
      Yes
      Smart Energy Saving
      Yes
    • PM mode
      Yes
      Wake on LAN
      Yes
    • Network Ready
      Yes
      Beacon
      Yes
    • HDMI-CEC
      Yes
      SI Server Setting
      Yes
    • webRTC
      Yes
      Pro:Idiom
      Yes
    Environment Conditions
    • Operation Temperature
      0°C to 40°C
      Operation Humidity
      10 % to 80 %
    Power
    • Power Supply
      AC 100-240V~, 50/60Hz
      Power Type
      Built-In Power
    Power Consumption
    • Typ.
      130W(TBD)
      Max.
      184W (TBD)
    • BTU (British Thermal Unit)
      444 BTU/Hr(Typ.), 699 BTU/Hr(Max) (TBD)
      Smart Enegy Saving (70%)
      91W(TBD)
    • DPM
      0.5W
      Power off
      0.5W
    Sound
    • Speaker (Built-in)
      Yes (10W X 2)
    Certification
    • Safety
      CB / NRTL
      EMC
      FCC Class "B" / CE / KC
    • ErP / Energy Star
      Yes / Yes
      ePEAT(US only)
      Yes / Carbon "Reducing CO2"(TBD)
    Software Compatibility
    • SuperSign CMS
      Yes
      SuperSign Control+
      Yes
    • SuperSign WB
      Yes
      SuperSign Cloud
      Yes
    • Mobile CMS
      Yes
      Connected Care
      Yes
    Language
    • OSD
      English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türk?e, Arabic, Polski
    Accessory
    • Basic
      Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder (For Power Cord), IR/Light sensor receiver(EU/EK Only), Magnetic sheet(2EA, EU/EK Only)
      Optional
      Slim Wall Mount (WB21LMA/B), Normal Wall Mount (OLW480A/B), IR/Light sensor receiver (ACC-L)
    Special Feature
    • Tilt (Face Down)
      Yes(Max 15? degree, 40℃ temperature) (TBD)
      IP Rating
      IP5X
    • Conformal Coating (Power Board)
      Yes (Partial space coating)
    • Datasheet
      • UH5Q_Datasheet(low)_LG UHD Signage_250716.pdf
    • Software

      To download Software, Please visit the Software Download Page (Click).

    • Manual

      To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

    To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
