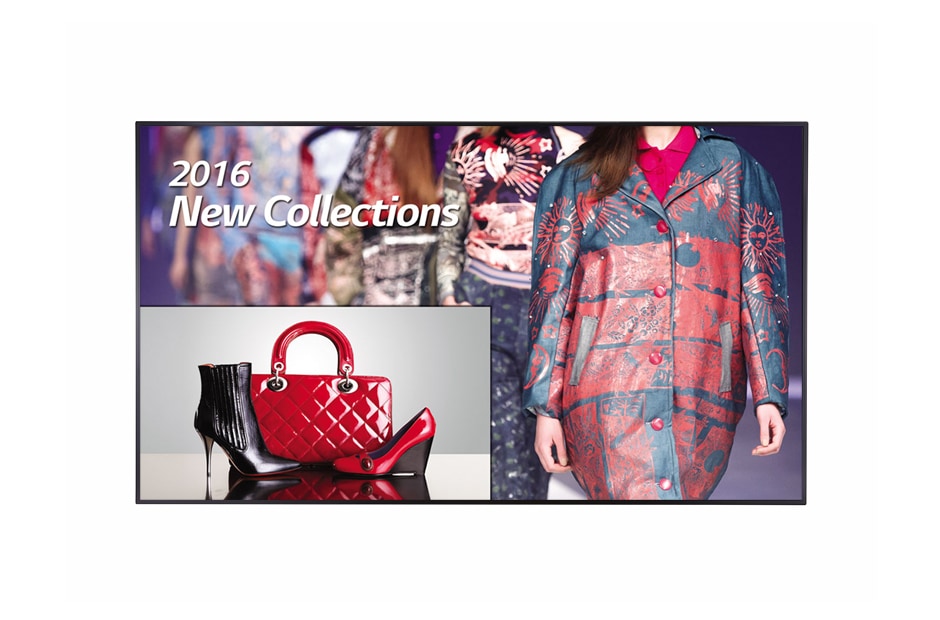

86UH5C component-copyModelName

UH5C Series

Discontinued

86UH5C component-copyModelName

UH5C Series

Key Features

Brightness(Typ.) : 500 cd/m2
Bezel : 14.7mm Even Bezel
Depth : 60.6mm / without logo, handle
Interface : DP / HDMI / DVI / RS232C / RJ45 / Pixel Sensor / SD Card / USB

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 500 cd/m2
Bezel : 14.7mm Even Bezel
Depth : 60.6mm / without logo, handle
Interface : DP / HDMI / DVI / RS232C / RJ45 / Pixel Sensor / SD Card / USB

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

UH5C Series

UH5C_01_M01_Outstanding-Picture-Quality_1524114352249

UHD Resolution & HEVC

Outstanding Picture Quality

UHD large screen delivers immersive viewing with four times higher definition than FHD. UH5C ensures stable UHD video playback with HEVC (High Efficiency Video Coding) and double the data compression ratio of H.264.

UH5C_02_M01_High-Performance-Smart-Platform_1524114401741

Quad Core SoC with webOS

High Performance Smart Platform

Quad Core SoC (System-on-Chip) executes several tasks at once with smooth content playback without a media player. webOS smart signage platform enhances user convenience with intuitive UI and simple development tools.

UH5C_03_M02_Simply-Play-and-Schedule-Content_1524114497370

USB Content Scheduling

Simply Play and Schedule Content

There is no need for additional server or media player connections as UH5C supports USB playback and scheduling. Users can set a playlist and timing for playing content using a USB.
* Image is for illustration-purposes only.

UH5C_04_M03_Multiple-Screen-Composition_02_1524114669807

PBP/PIP

Multiple Screen Composition

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to four divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.

Wireless Solutions

Content Sharing

Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion

With Beacon and Bluetooth Low Energy (BLE), retail stores can provide coupons and information in real-time.

UH5C_07_M01_Real-Time-Remote-Monitoring_1524114872359

SNMP Support

Real-Time Remote Monitoring

In case of malfunctions or errors, real-time remote care is available. When an alarm occurs, an e-mail notification is sent using SuperSign SW or SI SW via the SNMP Protocol.

UH5C_09_M02_Space-Management-Efficiency_1524115067045

Slimmer Depth

Space Management Efficiency

With slim depth and built-in speaker for space efficiency, users don't need to install an additional media player. Also, users can easily move the display using its back-side handle.

*57.9mm (75"), 60.6mm (86") depth

UH5C_10_M01_High-Compatibility_1524115128856

OPS/HDBaseT Connectivity

High Compatibility

UH5C provides an optional OPS (Open Pluggable Specification) Kit to connect a third-party OPS player or HDBaseT box. Users have the flexibility to choose any media player as long as it complies with the OPS.

Panel

Screen Size

86"

Resolution

3,840 x 2,160 (UHD)
Brightness(Typ.,cd/m2)

500

Connectivity

Input

HDMI, DP, DVI-D, Audio, USB 3.0, SD Card

Output

DP, Audio
External Control

RS232C, RJ45, IR Receiver, Pixel Sensor

Physical Specification

Bezel Width

14.7mm

Monitor Dimension (W x H x D)

1,926.2 x 1,097.2 x 60.6mm (without logo / handle)
Weight (Head)

49kg

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ.

275W

Smart Energy Saving

193W

Audio

Audio Power

20 W (10W x 2)

Speaker On/Off

Yes
Sound Mode

Standard, News, Music, Cinema, Sports, Game

Standard(Certification)

Safety

UL / cUL / CB / TUV / KC

EMC

FCC Class "A" / CE / KC
ErP / Energy Star

Yes (EU Only) / No

Media Player Compatibility

OPS type compatible

Yes

External Media player Attatchable

Yes (MP500/MP700)

Software Compatibility

Content Management Software

SuperSign W

Control and Monitoring Software

SuperSign C

Accessory

Basic

Remote Controller (include battery 2ea), Power Cord, QSG, DP cable (2.6M), Regulation Book, Phone to RS232C Gender, Memory Cover

Optional

Media Player, OPS Kit (KT-OPSA), HDBaseT (EB-B100), LSW640A/B(Wall Mount)

Dimension
- 86UH5C_UH5D.dwg
- [Drawing] 86UH5C dimension 160304_v01.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
