Key Features

Brightness(Typ.) : 350 cd/m2
Bezel : 21.9 mm (Even)
Depth : 93.3 mm
Interface : HDMI(3), USB 2.0(2), RS232C In/Out, RJ45 In, IR In, Audio Out
Built-in Speaker

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 350 cd/m2
Bezel : 21.9 mm (Even)
Depth : 93.3 mm
Interface : HDMI(3), USB 2.0(2), RS232C In/Out, RJ45 In, IR In, Audio Out
Built-in Speaker

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

webOS Ultra HD Series

Clear Color Expression of UHD Content

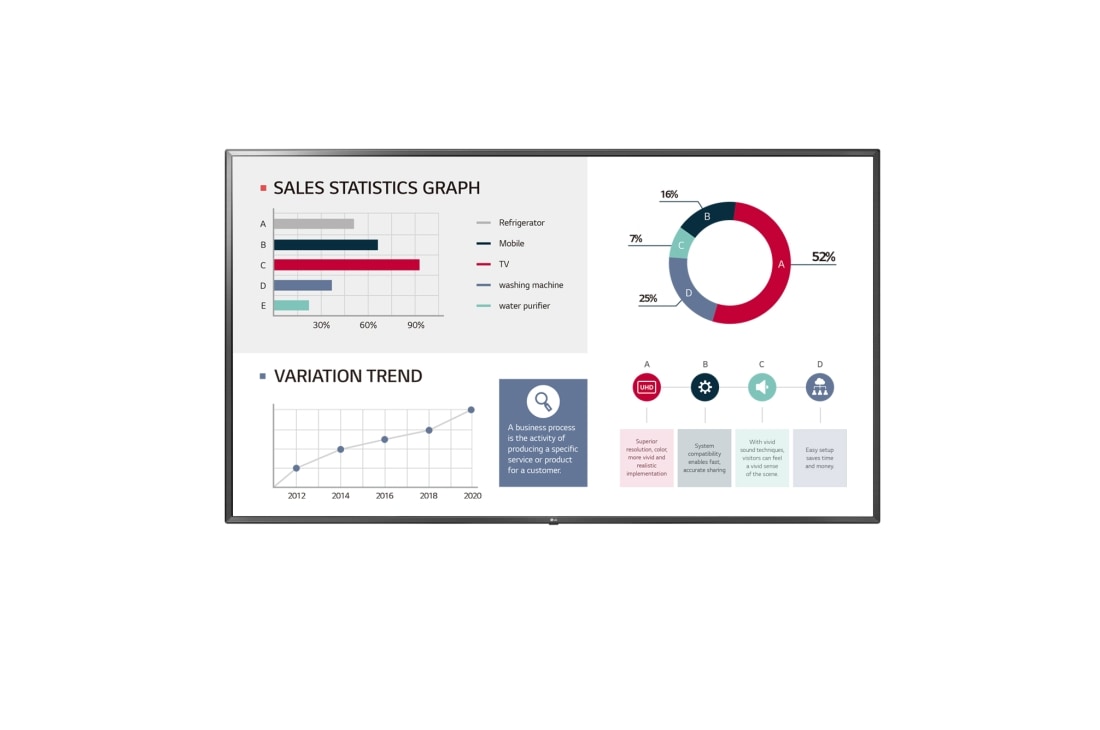

An Ultra HD large display, the 86UL3G will improve business productivity in any location. All content is delivered in vivid colors and with fine details, giving audiences a clearer viewing experience.

86UL3G-02-ULTRA HD Resolution-Digital Signage-ID_1579645886136

SUPERB PICTURE QUALITY

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic.

86UL3G-03-High Efficiency Video Coding-Digital Signage-ID_1579645910574

SUPERB PICTURE QUALITY

High Efficiency Video Coding

The 86UL3G supports HEVC* which efficiently compresses/decompresses high-capacity UHD contents, playing ultra-high quality videos with half the network traffic than the existing H.264 codec.

* HEVC : High Efficiency Video Coding

86UL3G-04-High Performance SoC with webOS-Digital Signage-ID_1579645940709

SMART SIGNAGE PLATFORM

High Performance SoC with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.

86UL3G-05-Various Sensor Applications-Digital Signage-ID_1579645965969

SMART SIGNAGE PLATFORM

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

SMART SIGNAGE PLATFORM

Content Sharing

Content Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion

With Beacon and BLE^{(Bluetooth Low Energy)}, shop managers can provide coupons and information in real-time.
Wireless Solution

The 86UL3G operates as a virtual router which can be a wireless access point for mobile devices.

86UL3G-07-Compatibility with AV Control System-Digital Signage-ID_1579646020715

OPERATIONAL EFFICIENCY

Compatibility with AV Control System

The 86UL3G has been certified Crestron Connected? for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network based control

86UL3G-08-Compatibility-with-Conferencing-System-Digital Signage-ID_1579646060161

OPERATIONAL EFFICIENCY

Compatibility with Conferencing System

The certification of compatibility between the 86UL3G and Cisco System that offers powerful and integrated control* for video conference is in progress. It will promote the optimal visual meeting by eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

* Using an HDMI cable connection

86UL3G-09-Remote Monitoring and Control-Digital Signage-ID_1579646123324

OPERATIONAL EFFICIENCY

Remote Monitoring and Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 86UL3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

86UL3G-10-Real time Care Service with LG Signage365Care-Digital Signage-ID_1579646149781

OPERATIONAL EFFICIENCY

Real-time Care Service with LG Signage365Care

The maintenance gets easier and faster with an optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.

* The availability of Signage365Care service can differ by region, so please contact the LG sales representative in your region for further details.

Panel

Screen Size

86”

Aspect Ratio

16 : 9
Native Resolution

3,840 x 2,160 (UHD)

Refresh Rate

120 Hz
Brightness(Typ.,cd/m2)

350

Contrast Ratio

1,400:1
Viewing Angle (H x V)

178 x 178

Response Time

5ms (G to G)
Surface Treatment (Haze)

Haze 3%

Life Time (Min.)

30,000 Hrs (Min.)
Operation Hours (Hours / Day)

16 / 7 (Hours / Day)

Portrait / Landscape

No / Yes

Connectivity

Input

HDMI (3, HDCP2.2), USB 2.0 Type A (2)

Output

Audio
External Control

RS232C In/out (4 Pin Phone-Jack), RJ45 (LAN) In

Mechanical Specification

Bezel Color

Dark Meteo Titan

Bezel Width

21.9 mm (Even Bezel)
Weight (Head)

44.2 kg

Weight (Head+Stand)

45.0 kg
Packed Weight

59.0 kg

Monitor Dimensions (W × H × D)

1,943 x 1,118 x 77.9 mm (Thickest Point 93.3 mm)
Monitor incl. Stand Dimensions (W x H x D)

1,943 x 1,188 x 345 mm (EU, UK: N/A, stand not provided)

Carton Dimensions (W × H × D)

2,116 x 1,261 x 285 mm
Handle

No

VESA? Standard Mount Interface

600 x 400 mm

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10% to 80%

Power

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ. / Max.

240 W / 325 W

Smart Energy Saving

168 W

Sound

Speaker

Yes

Certification

Safety

CB

EMC

FCC Class “A” / CE / KC
ErP

Yes (EU Only)

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control+/Control
Signage365Care

Yes*
^{* The availability of the “Signage365Care” service differs by region.}

Accessory

Basic

Remote Controller, Power Cord, Regulation Book, Phone to D-Sub9 Gender, Stand (EU, UK: not provided), Cable Holder

General

Region

Global

Datasheet
