    Discontinued
    86UT640S (NA) component-copyModelName

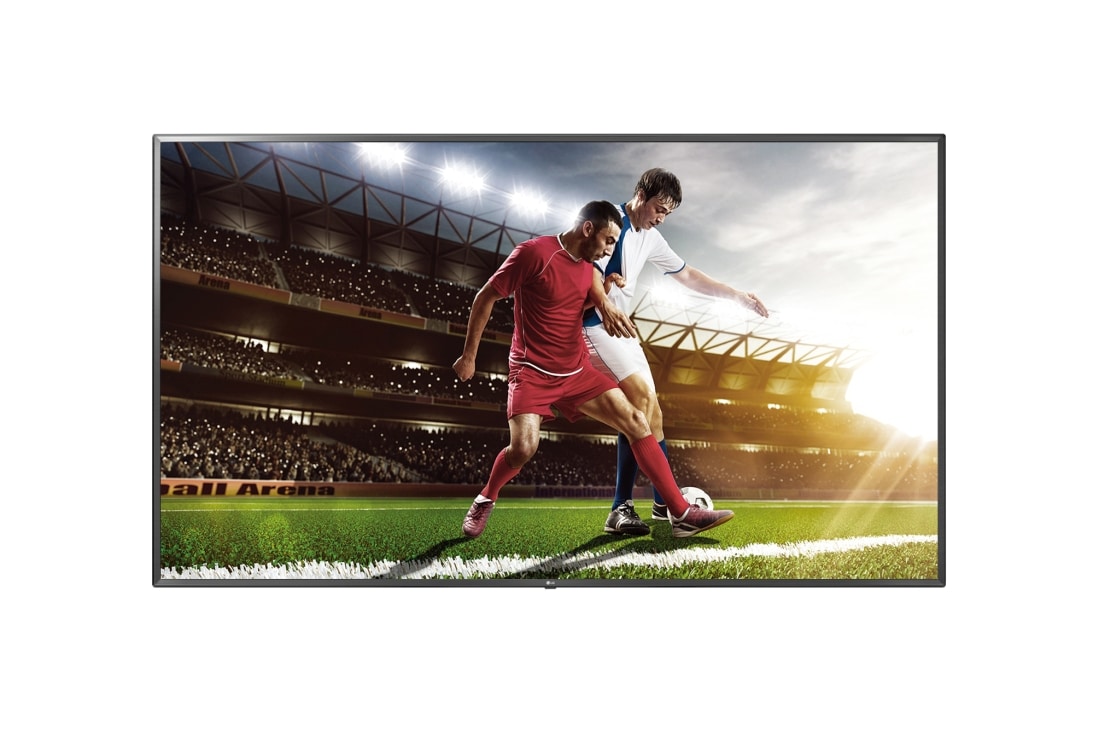

    86'' 350 nits UHD TV Signage

    Key Features

    Choose your Size

    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    86" 350 nits UHD TV Signage
    Contact Us
    Close
    Display
    • Inch
      86
      Resolution
      3840 X 2160 (UHD)
    • Brightness (cd/m2)
      350
    Broadcasting System
    • TV Reception
      NTSC / ATSC / Clear QAM
    Video
    • HDR (10 Pro / HLG)
      Yes / Yes
    Audio
    • Audio Output
      10W + 10W
      Speaker System
      2.0 ch
    • DOLBY ATMOS
      -
      One Touch Sound Tuning
      -
    • LG Sound Sync
      Bluetooth required
    Compability
    • Supersign SW
      Content Management Software (SuperSign CMS), Control and Monitoring Software (Control/Control+), Simple Editor
    Features
    • Signage
      Crestron Connected? (Network Based Control), DPM (Digital Power Management), Time Scheduler, RTC (Real Time Clock), NTP sync timer, BEACON, Embedded CM (Contents Manager), Embedded GM (Group Manager)
      Smart
      webOS 4.5, Smart Home (Launcher Bar), Web Browser, Pre-loaded App (YouTube only), Soft AP, Wi-Fi (802.11ac, Built-in type), Screen Share (Miracast), DIAL, Bluetooth Audio Playback, LG Sound Sync/bluetooth, Mobile Connection Overlay
    • Hospitality
      Public Display Mode, Lock Mode (Limited), Welcome Screen (Splash Image), Insert Image, IP Channel Manager, External Speaker Out (Int/Fixed, 3.5mm, Stereo, Single ended Type (GND, L+, R+), 1W with 8?), V-Lan Tag, RJP (Remote Jack Pack) Compatibility (Teleadapt/Guestlink (HDMI CEC)), Moving Picture Playback (SD/HD/Plus HD), Auto Off/Sleep Timer, Smart Energy Saving, Motion Eye Care
      Maintenance
      USB Cloning, WOL, SNMP, Diagnostics (USB), Simplink (HDMI-CEC (1.4)), IR Out (RS-232C), Multi IR Code
    Jack Interface
    • Set Side
      HDMI In 2 (2.0), USB (2.0)
      Set Rear
      HDMI In (HDCP (2.0)), RF In (tuner), AV In (Phone Jack Type), Digital Audio Out (Optical), RS-232C (D-Sub 9pin (Control & Service)), RJ45 (Usage Purpose 2 (Ethernet, SNMP)), External Speaker Out (3.5mm phone jack (Spk-out fixed 0.01~1.00W and line out)), Debug (Phone Jack Type)
    Dimension(Unit: mm/kg)
    • Vesa
      600 x 400
      W x H x D / Weight (with stand)
      76.5” x 46.8” x 13.6” / 99.2 lbs
      1,943 x 1,188 x 345 / 45.0 kg
    • W x H x D / Weight (without stand)
      76.5” x 44” x 3.7” / 97.4 lbs
      1,943 x 1,118 x 93.3 / 44.2 kg
      W x H x D / Weight (Shipping)
      83.3” x 49.6” x 11.2” / 130.1 lbs
      2,116 x 1,261 x 285 / 59.0 kg
    Power(Unit : Watts)
    • Voltage, Hz
      AC 120 V ~ 50 / 60 Hz
      Power Consumption(Typ.)
      301W
    • Stand-by
      Under 0.5W
    General
    • Region
      North America
    • Dimension
      • 86UT640S.dwg
      • 86UT640S.pdf
    • Datasheet
      • UT640S(NA)_Datasheet(web)_LG Commercial TV_2008.pdf
    • Software

      To download Software, Please visit the Software Download Page (Click).

    • Manual

      To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

    To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
