    Ultra Stretch Signage
    Contact Us

    Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen

    The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.
    Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen1 Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen2
    * All images in this page are for illustrative purposes only.

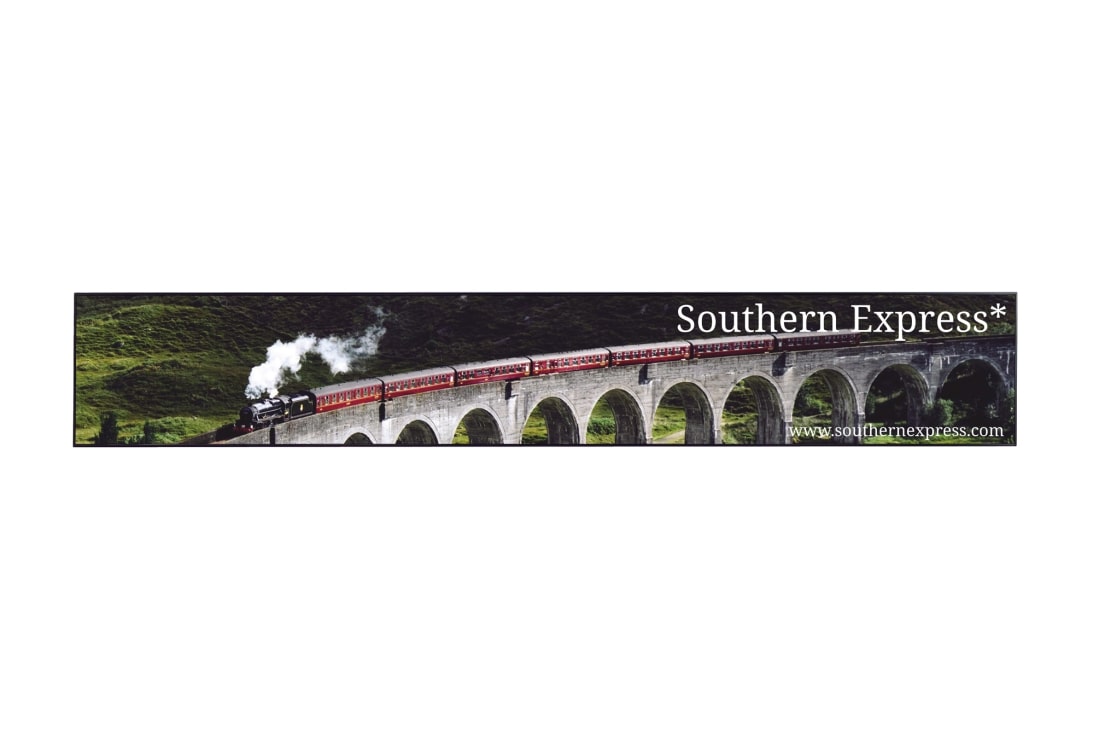

    58:9 Extended Wide Format 58:9 Extended Wide Format

    58:9 Extended Wide Format

    It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content* than the conventional display of 16:9 ratio.
    * Video content only. (Images not supported)
    Ultra HD Resolution (3,840 x 600) Ultra HD Resolution (3,840 x 600)

    Ultra HD Resolution (3,840 x 600)

    Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.
    88BH5F-04-Multi Screen Mode with 4PBP-Special-Digital Signage-ID_1577412499026 88BH5F-04-Multi Screen Mode with 4PBP-Special-Digital Signage-ID_1577412499026

    Multi Screen Mode with 4PBP

    The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.
    Tiled Scene with Immersive View Tiled Scene with Immersive View

    Tiled Scene with Immersive View

    The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.
    IP5x Certified Design IP5x Certified Design

    IP5x Certified Design

    The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
    User-Friendly UX User-Friendly UX

    User-Friendly UX

    The 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD* can also be adjusted accordingly.
    *OSD : On Screen Display
    LAN Daisy Chain Management LAN Daisy Chain Management

    LAN Daisy Chain Management

    By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
    Real-Time Monitoring with ConnectedCare Real-Time Monitoring with ConnectedCare

    Real-Time Monitoring with ConnectedCare

    Easier and faster maintenance are available with our optional cloud service solution ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
    * ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.
    Supermarket Supermarket

    Explore more showroom at
    LG Digital Connect

    Explore
    Close
    Panel
    • Screen Size
      86"
      Panel Technology
      IPS
    • Aspect Ratio
      58:9
      Contrast Ratio
      1,100:1
    • Viewing Angle (H x V)
      178 x 178
      Response Time
      8ms (G to G)
    • Surface Treatment (Haze)
      3%
      Brightness (Typ., cd/m2)
      500
    • Life Time (Typ.)
      50,000 Hrs
      Operation Hours (Hours/Day)
      24/7
    • Portrait / Landscape
      Yes / Yes
    Connectivity
    • Input
      HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)
      Output
      DP, Audio
    • External Control
      RS232C In/out, RJ45(LAN) In/out, IR In
    Mechanical Specification
    • Bezel Color
      Black
      Bezel Width
      4.4 mm (L/R), 5.9 mm (T/B)
    • Packed Weight
      38.2 kg
      Monitor Dimensions (W × H × D)
      2,158.3 x 348.5 × 81.7 mm
    • Weight (Head)
      20.5 kg
      Carton Dimensions (W × H × D)
      2,290 x 599 x 228 mm
    • Handle
      Yes
      VESA? Standard Mount Interface
      600 x 200 mm
    Environment Conditions
    • Operation Temperature Range
      0°C to 40°C
      Operation Humidity Range
      10% to 80%
    Power
    • Power Supply
      100-240V~, 50/60Hz
      Power Type
      Built-In Power
    Power Consumption
    • Smart Energy Saving
      100 W
      Typ. / Max.
      220 W / 240 W
    Standard(Certification)
    • Safety
      CB / NRTL
      EMC
      FCC Class "A" / CE / KC
    • ErP
      Yes (EU Only)
    Media Player Compatibility
    • OPS Type Compatible
      Yes (Piggyback)
    Software Compatibility
    • Content Management Software
      SuperSign CMS (The SuperSign Editor function is not supported.)
      Control and Monitoring Software
      SuperSign Control/Control+
    • LG ConnectedCare
      Yes
    Accessories
    • Basic
      Remote Controller, Power Cord, DP Cable, RS-232C Cable, IR/Light Sensor Receiver, Manual
      Optional
      OPS Kit (KT-OPSF)
    • Dimension
      • 86bh5f_2d.dwg
      • 86bh5f_2d.pdf
    • Datasheet
      • 86BH5F_Datasheet(low)_LG Ultra Stretch Signage_210930.pdf
    • Software

      To download Software, Please visit the Software Download Page (Click).

    • Manual

      To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
