    UHD Signage
    Contact Us

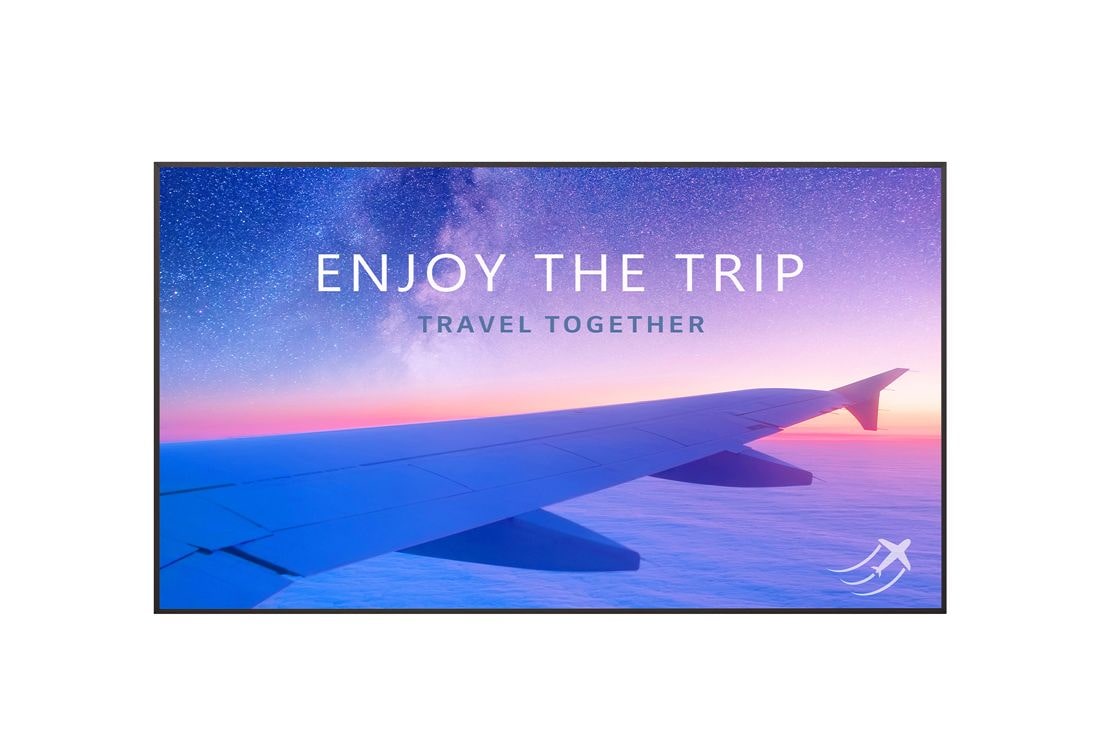

    Large UHD Signage Display with LG webOS Platform and Advanced Security

    The display has been installed on a column at the airport, which is exposed to bright sunlight. Despite the bright environment, advertisements on the display are clearly visible. The display has been installed on a column at the airport, which is exposed to bright sunlight. Despite the bright environment, advertisements on the display are clearly visible.
    * All images in this page are for illustrative purposes only.

    High Brightness

    The UH7N-M display, with a great brightness of 700 nits, clearly delivers content even in bright stores.
    Two large-sized UH7N-M displays are installed on the wall of the telecom store. The UH7N-M has high brightness, making it clearly visible even under the store's bright lighting. Two large-sized UH7N-M displays are installed on the wall of the telecom store. The UH7N-M has high brightness, making it clearly visible even under the store's bright lighting.
    Sturdy Design with Fire Flame Resistance Sturdy Design with Fire Flame Resistance

    Sturdy Design with Fire Flame Resistance

    The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.

    * Based on third party testing, the case top and back cover of the product are classified Class A1 (case top) and A2 (back cover) under EN13501-1, Class 1 under BS476 Part 7.

    Eye-catching Large Screen

    A large screen effectively captures people's attention. Especially, 86-inch model supports 120Hz, enabling smooth content operation.
    The company lounge features a sizable UH7N-M installed on the wall. The large screen vividly displays images, easily capturing people’s attention. The company lounge features a sizable UH7N-M installed on the wall. The large screen vividly displays images, easily capturing people’s attention.
    * 75-inch model supports 60Hz

    Versatile Operation with
    Multi-USB

    With support for two USB ports, UH7N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.
    A man in the meeting room is conducting the meeting using both a mouse and keyboard, which are connected to the UH7N-M and used simultaneously. A man in the meeting room is conducting the meeting using both a mouse and keyboard, which are connected to the UH7N-M and used simultaneously.
    The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD. The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD.

    High Resolution Display

    It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
    A number of tasks can be done at the same time with the intuitive UI. A number of tasks can be done at the same time with the intuitive UI.

    Convenient webOS Platform

    The UH7N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

    Durability that Provides Reliability

    Optimized for business environments, the UH7N-M is guarded against the potential impact of salt, dust, iron powder and humidity through the implementation of conformal coating on the power board. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.
    The UH7N-M has conformal coating to protect the display even in salty or humid environments. The UH7N-M has conformal coating to protect the display even in salty or humid environments.

    Design for Space Utilization

    Designed with thin bezels and simple cable management, the UH7N-M saves space.
    The UH7N-M, with slim bezels, is mounted close to the wall, showcasing a rear design optimized for space-saving with a simple cable management system. The UH7N-M, with slim bezels, is mounted close to the wall, showcasing a rear design optimized for space-saving with a simple cable management system.
    * The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.

    Enhanced Security Features

    The UH7N-M provides security features, including LG's Enhanced Kernel Protection (EKP) technology, guarding important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
    The UH7N-M provides security features to protect important data from external access or attacks. The UH7N-M provides security features to protect important data from external access or attacks.

    SuperSign Solutions

    SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
    Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software. Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.
    Close
    Info
    • Product
      Standard (UHD)
      Year
      Y24
    • Month
      M09
    Panel
    • Screen Size (Inch)
      86
      Panel Technology
      ADS
    • Back Light Type
      Edge
      Aspect Ratio
      16:9
    • Native Resolution
      3840 x 2160 (UHD)
      Refresh Rate
      120Hz
    • Brightness
      700nit (Typ.)
      Contrast Ratio
      1,200:1
    • Dynamic CR
      1,000,000:1
      Color gamut
      BT709 95%
    • Viewing Angle (H x V)
      178 x 178
      Color Depth (Number of Colors)
      1.07G (8bits + FRC)
    • Response Time
      8m (G to G)
      Surface Treatment (Haze)
      25%
    • Life time
      50,000Hrs (Min.)
      Operation Hours (Hours/Day)
      24/7
    • Portait / Landscape
      Yes / Yes
    Connectivity
    (Jack Interface)
    • HDMI IN
      Yes(2), 3840x2160@60Hz, HDCP 2.2/1.4
      DP IN
      Yes(1), USB-C(DP Alternate mode) shared ,
      3840x2160@60Hz, HDCP 2.2/1.3
    • RS232C IN
      Yes (1), 4pin Phone-jack
      RJ45(LAN) IN
      Yes (1)
    • IR IN
      Yes (1)
      USB IN
      USB2.0 Type A(2), USB2.0 Type C ((1), without PD funtion)
    • Audio Out
      Yes (1)
      RS232C Out
      Yes (1), 4pin Phone-jack
    • IR Out
      No (Support IR daisy chain via RS232C IN/OUT)
    Mechanical
    • Bezel Color
      Black
      Bezel Width
      13.4 mm (Even)
    • Weight (Head)
      53.0 kg
      Packed Weight
      66.7 kg
    • Monitor Dimensions (W x H x D)
      1928.8 x 1099.8 x 29.7 mm (without IR, Handle)
      Carton Dimensions (W x H x D)
      2100 x 1250 x 253 mm
    • Handle
      Yes
      VESATM Standard Mount Interface
      600 x 400
    HW Feature
    • Internal Memory (eMMC)
      16GB
      Wi-Fi/BT (Built-in)
      Yes
    • Temperature Sensor
      Yes
      Auto Brightness sensor
      Yes(IR)
    • Acceleration(Gyro) Sensor
      Yes
      Local Key Operation
      Yes
    SW Feature
    • OS Ver. (webOS)
      webOS6.0
      Local Contents Scheduling
      Yes
    • Group Manager
      Yes
      USB Plug & Play
      Yes
    • Fail over
      Yes
      Booting Logo Image
      Yes
    • No Signal Image
      Yes
      RS232C Sync
      Yes
    • Local Network Sync
      Yes
      PIP
      Yes
    • PBP
      Yes (4)
      Screen Share
      Yes
    • Video Tag
      Yes (4)
      Play via URL
      Yes
    • Screen Rotation
      Yes
      External Input Rotation
      Yes
    • Gapless Playback
      Yes
      Tile Mode Setting
      Yes (Max. 15x15)
    • Setting Data Cloning
      Yes
      SNMP
      Yes
    • ISM Method
      Yes
      Auto Set ID
      Yes
    • Status Mailing
      Yes
      Control Manager
      Yes
    • Cisco Certification
      Yes (TBD)
      Crestron Connected
      Yes
    • Smart Energy Saving
      Yes
      PM mode
      Yes
    • Wake on LAN
      Yes
      Network Ready
      Yes
    • Beacon
      Yes
      HDMI-CEC
      Yes
    • SI Server Setting
      Yes
      webRTC
      Yes
    • Pro:Idiom
      Yes
    Environment Conditions
    • Operation Temperature
      0°C to 40°C
      Operation Humidity
      10 % to 80 %
    Power
    • Power Supply
      AC 100-240V~, 50/60Hz
      Power Type
      Built-In Power
    Power Consumption
    • Typ.
      205 W
      Max.
      297 W
    • BTU (British Thermal Unit)
      699 BTU/Hr (Typ.), 1013 BTU/Hr (Max)
      Smart Enegy Saving (70%)
      144 W
    • DPM
      0.5 W
      Power off
      0.5 W
    Sound
    • Speaker (Built-in)
      Yes (10W X 2)
    Certification
    • Safety
      CB / NRTL
      EMC
      FCC Class "B" / CE / KC
    • ErP / Energy Star
      N/A / Yes
      ePEAT(US only)
      Yes / Carbon "Measured" (TBD)
    • BS476 Part7
      Class 1 (case top / back cover)
      EN13501-1
      Class A1 (case top) / Class A2 (back cover)
    Software Compatibility
    • SuperSign CMS
      Yes
      SuperSign Control+
      Yes
    • SuperSign WB
      Yes
      SuperSign Cloud
      Yes
    • Mobile CMS
      Yes
      Connected Care
      Yes
    Language
    • OSD
      English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türk?e, Arabic
    Accessory
    • Basic
      Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder(6EA), Cable Holder(7Pin/1EA)
      Optional
      Wall Mount (LSW640A/B)
    Special Feature
    • IP Rating
      IP5x
      Conformal Coating (Power Board)
      Yes (Partial space coating)
    • Datasheet
      • 86-75UH7N-M_Datasheet(low)_LG UHD Signage_250210.pdf
    • Software

      To download Software, Please visit the Software Download Page (Click).

    • Manual

      To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

    To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
