    98UH5J-H component-copyModelName
    UHD Standard Signage

    Key Features

    Choose your Size

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (98UH5J-H)
      $
      $
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (98UH5J-H)
      $
      $
      LG Members Price
    Total

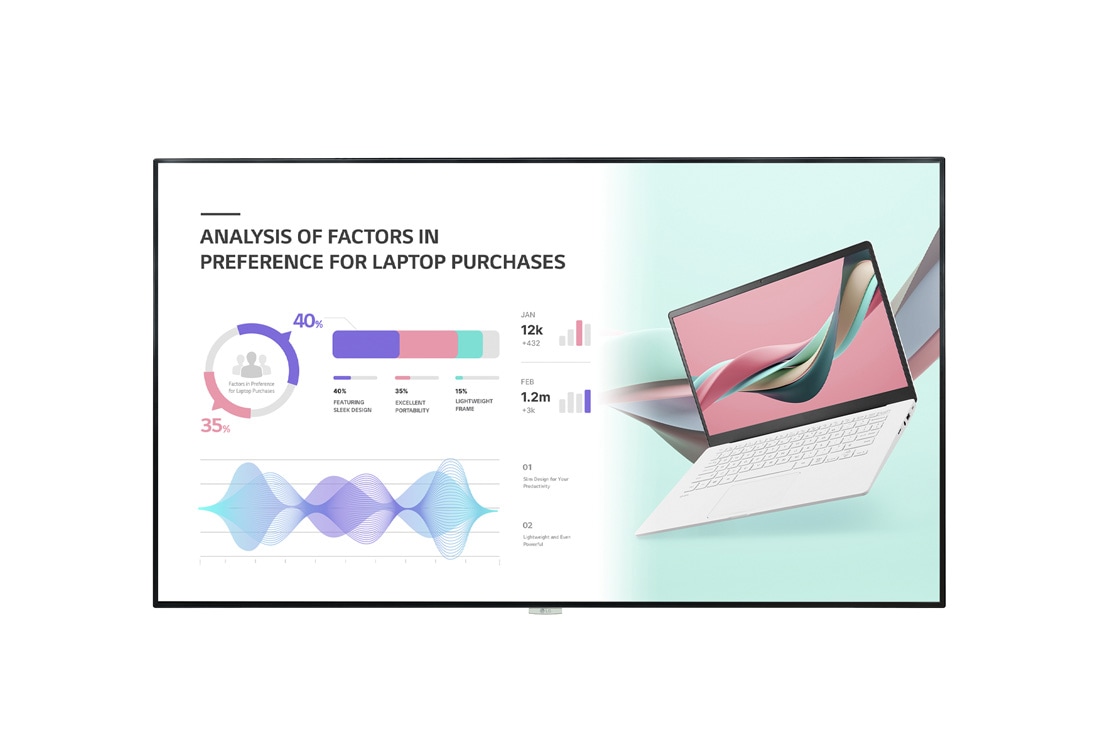

    UHD Standard Signage
    Contact Us

    New High Haze UHD
    Standard Signage

    A screen showing the meeting’s contents is installed on the meeting room’s wall. A screen showing the meeting’s contents is installed on the meeting room’s wall.
    * All images in this web page are for illustrative purposes only.

    Appropriate Display Brightness

    With a recommend brightness of 500 cd/m2 for indoor display, the UH5J-H series clearly delivers content and attracts public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls, etc.
    UH5J-H has a brightness of 500 nits, so it is clearly visible, even under strong light. UH5J-H has a brightness of 500 nits, so it is clearly visible, even under strong light.
    * Actual images available may differ from the example images shown.

    High-Performance with webOS

    LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
    A number of tasks can be done at the same time with the intuitive GUI. A number of tasks can be done at the same time with the intuitive GUI.

    Conformal Coating

    In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc.
    The UH5J-H has Conformal Coating on the power board to protect video wall even in a salty or humid environment. The UH5J-H has Conformal Coating on the power board to protect video wall even in a salty or humid environment.
    * Actual images (signage display) available may differ from the example images shown.
    UH5J-H is IP5x certified, so it is protected from dust and has less risk of performance degradation. UH5J-H is IP5x certified, so it is protected from dust and has less risk of performance degradation.

    IP5x Certified Design

    The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.
    The AV control system helps users control the UH5J-H. The AV control system helps users control the UH5J-H.

    Compatible with AV Control System

    The UH5J-H series has supported Crestron Connected? for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

    * Network based control
    Close
    Panel
    • Screen Size
      98"
      Panel Technology
      IPS
    • Back Light Type
      Direct
      Aspect Ratio
      16 : 9
    • Native Resolution
      3840 x 2160 (UHD)
      Refresh Rate
      60Hz
    • Brightness
      500nit (Typ.)
      Contrast Ratio
      1,200:1
    • Dynamic CR
      1,000,000:1
      Color gamut
      NTSC 72%
    • Viewing Angle(H x V)
      178 X 178
      Color Depth
      10bit, 1.07Billion colors
    • Response Time
      8ms (G to G)
      Surface Treatment(Haze)
      28%
    • Life time
      50,000Hrs (Typ.)
      Operation Hours (Hours/Day)
      24/7
    • Portrait / Landscape
      Yes / Yes
    Connectivity
    • Input
      HDMI (3, HDMI1/HDMI2 : HDCP 2.2/1.4, HDMI3 : HDCP 1.4), DP (1, HDCP2.2/1.3), DVI-D (HDCP1.4), Audio In, RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1)
      Output
      HDMI Out, Audio Out, RS232C OUT (1, 4pin Phone-jack)
    Mechanical Specification
    • Bezel Color
      Black
      Bezel Width
      Even bezel : 14.9mm
    • Weight(Head)
      66Kg
      Packed Weight
      99Kg
    • Monitor Dimension(W x H x D)
      2191.8 x 1246.8 x 86.1mm
      (without Handle and LG Logo)
      Carton Dimensions(W x H x D) (Box outer size)
      2342 x 1386 x 420mm
    • Handle
      Yes
      VESATM Standard Mount Interface
      800 x 400
    Key Feature
    • Key features
      Internal Memory 16 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Acceleration(Gyro) Sensor, Local Key Operation, webOS6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM mode, Wake on LAN,Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom
    Environment Conditions
    • Operation Temperature
      0 °C to 40 °C
      Operation Humidity
      10 % to 80 %
    Power
    • Power Supply
      AC 100-240V~, 50/60Hz
      Power Type
      Built-In Power
    Power Consumption
    • Typ.
      420W (TBD)
      Max.
      570W (TBD)
    • BTU (British Thermal Unit)
      1433 BTU/Hr(Typ.), 1945 BTU/Hr(Max) (TBD)
      Smart Enegy Saving(~70%)
      294W (TBD)
    • DPM
      0.5W
      Power off
      0.5W
    Sound
    • Speaker
      Yes
    Certification
    • Safety
      CB / NRTL
      EMC
      FCC Class "A" / CE / KC
    • ErP / Energy Star
      Yes (NewErP) / No (TBD)
    Software Compatibility
    • SuperSign CMS
      Yes
      SuperSign Control / Control+
      Yes / Yes
    • SuperSign WB
      Yes
      SuperSign Media Editor
      Yes
    • Mobile CMS
      Yes
      Signage 365 Care
      Yes
    Language
    • OSD
      English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic
    Accessory
    • Basic
      Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender

    To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
