    Outdoor LED
    Contact Us

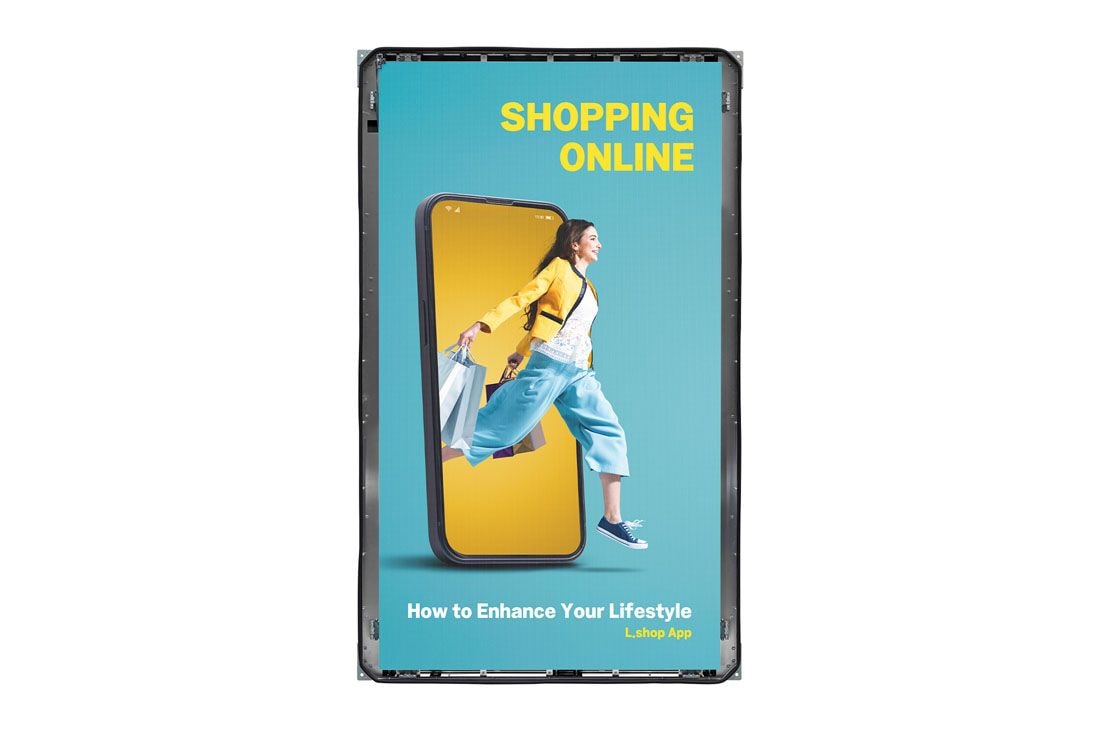

    Open-frame LED Display

    A display as tall as a person is installed on the street, and a woman walking by is watching an advertisement with clear image quality on its screen. A display as tall as a person is installed on the street, and a woman walking by is watching an advertisement with clear image quality on its screen.
    * All images in this page are for illustrative purposes only.
    * Availability of product may differ by region. Contact your local LG sales agent for details.

    Open-frame Type LED Signage

    GEAA is an open-frame LED that gives you the flexibility to customize the display to your exact preferences. It meets various customer needs by combining superior screen and controller technology with advanced heat dissipation.
    A large-sized display is installed on the street, and a woman is looking at a vivid-quality advertisement on the screen. A large-sized display is installed on the street, and a woman is looking at a vivid-quality advertisement on the screen.
    The GEAA is installed outdoors, and a man is watching advertisements on its screen, which remains clear and visible. The GEAA is installed outdoors, and a man is watching advertisements on its screen, which remains clear and visible.

    High Picture Quality

    With its high picture quality, GEAA delivers clear content that captures the attention of passersby. Additionally, its high contrast ratio and outstanding low gray-scale performance allow it to convey a wide range of information effectively.
    A woman in a car is looking at a DOOH (Digital Out Of Home media) advertisement on the side of the road. This display can operate within a wide temperature range of -20℃ to 50℃. A woman in a car is looking at a DOOH (Digital Out Of Home media) advertisement on the side of the road. This display can operate within a wide temperature range of -20℃ to 50℃.

    Wide Operating Temperature Range

    GEAA is suitable for outdoor environments exposed to wide temperature fluctuations. It can operate within a temperature range of -20℃ to 50℃
    The GEAA is capable of front installation. The GEAA is capable of front installation.

    Easy Installation and Maintenance

    GEAA offers front access, freeing customers from needing rear access space and minimizing limitations in installation and maintenance. Additionally, its screw-less design contributes to lower maintenance costs, leading to long-term savings.
    The GEAA, with its lowered power consumption, offers higher energy efficiency. The GEAA, with its lowered power consumption, offers higher energy efficiency.

    Efficient Energy Management

    You can enjoy energy savings as GEAA uses low power thanks to its operating technology.
    Close
    Physical Parameters
    • Pixel Configuration
      Single SMD
      Pixel Pitch(mm)
      P1.88
    • Module Resolution (WxH)
      72 X 128
      Module Dimensions(WxH,mm)
      135 X 240
    • Weight per Module (kg)
      0.32
      No. of Modules per Cabinet (WxH)
      8x8
    • Set Dimensions (W x H x D, mm)
      1202.8 x 2003 x 163.9
      Cabinet Dimensions (W x H x D, mm)
      1080*1920*47
    • Cabinet Resolution (WxH)
      576x1024
      Cabinet Surface Area (m2)
      2.0736
    • Weight per set(kg/unit)
      109
      Weight per Cabinet (kg/unit)
      60
    • Physical Pixel Density (pixels/m2)
      284,444
      Flatness of Cabinet (mm)
      ±1.0
    • Cabinet Material
      Aluminum
      Service Access
      Front (Cabinet only)
    OPTICAL SPECIFICATIONS
    • Max Brightness (After Calibration, nit)
      3,500
      Color Temperature (K)
      3,000 ~ 10,000
    • Visual Viewing Angle (Horizontal)
      170
      Visual Viewing Angle (Vertical)
      170
    • Brightness Uniformity
      0.95
      Color Uniformity
      ±0.003Cx,Cy
    • Contrast Ratio
      8,000:1
      Processing Depth (bit)
      14
    ELECTRICAL SPECIFICATIONS
    • Power Consumption (W/h, Max.)
      1750(Typ: 1420 @ 220V)
      Power Consumption (W/h, Avg : IEC62087 standard video)
      430
    • Power Consumption (W/m2, Max.)
      800
      Heat Dissipation (BTU/h/Cabinet, Max.)
      5630
    • Heat Dissipation (BTU/h/Cabinet, Avg.)
      1467
      Heat Dissipation (BTU/h/m2, Max.)
      2730
    • Power Supply (V)
      100 to 240
      Frame Rate (Hz)
      50 / 60
    • Refresh Rate (Hz)
      3840
    OPERATION SPECIFICATIONS
    • LED Lifetime (Half brightness)
      100,000
      Operating Temperature(℃)
      -20℃ to +50℃
    • Operating Humidity
      10~80%RH
      IP Rating Front
      IP54
    • IP Rating Rear
      IP20
    Standard
    • Certification
      CE, FCC, cTUVus, CB
      Class A
    Environment
    • Environment
      RoHS, REACH
    Controller
    • Controller
      Including
    • Datasheet
      • GEAA_Datasheet(low)_LG Outdoor LED_250521.pdf
    • Software

      To download Software, Please visit the Software Download Page (Click).

    • Manual

      To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

    To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
