GPEJ100 component-copyModelName

Outdoor LED for Stadium Perimeter

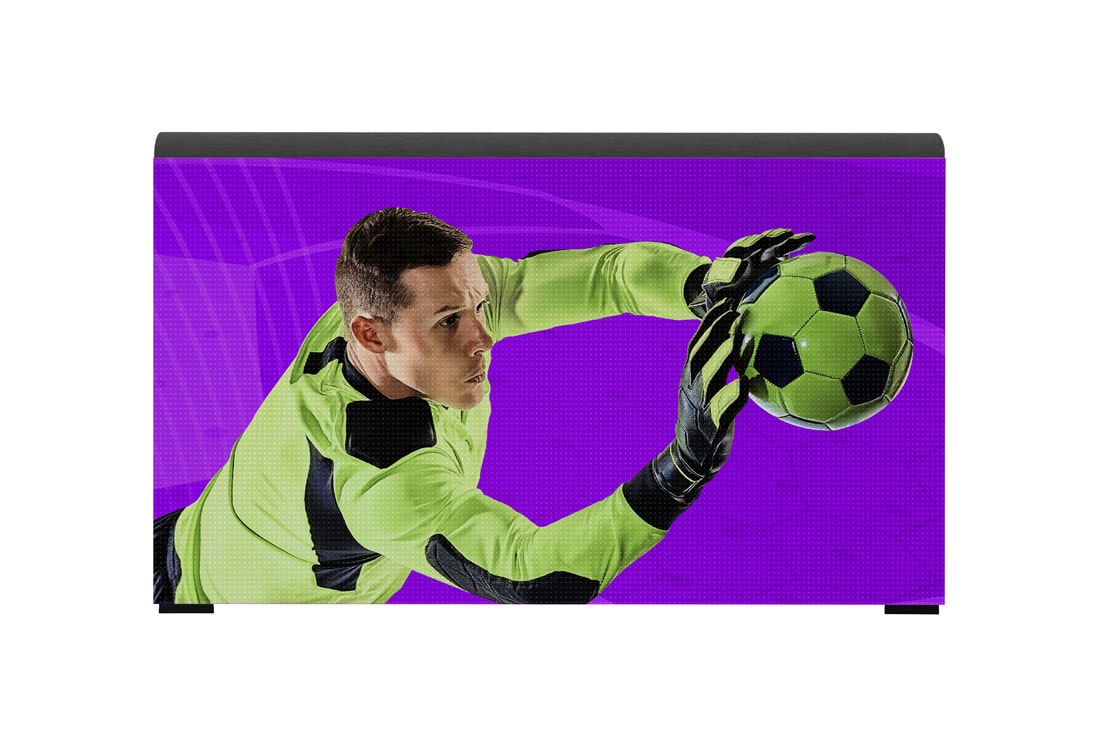

LG Outdoor LED for Stadium Perimeter, Front view with infill image, GPEJ100, thumbnail 1

LG Outdoor LED for Stadium Perimeter, Front view, GPEJ100, thumbnail 2

LG Outdoor LED for Stadium Perimeter, -45 degree side view, GPEJ100, thumbnail 3

LG Outdoor LED for Stadium Perimeter, -90 degree rear view, GPEJ100, thumbnail 4

LG Outdoor LED for Stadium Perimeter, +45 degree side view, GPEJ100, thumbnail 5

LG Outdoor LED for Stadium Perimeter, +90 degree rear view, GPEJ100, thumbnail 6

LG Outdoor LED for Stadium Perimeter, Rear view, GPEJ100, thumbnail 7

LG Outdoor LED for Stadium Perimeter, Top view, GPEJ100, thumbnail 8

LG Outdoor LED for Stadium Perimeter, Top view 2, GPEJ100, thumbnail 9

Discontinued

GPEJ100 component-copyModelName

Outdoor LED for Stadium Perimeter

Key Features

Pixel Pitch : 10 mm
Brightness : 6,000 nit
Service Access : Front and Rear
IP Rating : IP65
Protective Design for Players
Smooth Playback in Dynamic Motion

Add to Compare

component-OBScountrySelectDesc

Key Features

Pixel Pitch : 10 mm
Brightness : 6,000 nit
Service Access : Front and Rear
IP Rating : IP65
Protective Design for Players
Smooth Playback in Dynamic Motion

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Outdoor LED for Stadium Perimeter

At the stadium, a soccer game is being held, and LEDs are installed low on the wall along the edge of the field to show advertisements.

* All images in this page are for illustrative purposes only.

Some of the GPEJ series installed on the stadium’s field are sitting at an angle, and the players in the stadium are easily moving over the GPEJ series.

Design for Various Situations in Field

There are several rollers and hinges put in multiple places to allow immediate access to the site from the outside in the case of an emergency, making it easy and convenient to create a safety gate and emergency exit.

The GPEJ series installed on the stadium’s field consist of rubber louvers and an EVA top, so the players are prevented from getting seriously injured even if they hit the LED.

Protective Design for Players

Taking into consideration the safety of players and staff, GPEJ series has been specially designed with rubber louvers attached in front of the cabinet and EVA Top to prevent serious injury.

* GPEJ is built to UEFA specifications.
* EVA(Ethylene-vinyl acetate) is an elastomeric polymer that produces materials which are "rubber-like" in softness and flexibility.

GPEJ series has a brightness of 6,000 nits, so it is clearly visible, even under strong light.

Outstanding Visibility

Offering a powerful 6,000 nits of brightness, this super-bright display excels outdoors even in direct sunlight, instantly capturing attention and effectively delivering content.

The LED screen installed on the stadium's field is being filmed with camera. Although the content is identical, the conventional screen shows black bars while the GPEJ series is clearly visible just like the original screen.

Smooth Playback in Dynamic Motion

GPEJ series with a high refresh rate of 7,680 Hz gives viewers a clearer view by reducing the black bars, blurring, and flickering that commonly occur during video playback.

* It shows a higher refresh rate than 4,000 Hz in the existing LBB series.

The IP65 certified cabinet allows GPEJ series to work well even in rainy weather.

Reliable Weatherproof Design

The front and back of the unit case are both IP65 certified, allowing for stable operation in raniy and dusty environment.

* IP65 test was conducted by swashing water on the front and back of the product for 10 minutes.

Compatibility with LG Software Solutions

When connected with LG's CVEA system controller, the GPEJ series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.

The LG employee is remotely monitoring the GPEJ series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables GPEJ series to be compatible with LG software solutions.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* LG Software solutions needs to be purchased separately.

Physical Parameters

Pixel Configuration

Single SMD

Pixel Pitch (mm)

10.00
Module Resolution (W x H)

40 × 30

Module Dimensions (W x H, mm)

400x300
Weight per Module (kg)

1.65

No. of Modules per Cabinet (W × H)

4X3
Cabinet Resolution (W × H)

160x90

Cabinet Dimensions (W x H x D, mm)

1,600x900x105
Cabinet Surface Area (m2)

1.440

Weight per Cabinet (kg/unit)

55.0
Weight per Square Meter (kg/m2)

38.2

Physical Pixel Density (pixels/m2)

14,400
Flatness of Cabinet (mm)

±1.0

Cabinet Material

Al
Service Access

Front and Rear

OPTICAL SPECIFICATIONS

Max Brightness (After Calibration, nit)

6,000

Color Temperature (K)

3,500~8,500
Visual Viewing Angle (Horizontal)

160

Visual Viewing Angle (Vertical)

110
Brightness Uniformity

97%

Color Uniformity

±0.05Cx,Cy
Contrast Ratio

7,000:1

Processing Depth (bit)

16 (HDR10, HDR10 Pro)

ELECTRICAL SPECIFICATIONS

Power Consumption (W/Cabinet, Max.)

1,000

Power Consumption (W/Cabinet, Avg.)

400
Power Consumption (W/m2, Max.)

694

Heat Dissipation (BTU/h/Cabinet, Max.)

3,413
Heat Dissipation (BTU/h/Cabinet, Avg.)

1,365

Heat Dissipation (BTU/h/m2, Max.)

2,368
Power Supply (V)

100 to 240

Frame Rate (Hz)

50 / 60
Refresh Rate (Hz)

7,680

OPERATION SPECIFICATIONS

LED Lifetime (Half brightness)

100,000

Operating Temperature(℃)

-30°C to +50°C
Operating Humidity

0~90%RH

IP Rating Front

IP65
IP Rating Rear

IP65

Certification

Certification

CE, FCC, ETL

Environment

Environment

RoHS, REACH

Controller

Controller

CVEA

Series

Series

GPEJ

Dimension
- GPEJ100-GN-v1.0 (1).dwg
- GPEJ100-GN-v1.0.pdf
Datasheet
- GPEJ-Series_Datasheet(low)_LG-Outdoor-LED_221212.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
