ADD TO WISHLIST

Discontinued

GREF100 component-copyModelName

Outdoor Ribbon Board LED

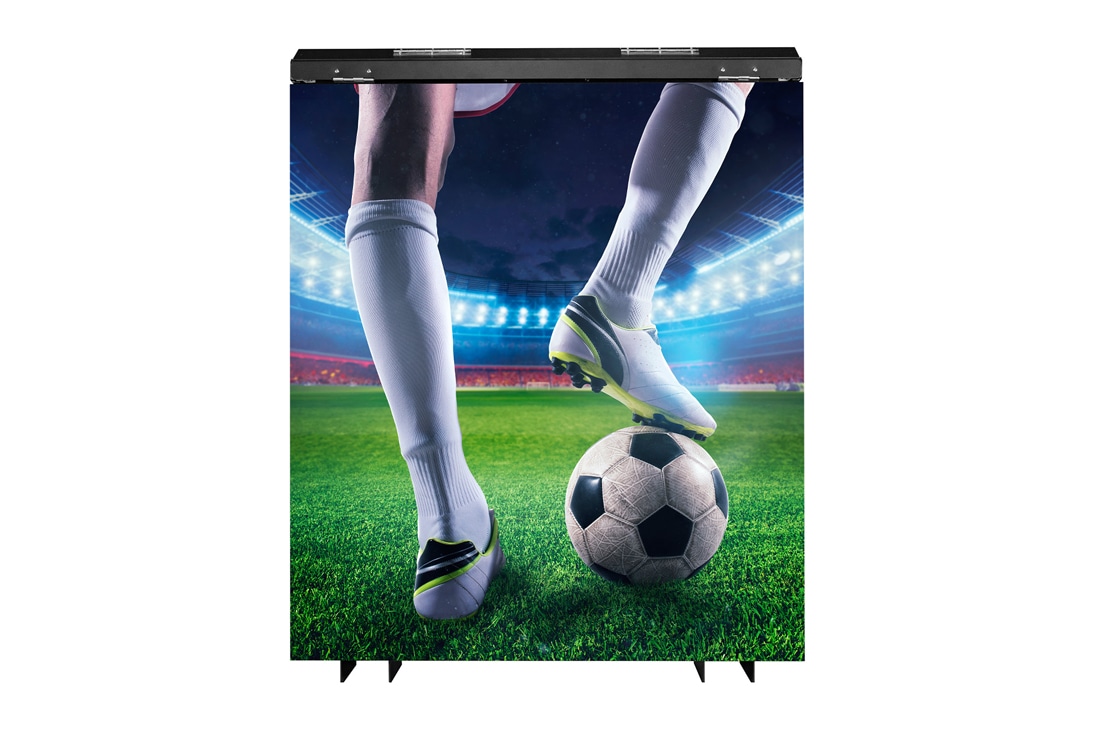

LG Outdoor Ribbon Board LED, Front view with infill image, GREF100, thumbnail 1

LG Outdoor Ribbon Board LED, Front view, GREF100, thumbnail 2

LG Outdoor Ribbon Board LED, -45 degree side view, GREF100, thumbnail 3

LG Outdoor Ribbon Board LED, -90 degree rear view, GREF100, thumbnail 4

LG Outdoor Ribbon Board LED, +45 degree side view, GREF100, thumbnail 5

LG Outdoor Ribbon Board LED, +90 degree rear view, GREF100, thumbnail 6

LG Outdoor Ribbon Board LED, Rear view, GREF100, thumbnail 7

LG Outdoor Ribbon Board LED, Top view, GREF100, thumbnail 8

Discontinued

GREF100 component-copyModelName

Outdoor Ribbon Board LED

Key Features

Pixel Pitch: 10 mm
Brightness: 6,000 nit
IP Rating: IP65
Smooth Playback in Dynamic Motion
Detailed Expression of Color Depth

Add to Compare

component-OBScountrySelectDesc

Key Features

Pixel Pitch: 10 mm
Brightness: 6,000 nit
IP Rating: IP65
Smooth Playback in Dynamic Motion
Detailed Expression of Color Depth

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Outdoor Ribbon Board LED

A baseball game is being played at a crowded baseball stadium. In the stadium, Ribbon Board LEDs are installed around the walls of each floor, and the screen is showing beer advertisements.

* All images in this page are for illustrative purposes only.

GREF series has a brightness of 6,000 nits, so it is clearly visible, even under strong light.

Outstanding Visibility

Offering a powerful 6,000 nits of brightness, this super-bright display excels outdoors even in direct sunlight, instantly capturing attention and effectively delivering content.

The large LED screen close to the stadium’s stands is being filmed with camera. Although the content is identical, the conventional screen shows black bars while the GREF series is clearly visible just like the original screen.

Smooth Playback in Dynamic Motion

GREF series with a high refresh rate of 7,680 Hz gives viewers a clearer view by reducing the black bars, blurring, and flickering that commonly occur during video playback.

The 8-bit screen’s greyscale is not smooth and the color is expressed unnaturally because the steps are distinguished while the 16-bit screen expresses the color smoothly with a higher greyscale level.

Detailed Expression of Color Depth

16-bit color processing provides a higher greyscale level, which seamlessly displays different depths and densities of colors without distortion, thereby displaying more realistic and sophisticated content.

The IP65 certified cabinet allows GREF series to work well even in rainy weather.

Reliable Weatherproof Design

The front and back of the unit case are both IP65 certified, allowing for stable operation unaffected by outdoor environmental factors such as wet weather and dust.

Compatibility with LG Software Solutions

When connected with LG's CVEA system controller, the GREF series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.

The LG employee is remotely monitoring the GREF series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables GREF series to be compatible with LG software solutions.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* SuperSign CMS service needs to be purchased separately.

Physical Parameters

Pixel Configuration

Single SMD

Pixel Pitch(mm)

10.00
Module Resolution (WxH)

40x30

Module Dimensions(WxH,mm)

400x300
Weight per Module (kg)

1.65

No. of Modules per Cabinet (WxH)

2X3
Cabinet Resolution (WxH)

80x90

Cabinet Dimensions (W x H x D, mm)

800x900x130
Cabinet Surface Area (㎡)

0.720

Weight per Cabinet (kg/unit)

22.0
Weight per Square Meter (kg/m2)

30.6

Physical Pixel Density (pixels/m2)

10,000
Flatness of Cabinet (mm)

±1.0

Cabinet Material

Al
Service Access

TOP

OPTICAL SPECIFICATIONS

Max Brightness (After Calibration, nit)

6,000

Color Temperature (K)

3,500~8,500
Visual Viewing Angle (Horizontal)

160

Visual Viewing Angle (Vertical)

110
Brightness Uniformity

97%

Color Uniformity

±0.05Cx,Cy
Contrast Ratio

7,000:1

Processing Depth (bit)

16 (HDR10, HDR10 Pro)

ELECTRICAL SPECIFICATIONS

Power Consumption (W/Cabinet, Max.)

500

Power Consumption (W/Cabinet, Avg.)

200
Power Consumption (W/m2, Max.)

694

Heat Dissipation (BTU/h/Cabinet, Max.)

1,706
Heat Dissipation (BTU/h/Cabinet, Avg.)

683

Heat Dissipation (BTU/h/m2, Max.)

2,368
Power Supply (V)

100 to 240

Frame Rate (Hz)

50 / 60
Refresh Rate (Hz)

7,680

OPERATION SPECIFICATIONS

LED Lifetime (Half brightness)

100,000

Operating Temperature(℃)

-30°C to +50°C
Operating Humidity

0~90%RH

IP Rating Front

IP65
IP Rating Rear

IP65

Certification

Certification

CE, FCC, ETL

Environment

Environment

RoHS, REACH

Controller

Controller

CVEA

90 Degree Corner Cut

90 Degree Corner Cut

Yes

Series

Series

GREF

Dimension
- GREF100-GN-v1.1 (1).dwg
- GREF100-GN-v1.1.pdf
Datasheet
- GREF-Series_Datasheet(low)_LG-Outdoor-LED_220801.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
