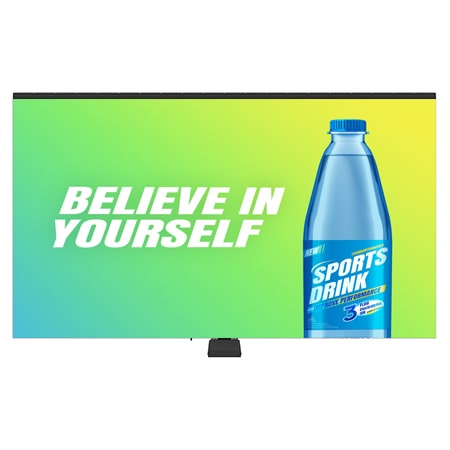

    LBB100DD3 component-copyModelName
    Stadium Series (Perimeter)

    Key Features

    Choose your Pitch

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (LBB100DD3)
      $
      $
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (LBB100DD3)
      $
      $
      LG Members Price
    Total
    Stadium Series (Perimeter)
    Contact Us
    Qualified for UEFA Criteria Qualified for UEFA Criteria

    Qualified for UEFA Criteria

    The LBB series meets the LED technical specifications of UEFA (Union of European Football Associations) that a perimeter LED signage should follow when installed in UEFA’s stadiums.

    * Full approval from UEFA can only be given once a system is checked on site.
    Quick and Simple Maintenance Quick and Simple Maintenance

    Quick and Simple Maintenance

    The LED module can be replaced only in one minute from both front and rear sides, minimizing maintenance time and spatial constraints. Also, every electric component is easily serviced.
    Electrical Safety Electrical Safety

    Electrical Safety

    A circuit breaker is included in each cabinet not only to protect people from electric shock by current leakage causes, but also to provide security from an overcurrent.
    Redundancy Support Redundancy Support

    Redundancy Support

    The LBB series supports both power and signal redundancy to reassure the operator and ensure the continuous operation even if there is power failure or no signal.
    Design for Injury Prevention Design for Injury Prevention

    Design for Injury Prevention

    In consideration of the safety of players and staffs, the front and top parts of a cabinet are designed with a rubber pad and a rubber louver to prevent serious injury caused by hitting it during a game.
    Foldable Design Foldable Design

    Foldable Design

    In case of an emergency, people in the stadium can escape quickly and easily by folding down the cabinets.
    Close
    Physical Parameters
    • Pixel Configuration
      3 in 1 SMD
      Pixel Pitch (mm)
      10.00
    • Module Resolution (W x H)
      40 × 15
      Module Dimensions (W x H, mm)
      400 × 150
    • Weight per Module (kg)
      1.00
      No. of Modules per Cabinet (W × H)
      4 × 6
    • Cabinet Resolution (W × H)
      160 × 90
      Cabinet Dimensions (W × H × D)
      1,600 × 900 × 124
    • Cabinet Surface Area (m2)
      1.440
      Weight per Cabinet (kg/cabinet)
      65.0
    • Weight per Square Meter (kg/m2)
      45.1
      Physical Pixel Density (pixels/m2)
      10,000
    • Flatness of Cabinet
      ±0.5 mm
      Cabinet Material
      Aluminum Profile
    • Service Access
      Module : Front and Rear
      PDU : Rear
    Optical Specifications
    • Min. Brightness (After Calibration)
      6,000
      Color Temperature
      3,500 ~ 9,000
    • Visual Viewing Angle (Horizontal/Vertical)
      160 × 120
      Brightness Uniformity
      97%
    • Color Uniformity
      ± 0.003 Cx,Cy
      Contrast Ratio
      12,000
    • Processing Depth (bit)
      14
    Electrical Specifications
    • Power Consumption (W/Cabinet, Max.)
      750
      Power Consumption (W/Cabinet, Avg.)
      250
    • Power Consumption (W/m2, Max.)
      520
      Heat Dissipation (BTU/h/Cabinet, Max.)
      2,559
    • Heat Dissipation (BTU/h/Cabinet, Avg.)
      853
      Heat Dissipation (BTU/h/m2, Max.)
      1,774
    • Power Supply (V)
      100 to 240
      Frame Rate (Hz)
      50 / 60
    • Refresh Rate (Hz)
      3,840
    Operation Conditions
    • Lifetime (Hours to Half Brightness)
      100,000
      Operating Temperature (°C)
      -20℃ to +45℃
    • Operating Humidity
      10-99%RH
      IP Rating Front
      IP65
    • IP Rating Rear
      IP65
    Certification
    • Certification
      CE,FCC,ETL
    Environment
    • Environment
      RoHS
    Controller
    • Controller
      LCIN006
    Series
    • Series
      LBB
    • Dimension
      • (2D Drawing)LG LBB100DD3.dwg
      • (2D Drawing)LG LBB100DD3.pdf
    • Datasheet
      • LG Stadium LED_LBB series_Datasheet(web)_2006.pdf
    • Software

      To download Software, Please visit the Software Download Page (Click).

    • Manual

      To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
