Micro LED Display

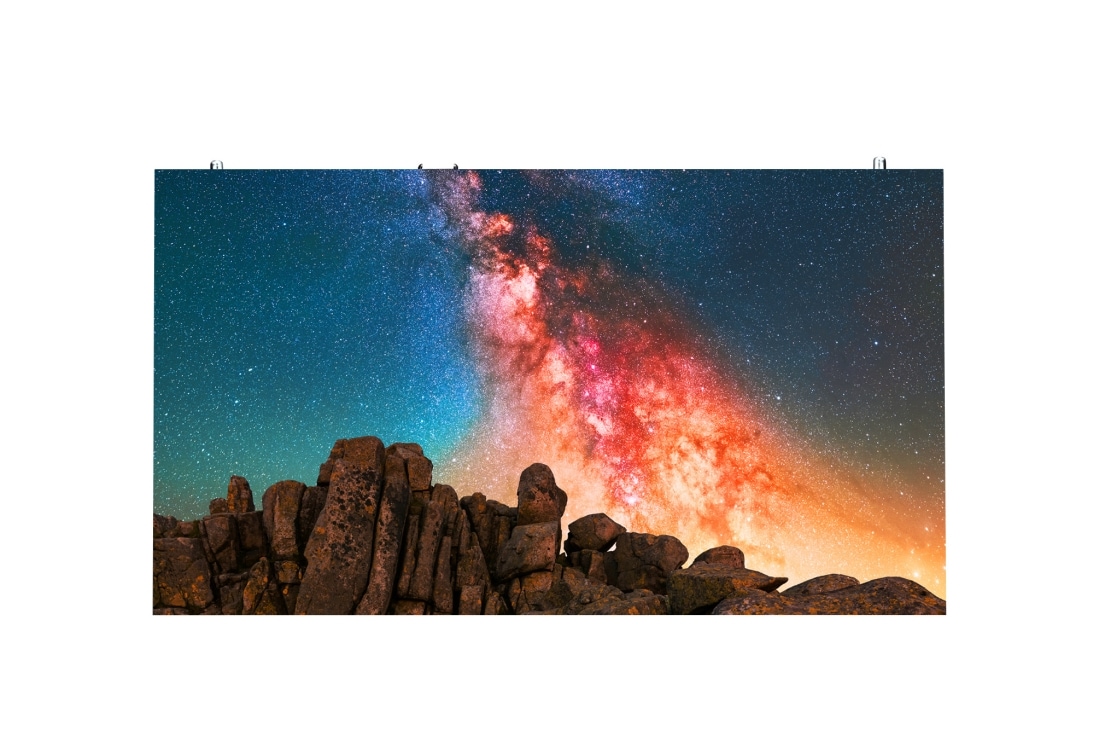

LG Micro LED Display, Front view with infill image, LSAQ, thumbnail 1

LG Micro LED Display, Front view, LSAQ, thumbnail 2

LG Micro LED Display, -45 degree side view, LSAQ, thumbnail 3

LG Micro LED Display, -90 degree side view, LSAQ, thumbnail 4

LG Micro LED Display, +45 degree side view, LSAQ, thumbnail 5

LG Micro LED Display, +90 degree side view, LSAQ, thumbnail 6

LG Micro LED Display, Top view, LSAQ, thumbnail 7

LG Micro LED Display, Close-up image of top left corner, LSAQ, thumbnail 8

LG Micro LED Display, Rear view, LSAQ, thumbnail 9

LG Micro LED Display, +45 degree rear side view, LSAQ, thumbnail 10

Discontinued

LSAQ component-copyModelName

Micro LED Display

Key Features

Pixel Pitch : 0.94 mm
Brightness : Max. 600 / Peak 1,200 nit
Remote Power and Power Redundancy
Achieving True Black
Intelligent Processor
IP Rating (Front / Rear) : IP50 / IP20

Add to Compare

component-OBScountrySelectDesc

Key Features

Pixel Pitch : 0.94 mm
Brightness : Max. 600 / Peak 1,200 nit
Remote Power and Power Redundancy
Achieving True Black
Intelligent Processor
IP Rating (Front / Rear) : IP50 / IP20

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Micro LED Display

Micro LED Display with Detachable PSU

The control room has a large screen that is divided into sections, providing detailed and clear information. It is being monitored by a large number of people.

* All images in this page are for illustrative purposes only.

Remote Power and
Power Redundancy

LSAQ’s Remote PSU (Power Supply Unit) is designed to be installed separately from the screen, rather than inside the cabinet. This unique design allows for hot swapping, which means that failed Power Module can be replaced without disrupting the operation of the screen. This results in minimal downtime and maximizes efficiency, making it an ideal choice for businesses and organizations that require uninterrupted performance.

The Power Supply Unit of LSAQ is positioned in the Power Room instead of inside the cabinet.

Enhanced Uniformity with
LST (LG Surface Treatment) Technology

LG MAGNIT's innovative Chip Transfer and Surface Treatment Technology enhances white uniformity and reduces color distortion from any angle, delivering true and accurate wide-angle viewing experiences. This technology ensures remarkable color uniformity, resulting in superior image quality.

While conventional screens distort colors (appearing red) at different angles, MAGNIT displays accurate results from every viewing angle.

Achieving True Black with
Direct Chip Mounting

LG MAGNIT's advanced and precise method for direct bonding micro-sized chips onto circuit boards combined with the black coating technology, creates a stunning black expression that stands out compared to SMD-type LED displays. This makes it the ideal choice for displaying content that requires deep black color, ensuring that every image is rich, vibrant, and true to life.

Traditional SMD-type LEDs have larger chips, and the casing color used for the LED chips gives the screen an overall gray appearance. In contrast, Micro LEDs directly embed micro-sized chips on the substrate, with the non-chip areas being black, resulting in better representation of black color.

* Based on LG's conventional LED Signage

Accurate Colors as Intended

By carefully selecting an LED chip which is a key factor to determine color purity, its narrowed wavelength allows LG MAGNIT to show uniform colors across the screen. Furthermore, the enhanced Gamut Transfer technology supports it to describe colors close to the original color, which is essential for places where exact color representation is demanding.

The Ferris wheel shines brightly with vibrant colors.

Ai-powered Viewing Experience with Alpha 7 Processor

LG MAGNIT features an advanced AI-powered Alpha 7 Intelligent Processor that optimizes clarity and sharpness to deliver an outstanding viewing experience. Its advanced AI technology enables the processor to recognize and analyze content, tailoring the display settings for each individual scene to create a highly realistic and immersive image possible.

Through optimization by the Alpha 7 Intelligent Processor, nebulae in the night sky appear more vibrant and exhibit enhanced sharpness.

Sleek Look with Smooth Surface

The screen surface of LG MAGNIT is very smooth just as LCD, making it looks nice even when the screen is off. Also, audiences or installers feel soft when touching the screen. If fingerprints are on the surface, they can be simply removed by wiping with a soft cloth without the need for any chemicals.

A smooth-surfaced large screen is installed on the wall.

Care Less with Sturdy Design

Through several layers of coated film, LG MAGNIT can protect its LED chips from risks caused by water drops, dust, static electricity or physical impacts. Considering that it is usually installed in public places where many people come and go, its stability is vitally important to minimize unforeseen accidents.

Protecting LED chips from water drops, dust, static electricity and physical impacts

* Based on in-house testing in accordance with the certification criteria, or under actual operating conditions.

Compatibility with
LG Software Solutions

When connected with LG's CSAB system controller, the LSAQ series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.

The LG employee is remotely monitoring the LSAQ series installed in a different place by using a cloud-based LG monitoring solution.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* LG Software solutions needs to be purchased separately.

Physical Parameters

Pixel Configuration

Micro

Pixel Pitch (mm)

0.9375
Module Resolution (W x H)

320 × 120

Module Dimensions (W x H, mm)

300 × 112.5
Weight per Module (kg)

0.19

No. of Modules per Cabinet (W × H)

2 × 3
Cabinet Resolution (W × H)

640 × 360

Cabinet Dimensions (W x H x D, mm)

600x337.5x44.9
Cabinet Surface Area (m2)

0.203

Weight per Cabinet (kg/unit)

6.4
Weight per Square Meter (kg/m2)

31.6

Physical Pixel Density (pixels/m2)

1,137,778
Flatness of Cabinet (mm)

±0.5

Cabinet Material

Extrusion Aluminum
Service Access

Front and Rear

OPTICAL SPECIFICATIONS

Max. Brightness (After Calibration, nit)*

600 / Peak 1,200

Color Temperature (K)

3,200~9,300 / Default 7,300
Visual Viewing Angle (Horizontal)

160

Visual Viewing Angle (Vertical)

160
Brightness Uniformity

95%

Color Uniformity

±0.02Cx,Cy
Contrast Ratio

100,000:1 @10lux

Processing Depth (bit)

20 (HDR10, HDR10 Pro)
Notice

* These values represent the maximum measurable specifications of the product. Actual performance or specifications may vary depending on the specific product and usage environment.

ELECTRICAL SPECIFICATIONS

Power Consumption (W/Cabinet, Max.)

67

Power Consumption (W/Cabinet, Avg.)

40
Power Consumption (W/m2, Max.)

331

Heat Dissipation (BTU/h/Cabinet, Max.)

229
Heat Dissipation (BTU/h/Cabinet, Avg.)

137

Heat Dissipation (BTU/h/m2, Max.)

1,132
Power Supply (V)

48 Vdc

Frame Rate (Hz)

50 / 60
Refresh Rate (Hz)

3,840

OPERATION SPECIFICATIONS

LED Lifetime (Half brightness)

100,000

Operating Temperature(℃)

0℃ to +40℃
Operating Humidity

10 ~ 80%RH

IP Rating Front

IP50
IP Rating Rear

IP20

Standard

Certification

Safety 60950-1,
EMC Class B,
BS476 Part7 Class2Y

Environment

Environment

RoHS

Controller

Controller

CSAB-00915D

Series

Series

LSAQ

Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
