LTAK140-GV component-copyModelName

Transparent LED Film with a Smaller LED Package Size

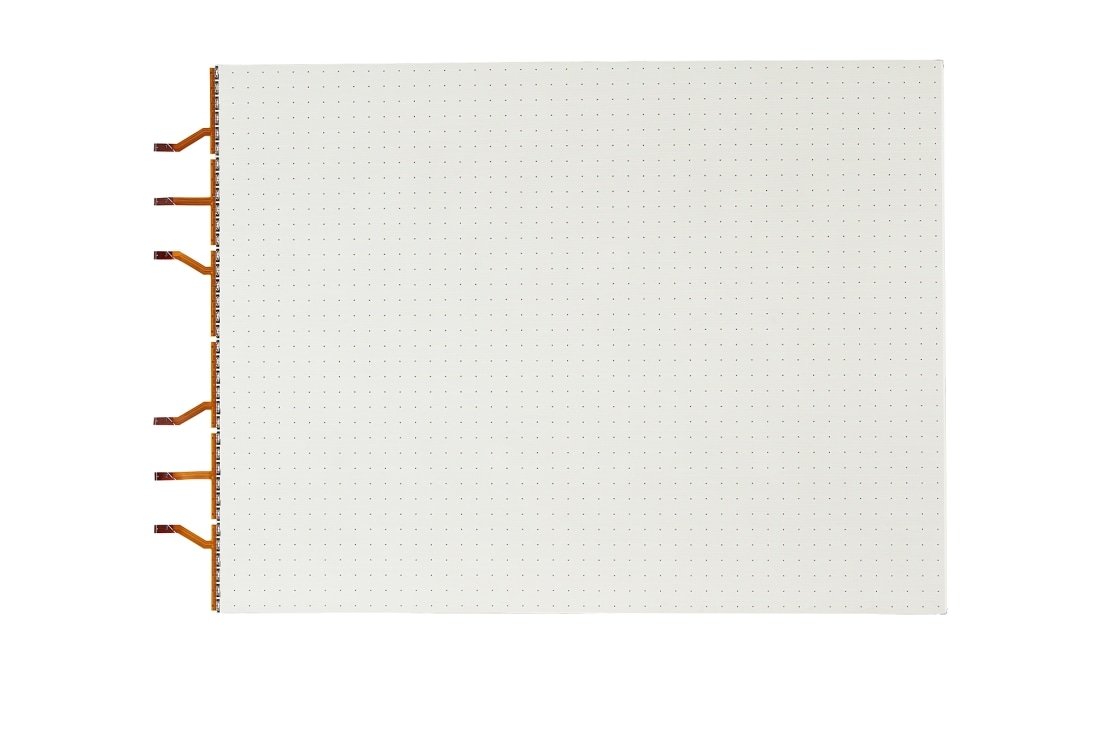

LG Transparent LED Film with a Smaller LED Package Size, Front view, LTAK140-GV, thumbnail 1

LG Transparent LED Film with a Smaller LED Package Size, -45 degree side view, LTAK140-GV, thumbnail 2

LG Transparent LED Film with a Smaller LED Package Size, -90 degree side view, LTAK140-GV, thumbnail 3

LG Transparent LED Film with a Smaller LED Package Size, +45 degree side view, LTAK140-GV, thumbnail 4

LG Transparent LED Film with a Smaller LED Package Size, Rear view, LTAK140-GV, thumbnail 5

LG Transparent LED Film with a Smaller LED Package Size, Top view, LTAK140-GV, thumbnail 6

LG Transparent LED Film with a Smaller LED Package Size, Detail view, LTAK140-GV, thumbnail 7

Discontinued

LTAK140-GV component-copyModelName

Transparent LED Film with a Smaller LED Package Size

Key Features

Pixel Pitch : 13.7 ± 0.2 mm (14)
LED Type : R, G, B 3 in 1 Color Package (SMD0909)
Brightness : 2,100 nit (Typ.)
Transmittance : 60% (Typ.)

Add to Compare

component-OBScountrySelectDesc

Key Features

Pixel Pitch : 13.7 ± 0.2 mm (14)
LED Type : R, G, B 3 in 1 Color Package (SMD0909)
Brightness : 2,100 nit (Typ.)
Transmittance : 60% (Typ.)

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Transparent LED Film with a Smaller LED Package Size

Bring New Life to
Transparent Space

Transparent LED films are attached to the offices’ glass walls and the handrail glass inside the car dealership, and they are showing car advertisements well.

* All images in this page are for illustrative purposes only.

Superb Transparency

The LG Transparent LED film reflects the object behind the product even after the product is attached and turned off. This offers a wide-open view while blending into existing interior design smoothly and delivers various information effectively by attracting the attention of passersby. And, thanks to the shrinking size of LED package in LTAK140-GV, the transparent display has become even more transparent, providing an enhanced customer experience.

LG Transparent LED film shows information when the power is turned on, and reflects the background behind the product when the power is turned off.

* Transparency : Typ. 60%
* The above image is for illustrative purposes only and may be different from the actual product.

LG Transparent LED film is self-adhesive, so it can attach to the surface of the window easily.

Self-adhesive Film

The LG Transparent LED film is self-adhesive, so it can be easily attached to the surfaces of existing window glass without the need for any complicated construction.

* The above image is for illustrative purposes only and may be different from the actual product.
* Installation may be challenging depending on the installation and performance environment.

By adding film vertically or horizontally, or by trimming film, the film can be flexibly resized.

Outstanding Expandability and Flexibility

The size and layout of the film can be customized to fit into the installation area. It can be expanded by adding more films in a vertical or horizontal way, or cut in parallel with the bezel to meet size requirements.

Enhanced Brightness and Control

The LED film with smaller pixel pitch, 14mm, and advanced brightness of up to 2,100nit(cd/m2)* attracts the attention of passersby while displaying a wide range of colors. Also, by using Control Manager solution, you can adjust and set brightness by timeline to deliver messages with optimal brightness.

Transparent film of store window has been adjusted to 2,100 nits in bright day and 900 nits in dark night.

* The examined brightness may differ from testing environments including a photometer.
* The above image is for illustrative purposes only and may be different from the actual product.
* Control Manager Solution is included in webOS basically.

LG webOS is compatible with SCAP, HTML, CSS and JavaScript.

webOS Smart Platform

LG webOS is a web-centric platform, making it easier for SIs and developers to build web-based solutions according to various environments. By supporting SCAP and compatibility with HTML, CSS, and JavaScript, you can save time and labor costs.

* webOS API will be provided to authorized SIs and developers.
* SCAP : Signage Common Application Platform. API interface service for SIs.
* CSS : Cascading Style Sheets

Control Manager

Through the Control Manager, available on internet-connected devices, you can set, control contents and monitor the status of multiple displays in different locations in real time. Especially for LG Transparent LED film installed on large area, the Control Manager helps you to play and check contents in easier way.

* Up to 75 units of T-LED Films are recommended to be connected to each(one) LAN OUT port in a controller.

Real-time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

Through ConnectedCare service, display status of the workplace can be managed remotely.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.

LG Transparent LED Film Introduction Video thumbnail

LG Transparent LED Film Introduction Video (LAT140)

Experience the Colors of Transparency

Watch now

Case Study [Public Space]

LG Transparent LED Film (LAT140)

Find a variety of business stories whose values are increased by LG Transparent Display

Watch the Full Movie

LTAK140-GV

Pixel Pitch

13.7±0.2mm (14)

LED Type

R, G, B 3in1 Color Package (SMD0909)
Resolution

48 x 36

Pixels per Film

1,728
Physical Pixel Density(pixels/㎡)

5,102

Brightness

Typ.2,100nit
Contrast Ratio

≥ 100,000:1

Luminance Uniformity

≥ 70%
Chromaticity Uniformity

Δu’v’≤0.015

Viewing Angle (H x V)

120 x 120
Life Time (Brightness 50%)

50,000 Hrs

Daily Usage

24h / 7days
Warranty

2 year

Transparency

Typ 60%
Operating Temperature

0℃ ~ 45℃ (Instaliling at indoor glass)

Curved Installation

Not Available (Flat only)
Film Trimming

Yes (horizontal direction according to Bezel only)

Color Processing

(9bit) 500/500/500 Level ( R, G, B)
Colors

125,000,000 Colors

Color Chromaticity

Cx: 0.25±0.03, Cy : 0.33±0.03
Dimension (W x H x D)

655 X 492 X 2.6 mm
(with front & back protection film)

Weight

0.97kg
Power Consumption

37W per Film

1st Bezel
(ACC-LTAK14V1)

Interface

Input : RGMII
Output : Differential Serial

Dimension (W x H x D)

69.4 x 492 x 25mm
Weight

0.4Kg

Power Consumption

37W per Film
Accessory

DC Jack Connection cable(1100mm) 1ea,
DC Jack Connection cable(240mm) 1ea
Screw 2 type, Gasket Rubber 3 type, Cable hole cover 1 type,
ESG, Regulation book, Warranty Card

Common Bezel
(ACC-LTAK14V2)

Interface

Input : Differential Serial
Output : Differential Serial

Dimension (W x H x D)

51.4 x 492 x 25mm
Weight

0.3Kg

Power Consumption

37W per Film
Accessory

DC Jack Connection cable(240mm) 2ea, Screw 2 type,
Gasket Rubber 2 type, Cable hole cover 2 type,
ESG, Regulation book, Warranty Card

Adaptor
(ACC-LATP1)

Model No.

ACC-LATP1

Dimension (W x H x D)

183*86*28mm
Weight

769g

Input

100~240V, 50~60Hz
Output

19.5V/10.8A (210W)

Color

White
DC output cable

14AWG, 1.5m

Type

L Type
Accessory

Power Cord, Regulation Book

Unit Controller
(LCLG141U)

Resolution

960x540 (1/4 FHD)

Interface

Input : LVDS
Output : RJ45 x4EA
Maximum Transmission Length

100m (Cable type: CAT5E, CAT6)

Dimension (W x H x D)

293 x 188.7 x 37mm
Weight

1.5Kg

Temperature Sensor

Yes
Power Consumption

20 W

Accessory

Power cord, LVDS MCX cable, ESG, Regulation book, Warranty Card

System Controller
(LCLG002-T)

Video - Max. Input Resolution

DP : 1920x1080@60Hz
HDMI : 1920x1080@60Hz
DVI-D : 1920x1080@60Hz

Interface - Digital (w/ HDCP) - HDMI

Input : 1EA
Interface - Digital (w/ HDCP) - DP

Input : 1EA
Output : 1EA

Interface - Digital (w/ HDCP) - DVI-D

Input : 1EA
Interface - Comm. Port - RS-232C

Input : 1EA (Phone Jack Type)
Output : 1EA (Phone Jack Type)

Interface - Comm. Port - RJ-45

Input : 1EA
Output : 2EA (1EA to connect film with LED Indicator)
Interface - Comm. Port - IR Receiver (w/ Light Sensor)

1EA (Phone Jack Type) : Used for installation

Interface - USB3.0

1EA
Interface - LVDS

Output : 1EA

Dimension (W x H x D mm)

293 x193.3 x 40.1mm
Weight (Head, Kg)

1.6kg

Temperature Sensor

Yes
Light Sensor

Yes

Source Selection

HDMI, DVI-D, DP
TPC (Temporal Peak luminance Control)

Yes

Motion Eye Care

Yes
Power Consumption

17W

CMS S/W

Yes (2.9)
LG ConnectedCare

Yes (2.7)

Accessory

Power cord, IR+Bright Sensor (1.5m),
4P Phone-to-RS232C Gender, ESG, Regulation book,
Warranty Card

One-box controller(Unit + System Controller)
(CTAA-140G)

Resolution

480x270 (1/16 FHD)

Maximum Transmission Length

100m (Cable type : CAT5E, CAT6)
Dimension (W x H x D)

333 x186.8 x 40.1mm

Weight

1.8.2Kg
Video - Max. Input Resolution

HDMI : 1920x1080@60Hz

Interface - Digital (w/ HDCP) - HDMI

Input : 1EA
Interface - Comm. Port - RS-232C

Input : 1EA (3.5? headphone jack type)
Output : 1EA (3.5? headphone jack type)

Interface - Comm. Port - IR Receiver (w/ Light Sensor)

1EA (Phone Jack Type) : Used for installation
Interface - USB3.0

1EA

Interface - LVDS

-
Temperature Sensor

Yes

Light Sensor

Yes
TPC (Temporal Peak luminance Control)

Yes

Motion Eye Care

Yes
Power Consumption

30

CMS S/W

Yes (3.0)
Signage365care

Yes (2.7)

Accessory

Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book Warranty Card
