    21HQ613D component-copyModelName

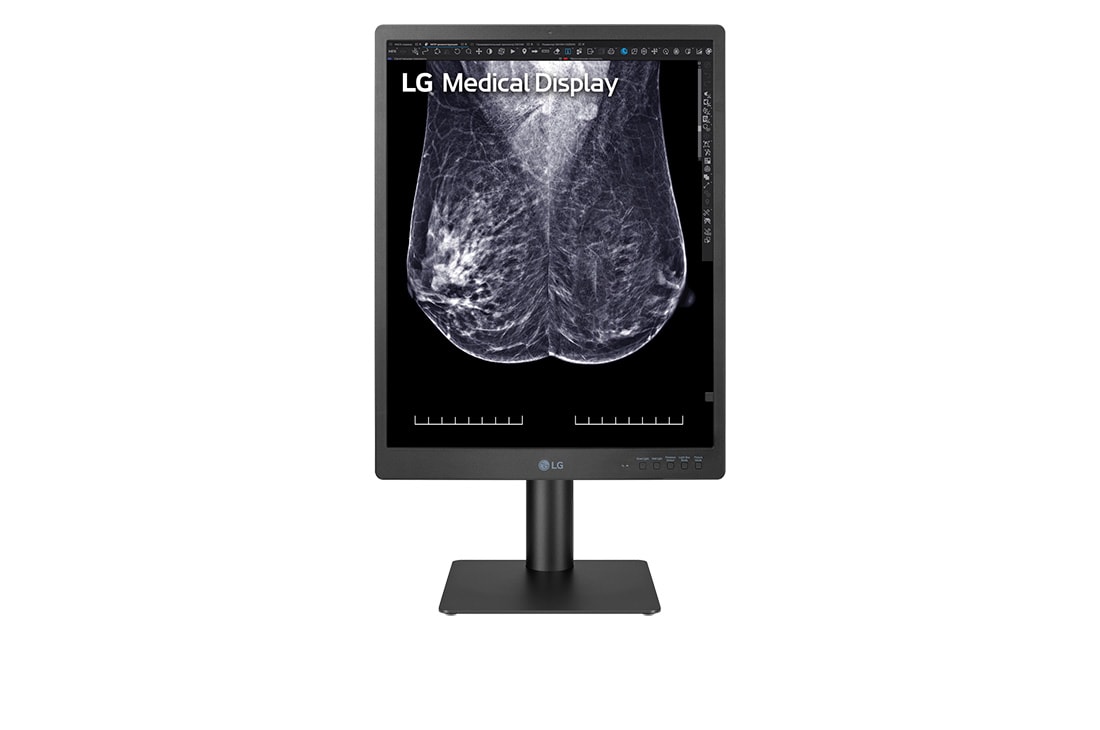

    LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography

    Key Features

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (21HQ613D)
      $
      $
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (21HQ613D)
      $
      $
      LG Members Price
    Total
    LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography
    Contact Us
    LG Medical Display. LG Medical Display.
    21.3" 5MP IPS Diagnostic Monitor. 21.3" 5MP IPS Diagnostic Monitor.
    21.3" 5MP IPS Diagnostic Monitor

    Designed for breast imaging

    Watch the Full Movie

    • Display for breast imaging

      21.3-inch 5MP (2048x2560) IPS Display
      Calibration with Front Sensor

    • Efficiency

      5 Hot Keys
      Daisy Chain

    • Convenience

      User-friendly Monitor Stand
      Down light & Wall light

    High resolution display for breast imaging

    High Definition Imaging

    Diagnostic Monitor 21HQ613D displays radiological images, including full field digital mammography and digital breast tomosynthesis, with a brightness of 1,100 cd/m2 and a contrast ratio of 1,800:1. Moreover, this monitor showcases vivid color, high definition mammography and breast tomosynthesis images including breast MRI, CT scans and ultrasound, ensuring versatile performance across various medical imaging modalities.
    Diagnostic Monitor 21HQ613D displays radiological images, including full field digital mammography and digital breast tomosynthesis, with a brightness of 1,100 cd/m2 and a contrast ratio of 1,800:1. Diagnostic Monitor 21HQ613D displays radiological images, including full field digital mammography and digital breast tomosynthesis, with a brightness of 1,100 cd/m2 and a contrast ratio of 1,800:1.
    *All images are shown for illustrative purposes only and may vary from the actual product/usage.
    The various resolution modes (5/3/2MP) of the 21HQ613D allow users to customize their resolution to better fit their respective needs.
    Multi-resolution mode

    Set the resolution mode to fit your needs

    The various resolution modes (5/3/2MP) of the 21HQ613D allow users to customize their resolution to better fit their respective needs.
    *All images are shown for illustrative purposes only and may vary from the actual product/usage.
    The front-sensor, supported by calibration software, enables calibration without the need for additional measuring equipment, ensuring stable image quality.
    Internal front calibration sensor

    Consistency in medical images

    The front-sensor, supported by calibration software, enables calibration without the need for additional measuring equipment, ensuring stable image quality.
    *All images are shown for illustrative purposes only and may vary from the actual product/usage.
    Highlight specific parts of the medical image with Focus view mode. Users can easily select and focus on areas of concern with max brightness of screen, while darkening the rest.
    Focus view mode

    Focus on the region of interest

    Highlight specific parts of the medical image with Focus view mode. Users can easily select and focus on areas of concern with max brightness of screen, while darkening the rest.
    *All images are shown for illustrative purposes only and may vary from the actual product/usage.
    With Pathology mode, this diagnostic monitor provides image clarity and accuracy as if you were looking at a microscope.
    Pathology mode

    As if you were looking into a microscope

    With Pathology mode, this diagnostic monitor provides image clarity and accuracy as if you were looking at a microscope.
    *All images are shown for illustrative purposes only and may vary from the actual product/usage.

    Streamlined and efficient workflow

    5 Hot Keys

    Intuitive Control

    The 5 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. They provide fast and easy way to operate while working, allowing you to change mode and lighting settings all without disrupting your workflow.
    The 5 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. The 5 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu.
    *All images are shown for illustrative purposes only and may vary from the actual product/usage.
    The presence sensor automatically turns off the display when no motion is detected for 5 minutes, contributing to convenient power management.
    Presence sensor

    Convenient power management

    The presence sensor automatically turns off the display when no motion is detected for 5 minutes, contributing to convenient power management.
    *All images are shown for illustrative purposes only and may vary from the actual product/usage.
    Daisy chain

    Simple connection for a clutter-free workspace

    Make your workspace productive with the Daisy Chain setup. You can reduce clutter on your desk and simplify cable management, leading to a productive workspace.
    Make your workspace productive with the Daisy Chain setup. You can reduce clutter on your desk and simplify cable management, leading to a productive workspace. Make your workspace productive with the Daisy Chain setup. You can reduce clutter on your desk and simplify cable management, leading to a productive workspace.
    *All images are shown for illustrative purposes only and may vary from the actual product/usage.

    User convenience

    21HQ613D is designed to be adjustable for the posture of users' image review. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel. It also features a bi-directional auto pivot function for added flexibility.

    User-friendly monitor stand

    21HQ613D is designed to be adjustable for the posture of users' image review. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel. It also features a bi-directional auto pivot function for added flexibility.
    *Auto pivot refers to the automatic screen rotation function based on the pivot direction.
    • Swivel ±15°.

      Swivel ±15°

    • Tilt -5° ~ 20°

      Tilt -5° ~ 20°

    • Height 110mm

      Height 110mm

    *All images are shown for illustrative purposes only and may vary from the actual product/usage.
    Down light & Wall light

    Ideal diagnostic workspace

    Down /Wall light mode enhances readability of documents below monitor even in low-light environments.
    • Wall light

      Wall light

    • Down light

      Down light

    *All images are shown for illustrative purposes only and may vary from the actual product/usage.
    21HQ613D features an Auto luminance sensor which sets screen brightness properly for the ambient lighting.
    Auto luminance sensor

    Automatically adjusts screen brightness

    21HQ613D features an Auto luminance sensor which sets screen brightness properly for the ambient lighting.
    *All images are shown for illustrative purposes only and may vary from the actual product/usage.
    Close
    Display
    • Aspect Ratio
      4:5
      Brightness (Typ.) [cd/m2]
      1100cd/m2
    • Color Bit
      10bit
      Color Gamut (Typ.)
      NTSC 72% (CIE1931)
    • Contrast Ratio (Typ.)
      1800:1
      Brightness (Stabilization) [cd/m2]
      600 cd/m2
    • Pixel Pitch [mm]
      0.165 X 0.165 mm
      Resolution
      2048 x 2560
    • Response Time
      5ms (GtG at Faster)
      Size [Inch]
      21.3
    • Surface Treatment
      AG
      Viewing Angle (CR≥10)
      178°(R/L), 178°(U/D)
    Features
    • Hot Key
      Yes (5 keys)
      Brightness Stabilization
      Yes
    • Auto Brightness
      Yes
      Presence Sensor
      Yes
    • Front Sensor
      Yes
      Black Stabilizer
      Yes
    • HW Calibration
      Yes
      DICOM Compliant
      Yes
    • Color Temperature
      6500K / 7500K / 9300K / Manual (5000K ~ 10000K)
      Flicker safe
      Yes
    • Multi-resolution Mode
      Yes (5MP /3MP /2MP)
      Pathology Mode
      Yes
    • Reader Mode
      Yes (Text Mode)
      Focus View
      Yes
    • Light Box Mode
      Yes
      Smart Energy Saving
      Yes
    • Lighting
      Yes (Down/ Wall)
      Super Resolution+
      Yes
    SW Application
    • Dual Controller
      Yes
      LG Calibration Studio Medical
      Yes
    Connectivity
    • DisplayPort
      Yes (In 2ea / Out 1ea)
      DVI
      Yes (In 1ea Dual link)
    • Daisy Chain
      Yes (5MP/48Hz)
      USB Downstream Port
      YES(2ea/ver3.0)
    • USB Upstream Port
      YES(2ea/ver3.0)
    Power
    • AC Input
      100-240Vac, 50-60Hz
      DC Output
      19V @6.32A
    • Power Consumption (DC Off)
      Less than 0.3W
      Type
      External Power(Adapter)
    Mechanical
    • Borderless Design
      Normal
      Display Position Adjustments
      Tilt / Height / Swivel / Pivot
    • Height Range [mm]
      110 mm
      Mechanical Power Switch
      Yes
    • One Click Stand
      Yes
      Pivot
      Yes(±90°)
    • Swivel
      Yes(±15°)
      Tilt
      Yes(-5°~20?)
    • Wall Mountable [mm]
      100 x 100 mm
    Dimensions/Weight
    • Dimension in Shipping (WxHxD) [mm]
      524 x 577 x 296
      Dimension with Stand (WxHxD) [mm]
      364.5 x 634.4 x 233.6
    • Dimension without Stand (WxHxD) [mm]
      364.5 x 473.4 x 78
      Pallet Stuffing (20ft/40ft/40ft HC)
      216 / 504 / 672
    • Weight in Shipping [kg]
      11.4
      Weight with Stand [kg]
      7.85
    • Weight without Stand [kg]
      5.45
    Standard
    • IEC (IEC 60601-1/IEC 60601-1-2)
      Yes
      EN (EN 60601-1/EN 60601-1-2)
      Yes
    • IEC (IEC 60950-1 & IEC 62368-1 / CISPR 32, 35)
      Yes
      EN (EN 62368-1 / EN 55032, 55035)
      Yes
    • cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
      Yes
      CE
      MDR
    • FDA
      510(K)(Class II)
      ISO13485
      Yes
    • RoHS
      Yes
      REACH
      Yes
    • WEEE
      Yes
      MFDS
      Yes
    Accessory
    • Adapter
      Yes
      Calibration Report (Paper)
      Yes
    • DVI-D
      Yes(1ea)
      Display Port
      Yes
    • Power Cord
      Yes
      USB A to B
      Yes
