    24HR513C component-copyModelName

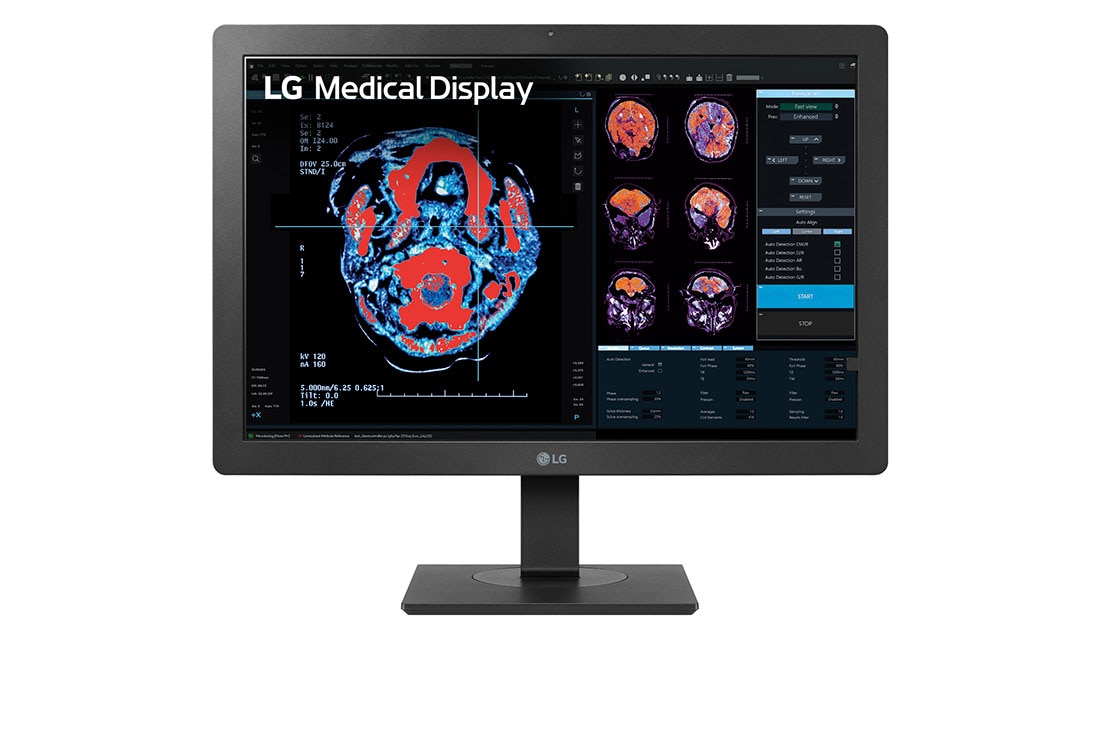

    LG 24” 2MP IPS Clinical Review Monitor

    Key Features

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (24HR513C)
      $
      $
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (24HR513C)
      $
      $
      LG Members Price
    Total
    LG 24” 2MP IPS Clinical Review Monitor
    Contact Us
    24” 2MP Clinical review monitor. 24” 2MP Clinical review monitor.
    24” 2MP Clinical review monitor

    Clinical review and Diagnosis in one display

    Watch the Full Movie

    Multi-purpose 600cd/m2 Brightness (Typ.)
    Internal Front Calibration Sensor

    Efficiency Management with LCS Medical
    Daisy Chain

    Convenience Variety of interfaces including HDMI
    Ergonomic Design

    Multi-purpose

    With high brightness of 600cd/m2, this clinical review monitor is also suitable for diagnostic purposes. With high brightness of 600cd/m2, this clinical review monitor is also suitable for diagnostic purposes.
    600cd/m2 Brightness (Typ.)

    High brightness suitable for Diagnosis

    With high brightness of 600cd/m2, this clinical review monitor is also suitable for diagnostic purposes, meeting the ACR standards for diagnostic monitors.
    *According to ACR(American College of Radiology), maximum luminance of diagnostic displays used for interpretation should be at least 350cd/m2.
    *This display is not intended for mammography.
    The front-sensor, supported by the calibration software, enables calibration without the need for additional measuring equipment, ensuring stable image quality.
    *All images are shown for illustrative purposes only and may vary from the actual product/usage.
    Internal front calibration sensor

    Consistency in medical images

    The front-sensor, supported by the calibration software, enables calibration without the need for additional measuring equipment, ensuring stable image quality.
    24HR513C features the Focus View Mode which highlights specific parts of the medical image. Users can easily select and focus on areas of concern while darkening the rest of the screen.
    *All images are shown for illustrative purposes only and may vary from the actual product/usage.
    Focus view mode

    Focus on the region of interest

    24HR513C features the Focus view mode which highlights specific parts of the medical image. Users can easily select and focus on areas of concern while darkening the rest of the screen.
    With Pathology Mode, 24HR513C provides image clarity and accuracy as if you were looking at a microscope.
    *All images are shown for illustrative purposes only and may vary from the actual product/usage.
    Pathology mode

    Just like looking at a microscope

    With Pathology Mode, 24HR513C provides image clarity and accuracy as if you were looking at a microscope.

    Streamlined and efficient workflow

    Convenient calibration and QA test. Convenient calibration and QA test.
    LCS Medical*

    Convenient calibration and QA test

    Conveniently manage 24HR513C with LCS Medical. With calibration complying with DICOM Part 14, this software enables precise and consistent display of medical images. It also supports Quality Assurance Tests conforming to international QC Standards*.
    • Calibration. Calibration.

      Calibration

    • QA Test. QA Test.

      QA Test

    *LCS Medical : LG Studio Calibration Medical
    *LCS Medical supports Quality Assurance Tests that comply with international QC Standards including AAPM TG18, ACR, DIN-6868-157, IEC 62563-1, NYC PDM, JESRA X-0093, and RANZCR.
    Daisy Chain

    Simple connection for a clutter-free workspace

    Make your workspace productive with Daisy Chain Setup. You can connect a 24HR513C with two *3MP diagnostic monitors, displaying patient charts on a 24HR513C and medical images on two 3MP monitors.
    You can connect a 24HR513C with two *3MP diagnostic monitors, displaying patient charts on a 24HR513C and medical images on two 3MP monitors. You can connect a 24HR513C with two *3MP diagnostic monitors, displaying patient charts on a 24HR513C and medical images on two 3MP monitors.
    *All images are shown for illustrative purposes only and may vary from the actual product/usage.
    *The 3MP diagnostic monitor featured in the image is 21HQ513D.

    User convenience

    Versatile connectivity

    Variety of interfaces, including an HDMI Port

    With HDMI, DisplayPort, and DVI-D input terminals, 24HR513C guarantees compatibility with a wide range of interfaces, enhancing user convenience.
    DVI IN, HDMI?, DisplayPort x 2, USB 3.0 Downstream x 2, USB 3.0 Upstream x 2. DVI IN, HDMI?, DisplayPort x 2, USB 3.0 Downstream x 2, USB 3.0 Upstream x 2.
    1. DVI IN / 2. HDMI? / 3. DisplayPort x 2 / 4. USB 3.0 Downstream x 2 / 5. USB 3.0 Upstream x 2
    Ergonomic design

    Customizable workstation for enhanced usability

    24HR513C is designed to be adjustable for the posture of users' image review. The One-Click Stand makes the installation process simple. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel. It also features a bi-directional auto pivot function for added flexibility.
    • Bi-directional Auto Pivot.

      Bi-directional Auto Pivot

    • Swivel ±45°.

      Swivel ±45°

    • Height 0 ~ 150mm.

      Height 0 ~ 150mm

    • Tilt -5 ~ 25°.

      Tilt -5 ~ 25°

    • The One-Click Stand.

      The One-Click Stand

    *All images are shown for illustrative purposes only and may vary from the actual product/usage.
    *Auto Pivot refers to the automatic screen rotation function based on the pivot direction.
    Automatically adjusts screen brightness 3
    *All images are shown for illustrative purposes only and may vary from the actual product/usage.
    Auto luminance sensor

    Automatically adjusts screen brightness

    24HR513C features an Auto luminance sensor which sets screen brightness properly for the ambient lighting.
    Close
    Display
    • Aspect Ratio
      16:10
      Brightness (Typ.) [cd/m2]
      600
    • Brightness (Stabilization) [cd/m2]
      350
      Color Bit
      8bit
    • Color Gamut (Typ.)
      NTSC 70% (CIE1931)
      Contrast Ratio (Typ.)
      1000:1
    • Pixel Pitch [mm]
      0.27X0.27
      Resolution
      1920x1200
    • Response Time
      5ms (GtG at Faster)
      Size [Inch]
      24
    • Surface Treatment
      Anti-Glare
      Viewing Angle (CR≥10)
      178°(Right/Left), 178°(Up/Down)
    Features
    • Brightness Stabilization
      Yes
      Auto Brightness
      Yes
    • Front Sensor
      Yes
      Black Stabilizer
      Yes
    • HW Calibration
      Yes
      DICOM Compliant
      Yes
    • Color Temperature
      6500K/7500K/9300K
      Manual(5000K~10000K)
      Flicker safe
      Yes
    • Pathology Mode
      Yes
      Reader Mode
      Yes
    • Focus View
      Yes
      Smart Energy Saving
      Yes
    • Super Resolution+
      Yes
    SW Application
    • Dual Controller
      Yes
      LG Calibration Studio Medical
      Yes
    Connectivity
    • DisplayPort
      Yes(in 1ea/out 1ea)
      DVI
      Yes(1ea)
    • Daisy Chain
      Yes
      HDMI
      Yes (1ea)
    • USB Downstream Port
      Yes (2ea/ver3.0)
      USB Upstream Port
      Yes (2ea/ver3.0)
    Power
    • AC Input
      100-240Vac, 50/60Hz
      DC Output
      19V, 3.42A
    • Power Consumption (DC Off)
      Less than 0.3W
      Power Consumption (Max.)
      65W
    • Type
      External Power(Adapter)
    Mechanical
    • Borderless Design
      Normal
      Display Position Adjustments
      Tilt/Height/Swivel/Pivot
    • Height Range [mm]
      150
      OneClick Stand
      Yes
    • Pivot
      Yes(±90°)
      Swivel
      Yes(±45°)
    • Tilt
      Yes(-5°~25°)
      Wall Mountable [mm]
      100 x 100
    Dimensions/Weight
    • Dimension in Shipping (WxHxD) [mm]
      705X480X200
      Dimension with Stand (WxHxD) [mm]
      574.2X559.4X248.2
    • Dimension without Stand (WxHxD) [mm]
      574.2X382.4X59.3
      Pallet Stuffing (20ft/40ft/40ft HC)
      340/700/875
    • Weight in Shipping [kg]
      9.7
      Weight with Stand [kg]
      7.1
    • Weight without Stand [kg]
      4.35
    Standard
    • IEC (IEC 60601-1/IEC 60601-1-2)
      Yes
      EN (EN 60601-1/EN 60601-1-2)
      Yes
    • IEC (IEC 60950-1 & IEC 62368-1 / CISPR 32, 35)
      Yes
      EN (EN 62368-1 / EN 55032, 55035)
      Yes
    • cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
      Yes
      CE
      MDR
    • FDA
      510(k) (Class II)
      ISO13485
      Yes
    • RoHS
      Yes
      REACH
      Yes
    • WEEE
      Yes
      MFDS
      Yes
    Accessory
    • Adapter
      Yes
      Calibration Report (Paper)
      Yes
    • DVI-D
      Yes
      Display Port
      Yes
    • HDMI
      Yes
      Power Cord
      Yes
    • USB A to B
      Yes
