    27HS714S component-copyModelName
    LG 27-inch 4K Mini-LED surgical monitor

    Key Features

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (27HS714S)
      $
      $
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (27HS714S)
      $
      $
      LG Members Price
    Total
    LG 27-inch 4K Mini-LED surgical monitor
    Contact Us

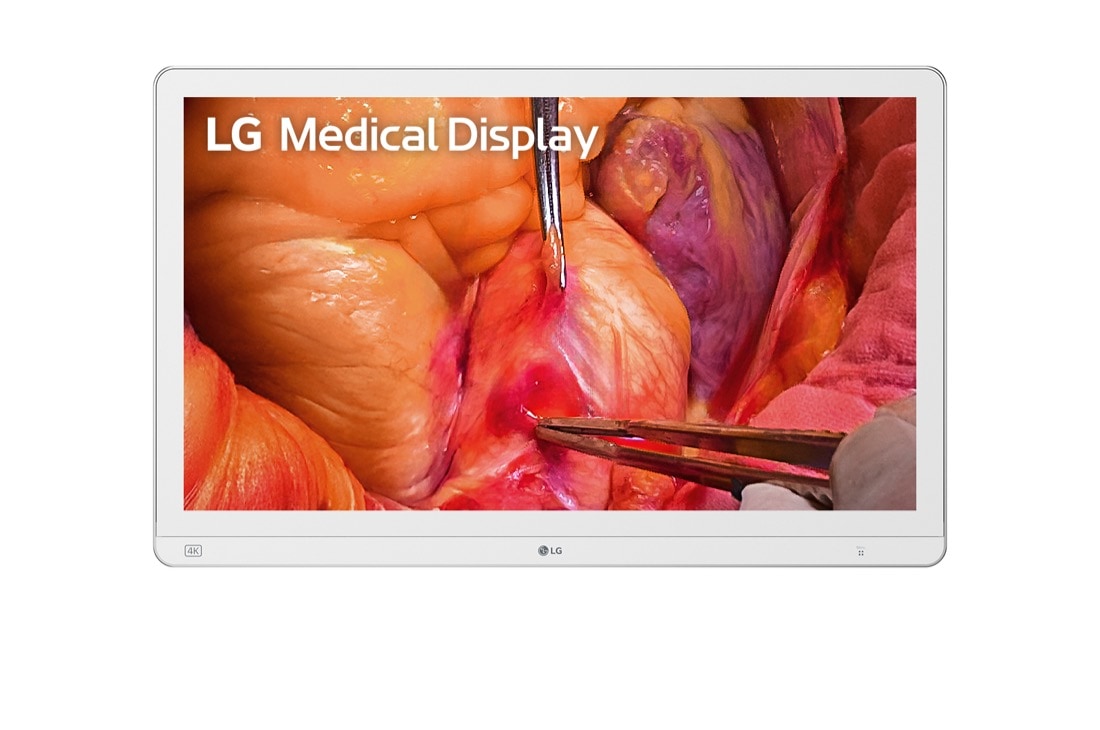

    27-inch 4K Mini-LED surgical monitor displaying a high-resolution surgical image, set in a modern operating room environment. 27-inch 4K Mini-LED surgical monitor displaying a high-resolution surgical image, set in a modern operating room environment.

    27-inch 4K Mini-LED surgical monitor

    Watch the Full Movie
    *All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.
    *Specifications may vary by region and all features, standards, and other product specifications are subject to change without notice or obligation.

    • Outstanding image quality

      27” 4K (3840x2160) with Mini-LED
      1.5K local dimming zones
      DCI-P3 98% (CIE1976)

    • Suitable for surgery

      Optical bonding
      IP45 (Front) & IP32 (Except for front) & IK06
      12G-SDI support
      8.8kg lightweight

    • User Convenience

      Up to 4 PBP & PIP
      Mirror mode & Rotation mode
      Failover input switch

    Outstanding image quality with Mini-LED

    1.5K local dimming zones

    Immersive environment to focus on the surgical procedure

    Local dimming, inherent to 4K Mini-LED technology, enables precise brightness control across specific sections of the LED backlight, which can enhance visual contrast by darkening the dark areas and brightening the light areas. This monitor, equipped with 1.5K local dimming zones, significantly enhances the dynamic contrast ratio to up to 1,000,000:1 and reaches a peak brightness of 2,000 cd/m2.
    The video promotes a Mini-LED surgical display with 1.5K local dimming zones, emphasizing enhanced brightness control, high contrast, and peak brightness of 2,000 cd/m2 for an immersive surgical viewing experience. The video promotes a Mini-LED surgical display with 1.5K local dimming zones, emphasizing enhanced brightness control, high contrast, and peak brightness of 2,000 cd/m2 for an immersive surgical viewing experience.
    Medical monitor with surgical image shown on screen and a diagram illustrating 1.5K local dimming zones, highlighting enhanced backlight control for improved energy efficiency and durability.
    Additionally, this local dimming technique may improve energy efficiency compared to traditional edge-lit backlight technologies, thereby
    prolonging the display's durability.
    *All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.
    Color gamut chart showing DCI-P3 98% coverage on the CIE 1976 diagram, representing accurate and vivid color reproduction.

    DCI-P3 98% (CIE1976)

    With a wide color range of DCI-P3 98% (CIE1976), 27HS714S provides a great level of detail optimizing image clarity and color accuracy.
    *Comparison of DCI-P3 (triangles outlined with gray dotted lines). The 27HS714S (triangles outlined in black) supports the color gamut of DCI-P3 98% (CIE1976).
    *All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.

    Suitable for surgical environments

    Optical bonding

    Sharp and vibrant images

    The 27HS714S is engineered with optical bonding technology, seamlessly integrating the backlight, module, and glass without any air gaps, and further enhanced with Anti-glare, Anti-reflection, and Anti-fingerprint coatings on the front glass. This combination significantly improves display readability by minimizing reflections and glare, optimizing image clarity and color accuracy even in brightly lit environments. The elimination of air gaps reduces light dispersion and loss, resulting in sharper and more vibrant images.
    The video compares a surgical display with and without optical bonding. The right, with optical bonding, is brighter and clearer than the left. The video compares a surgical display with and without optical bonding. The right, with optical bonding, is brighter and clearer than the left.
    *All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.
    *The comparison images are simulated for illustrative purposes only. They are not actual images of the glass with/without optical bonding.
    • The left image shows a display without anti-glare, where reflections and glare obscure the view. The left image shows a display without anti-glare, where reflections and glare obscure the view.

    • The right image, with anti-glare coating, provides a clear and unobstructed view, demonstrating the effectiveness of the coating. The right image, with anti-glare coating, provides a clear and unobstructed view, demonstrating the effectiveness of the coating.

    Anti-glare coating

    The anti-glare coating of optically bonded glass reduces screen glare and reflection, providing a clear display even in brightly lit operating rooms.
    *All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.
    *The comparison images are simulated for illustrative purposes only. They are not actual images of the glass with/without AG.
    • The left image shows a display without anti-reflection, with more glare and reflections affecting visibility. The left image shows a display without anti-reflection, with more glare and reflections affecting visibility.

    • The right image, with anti-reflection coating, offers a clearer view with reduced glare. The right image, with anti-reflection coating, offers a clearer view with reduced glare.

    Anti-reflection coating

    The anti-reflection coating of optically bonded glass minimizes the reflectance of visible light wavelengths, ensuring eye comfort for medical professionals and enabling a precise display.
    *All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.
    *The comparison images are simulated for illustrative purposes only. They are not actual images of the glass with/without AR.
    • The left image shows a display with visible fingerprints and smudges, obstructing the view. The left image shows a display with visible fingerprints and smudges, obstructing the view.

    • The right image, with anti-fingerprint coating, is clear, without smudges, providing a better view of the surgical area. The right image, with anti-fingerprint coating, is clear, without smudges, providing a better view of the surgical area.

    Anti-fingerprint coating

    The anti-fingerprint coating of optically bonded glass reduces contamination from fingerprints and smudges, contributing to a clear display of the surgical area.
    *All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.
    *The comparison images are simulated for illustrative purposes only. They are not actual images of the glass with/without AF.
    The video shows a medical display being splashed with water, highlighting its IP45 rating for the front and IP32 for the rest, indicating water and dust resistance.
    IP45 (Front) & IP32 (Except for front)
    The video shows a blurred medical display, indicating an IK06 rating, which highlights its impact resistance.
    IK06

    IP45 (Front) & IP32
    (Except for front) & IK06

    With IP45 (Front) and IP32 (Except for front) ratings, 27HS714S is suitable for surgical environments where blood and other bodily fluids are likely to splash. Additionally, this monitor offers high resistance to physical impact, as denoted by its IK06 rating.
    *All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.
    • The image shows a 12G-SDI connection between a medical imaging system and a 4K display, indicating high-definition video transmission.

      12G-SDI support

      27HS714S supports 12G-SDI, which enables long-distance transmission of 4K signals over a single coaxial cable.

    • The image shows a 8.8kg lightweight medical display mounted on a ceiling, displaying a surgical procedure.

      8.8kg lightweight

      With a lightweight design of 8.8kg, this surgical monitor is suited for mounting on surgical arms and pendants.

    *All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.

    User convenience

    Up to 4 PBP & PIP

    Monitor various information on a single screen

    As the 27HS714S supports up to 4 PBP & PIP, medical professionals can monitor various critical information streams concurrently on a single screen, which can enhance operational efficiency and decision-making. For example, medical staff can view a combination of laparoscopic and fluoroscopic images while monitoring vital signs.
    The video shows a medical monitor displaying up to four different types of information simultaneously, improving operational efficiency and decision-making. The video shows a medical monitor displaying up to four different types of information simultaneously, improving operational efficiency and decision-making.
    *All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.
    The video explains the mirror and rotation modes, allowing users to flip or rotate the display for optimal viewing during surgery.

    Mirror mode & Rotation mode

    Mirror mode and Rotation mode allow users to adjust the display for optimal viewing, whether flipping the image horizontally or rotating it 180 degrees to match the orientation of the surgical camera.
    *All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.
    The image explains the failover input switch, which automatically switches to a backup input if the main input fails, ensuring uninterrupted display.

    Failover input switch

    This feature provides an uninterrupted display by automatically switching to an alternative video source if the primary input fails, while compatible across various interfaces including HDMI, SDI, DVI, and DP. Particularly for 12G-SDI, the system can automatically switch from the primary input to the next available one if a signal loss is detected.
    *All images, including surgical images on the display, are shown for illustrative purposes only, and may vary from the actual product, usage, or images appearing on the display.
    Close
    Display
    • Panel Type
      IPS
      Size (Aspect Ratio)
      27-inch (16 : 9)
    • Resolution
      4K (3,840 x 2,160)
      Backlight Technology
      Mini-LED
    • Color Gamut (Typ.)
      DCI-P3 98% (CIE1976)
      Color Bit
      10 bit
    • Viewing Angle (CR≥10)
      178° (Right / Left), 178° (Up / Down)
      Brightness (Typ.)
      800 cd/m2
    • Brightness (Stabilization)
      500 cd/m2
      Peak Brightness (Typ.)
      2,000 cd/m2
    • Surface Treatment
      Protection Glass (Optical Bonding, Anti-Reflection, Anti-Fingerprint, Anti-Glare)
      Contrast Ratio (Typ.)
      1,000:1
    • Response Time (GTG)
      5 ms (GtG at faster)
    Feature
    • DICOM Compliant
      Yes
      HW Calibration
      Yes (LG Calibration Studio)
    • HDR
      HDR 10, HDR Effect
    Video Signals
    • Input Terminals
      HDMI x 1, DisplayPort x 1, SDI (12G / 3G) x 4, DVI-D x 1
      Output Terminals
      DisplayPort x 1, SDI (12G / 3G) x 4, DVI-D x 1
    Connectivity
    • USB
      USB 3.01 Upstream, 1 Downstream
    Power
    • AC Input
      100-240 Vac, 50/60 Hz
      Power Consumption (Max.)
      120W
    • Power Consumption (DC Off)
      Less than 0.3W
    Resistance Rating
    • Resistance Rating
      IP45 (Front), IP32(Except for Front), IK06
    User Convenience
    • PBP/PIP
      Yes (2 / 3 / 4 PBP) / Yes
      Screen Flip
      Mirror Mode & Rotation Mode
    • Failover Input Switch
      Yes
    Physical Specifications
    • Weight
      8.8 kg
      Wall Mount Size
      200 x 100 mm / 100 x 100 mm

    To access more technical documentation and downloads, please visit the LG B2B Partner Portal.

    Find a dealer to help with service for sales, installation, and after sales.
