    31HN713D component-copyModelName

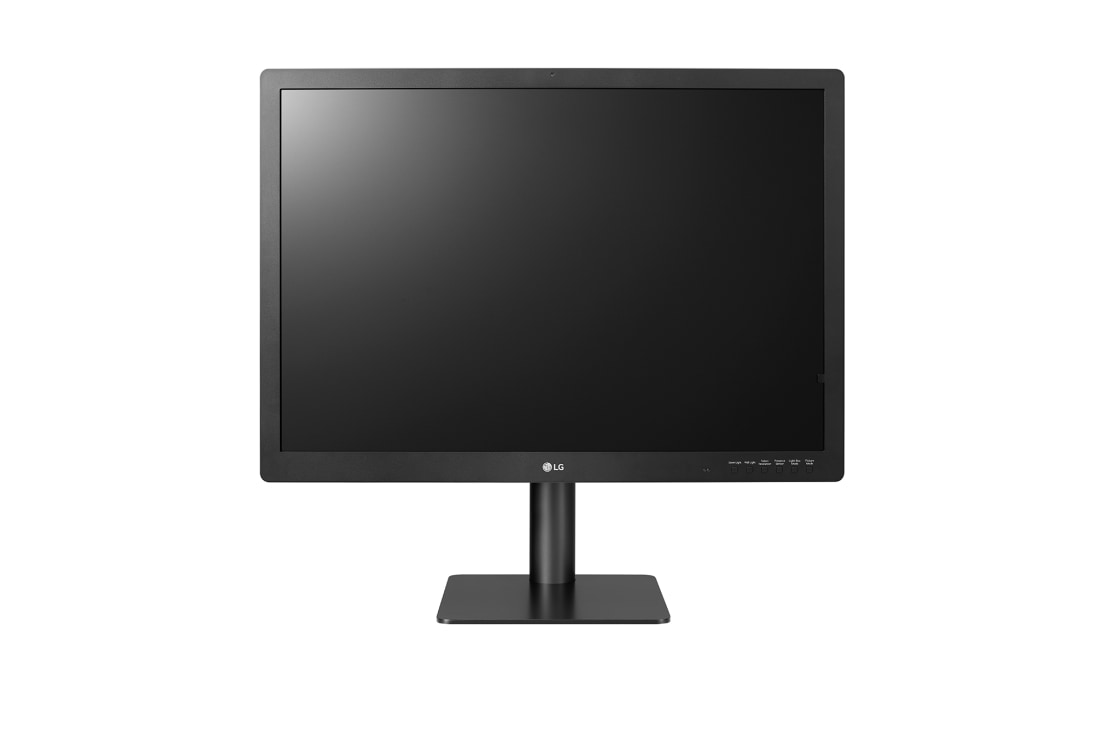

    31-inch 12MP Diagnostic Monitor for Mammography

    Key Features

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (31HN713D)
      $
      $
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (31HN713D)
      $
      $
      LG Members Price
    Total
    31-inch 12MP Diagnostic Monitor for Mammography
    Contact Us
    Designed for Mammography3 Designed for Mammography4
    31-inch 12MP IPS Display

    Designed for Mammography


    Watch the Full Movie

    • Accuracy

      31-inch 12MP IPS Display
      Self-calibration with Front Sensor

    • Efficiency

      Focus View
      PBP & Dual Controller

    • Convenience

      6 Hot Key
      Ergonomic Design

    Accurate Imaging

    multi-resolution mode offering for users to select resolution between input of 12mp and of 6mp multi-resolution mode offering for users to select resolution between input of 12mp and of 6mp
    Multi-resolution Mode

    Compatible with Every Device

    Diagnostic monitors often need to be connected to various modalities, all with differing resolutions. Thanks to 31HN73D’s Multi-resolution Mode, you can adjust the resolution of monitor to optimize to the connected device.
    pathology mode offering imaging results as detailed and accurately colored as seen under a microscope pathology mode offering imaging results as detailed and accurately colored as seen under a microscope
    Pathology Mode

    True-to-Life Color Reproduction

    In Pathology Mode, the 31HN713D reproduces the same level of detail and color accuracy as seen directly under a microscope, to help healthcare professionals make more accurate diagnoses.
    the monitor equipped with the front-sense offering for automatic self-calibration the monitor equipped with the front-sense offering for automatic self-calibration
    Self-calibration

    Consistency in Medical Images

    The front-sensor allows for automatic, self-calibration without the need for additional measuring equipment. It improves the quality and consistency of medical images that are displayed by maintaining accurate values.

    Streamlined and Efficient Workflow

    presence sensor detecting the motion of the user and having the screen turned off automatically when no motion presence sensor detecting the motion of the user and having the screen turned off automatically when no motion
    Presence Sensor

    Hassle-free Savings & Stronger Security

    Thanks to the Presence Sensor of 31HN713D which automatically turns off the display when no motion is detected, you can save energy and be more secure against exposing patient information and other sensitive data.
    auto luminance sensor offering automatic adjustment of screen brightness at the optimal level under ambient lighting conditions auto luminance sensor offering automatic adjustment of screen brightness at the optimal level under ambient lighting conditions
    Auto Luminance Sensor

    Reducing Eye Strain

    LG 31HN713D features an Auto Luminance Sensor which automatically adjusts screen brightness according to the ambient lighting conditions. As a result, eye strain is reduced by ensuring screen brightness is always set to the optimal level.
    focus view offering for users to review a specific part of imaging focus view offering for users to review a specific part of imaging
    Focus View

    Fully Focus on the Important part

    LG 31HN713D includes the Focus View Mode which allows you to review a specific part of the medical image more closely. This allows professionals to focus fully on the important part of the image for a more accurate and efficient diagnosis.

    More Ergonomic and Comfortable to Review

    Down Lighting & Wall Lighting

    Optimal Reading Condition

    Down and Wall Lighting Modes reduce the contrast between the monitor brightness and ambient lighting conditions, allowing you to work comfortably without having to adjust the lighting to view paper documents in the darkroom.
    down lighting, and wall lighting offering users to view imaging results on the screen comfortably in the darkroom down lighting, and wall lighting offering users to view imaging results on the screen comfortably in the darkroom
    6 Hot Keys

    Intuitive Control

    The 31HN713D's 6 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. The 6 Hot Keys are much faster and easier to operate while working, allowing you to change mode, screen resolution, and lighting settings all without disrupting your workflow.
    6 hot keys offering user's intuitive control consisting of down light, wall light, select resolution, presence sensor, light box mode, and picture mode 6 hot keys offering user's intuitive control consisting of down light, wall light, select resolution, presence sensor, light box mode, and picture mode
    Ergonomic Design

    Easy and Comfort

    The One-Click Stand and ultra-lightweight body make installing the 31HN713D simple. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel, reducing chronic pain caused by long hours of work.
    one-click stand with ultra-lightweight body making installation easy, and the stand offering adjustment of tilt, height, and swivel one-click stand with ultra-lightweight body making installation easy, and the stand offering adjustment of tilt, height, and swivel
    Close
    Display
    • Aspect Ratio
      3:2
      Backlight Dimming Technology
      Global Dimming
    • Backlight Technology
      LED
      Brightness (Typ.)
      1200 cd/m2
    • Brightness (Stabilization)
      550 cd/m2
      Color Bit
      10bit
    • Color Gamut (Typ.)
      sRGB over 97%(Coverage)
      Contrast Ratio (Typ.)
      1500:1
    • Pixel Pitch(H x V)
      0.1554mm x 0.1554mm
      Resolution
      4200x2800
    • Response Time (GTG)
      14ms(Off-setting), 5ms(Faster-setting)
      Size (Diagonal, Inch)
      31
    • Size (H x V)
      652.68 x 435.12mm
      (25.70 x 17.13")
      Surface Treatment
      Anti-glare, 3H
    • Viewing Angle (CR≥10)
      178°(Right/Left), 178°(Up/Down)
    Feature
    • Hot Key
      Yes(6keys)
      Brightness stabilization
      Yes
    • Auto Luminance sensor
      Yes
      Presence sensor
      Yes
    • Front Sensor
      Yes
      Black Stabilizer
      Yes
    • HW Calibration
      Yes
      DICOM Compliant
      Yes
    • Color Temperature
      6500K / 7500K / 9300K
      Manual (5000K ~ 10000K)
      Flicker safe
      Yes
    • PBP
      Yes(2PBP)
      Multi-resolution Mode
      Yes(12MP/6MP)
    • Pathology Mode
      Yes
      Reader Mode
      Yes(Text Mode)
    • Focus View
      Yes
      Light Box Mode
      Yes
    • Smart Energy Saving
      Yes
      Lighting
      Yes(Down/ Wall)
    • Super Resolution+
      Yes
    SW Application
    • Dual Controller
      YES
    Connectivity
    • DisplayPort
      YES(2ea)
      Headphone out
      Yes
    • USB Downstream Port
      Yes(3ea/ver3.0)
      USB Upstream Port
      Yes(1ea/ver3.0)
    Power
    • AC Input
      100-240Vac, 50/60Hz
      DC Input (Monitor)
      24V, 7.5A
    • Power Consumption (DC Off)
      Less than 0.3W
      Power Consumption (Max.)
      180W
    • Type
      External Power(Adapter)
    Mechanical
    • Borderless Design
      Normal
      Display Position Adjustments
      Tilt/Height/Swivel
    • Down Height
      90.9mm
      Height Range
      110mm
    • Machanical Power Switch
      Yes
      OneClick Stand
      YES
    • Swivel
      Yes(±15°)
      Tilt
      Yes(-5°~15?)
    • Wall Mount Size
      100x100mm
    Dimensions/Weight
    • Dimension in Shipping (W x H x D)
      999x337x644mm
      Dimension with Stand (W x H x D)
      704.7x662.6x280mm
    • Dimension without Stand (W x H x D)
      704.7x499.5x83.2mm
      Pallet Stuffing (20ft/40ft/40ft HC)
      105 / 210 / 210
    • Weight in Shipping
      21.5kg
      Weight with Stand
      14.0kg
    • Weight without Stand
      10.7kg
    Standard
    • IEC (IEC 60601-1 / IEC 60601-1-2)
      Yes
      EN (EN 60601-1 / EN 60601-1-2)
      Yes
    • IEC (IEC 60950-1 & IEC 62368-1 / CISPR 32, 35)
      Yes
      EN (EN 62368-1 / EN 55032, 55035)
      Yes
    • cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
      Yes
      CE
      MDR
    • FDA
      510(k) (Class II)
      ISO13485
      Yes
    • RoHS
      Yes
      REACH
      Yes
    • WEEE
      Yes
      MFDS
      Yes
    Accessory
    • Adapter
      Yes
      Calibration Report (Paper)
      Yes
    • Display Port
      Yes
      Power Cord
      Yes
    • USB3.0 Upstream Cable
      Yes
    • Manuals & Documents
      • English

        6643K 12/05/2024

    • Software & Drivers
      • Mac_DC_2.76.zip
        Reference

        39373K 05/29/2025

      • Win_DC_2.85.zip
        Reference

        282327K 05/29/2025

      • Mac_OSC_7.20.zip
        Reference

        73309K 05/27/2025

      • Win_OSC_9.43.zip
        Reference

        292552K 04/14/2025

      • LCSMedical_1_03_06.zip
        Reference

        316787K 08/08/2024

      • packing-lgmonitor-v1.2.2-dqa2-20231026-1525_offline_AMD64.tar.zip
        Reference

        1593273K 04/26/2024

      • LCSMedical_1_02_07.zip
        Reference

        297103K 04/26/2024

      • LG_PerfectLum_Installer_v4.0_b2029.zip
        Reference

        79733K 10/25/2023

    To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
