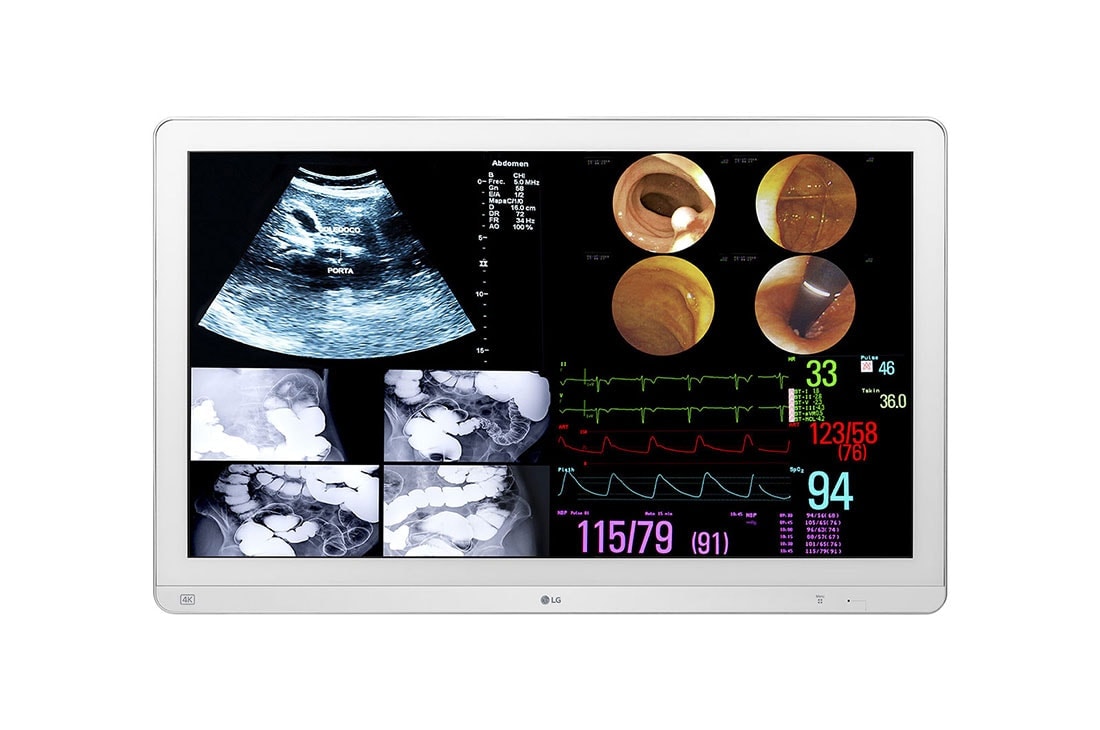

    LG 31.5" 4K IPS Surgical Monitor
    Contact Us
    4K Surgical Display

    Large Display for Surgical Precision

    LG 4K surgical high-resolution monitor with LG's innovative technology provides accuracy, user convenience and reliability for precise surgery.
    Accuracy: 31.5" 4K IPS / HDR10 / sRGB 115% Area, Convenience: 4PBP & PIP / Mirror & Rotation Mode / 12G-SDI Support Accuracy: 31.5" 4K IPS / HDR10 / sRGB 115% Area, Convenience: 4PBP & PIP / Mirror & Rotation Mode / 12G-SDI Support
    31.5-inch 4K IPS

    Enhanced Accuracy with Wide View

    With 31.5-inch 4K IPS display, the LG surgical monitor provides visual comfort for viewing accurate images with others from any angle. So it reduces the risk of misperception and helps to produce better outcomes.
    31.5" 4K : Full HD 4K, IPS Wide Viewing Angle : 178° 31.5" 4K : Full HD 4K, IPS Wide Viewing Angle : 178°
    CIE 1931 color space diagram sRGB / LG, +15% larger color space CIE 1931 color space diagram sRGB / LG, +15% larger color space

    sRGB 115% (Area), Over 99% (Coverage)

    Supporting sRGB 115% (Area), Over 99% (Coverage) and the standard DICOM Part 14, the 32HL714S surgical monitor is designed for accurate color recognition and depth perception during invasive surgery. It enables surgeons to view accurate, realistic images and allow precise surgery.
    None Brightness Stabilization VS. Brightness Stabilization None Brightness Stabilization VS. Brightness Stabilization

    Brightness Stabilization

    LG surgical monitor with Brightness Stabilization can maintain constant brightness. Its sensor carefully measures the backlight and local lighting conditions. Then it optimizes the correct brightness for the surgical procedure.
    None HDR10 VS. HDR10 None HDR10 VS. HDR10

    Support HDR10

    LG 4K surgical monitor is compatible with HDR-supported medical devices such as endoscope cameras. It can deliver images from devices vividly without crushing blacks in dark areas.
    PBP, PIP & 12G-SDI Support

    Multiple Signals on One Screen

    The 32HL714S supports up to 4PBP, PIP and extended ports, allowing you to see multiple signals from several devices on one screen. You can set a combination screen of the endoscopic video from endoscopic camera, the vital sign imagery and the fluoroscopic imagery.
    3PBP / 4PBP / PIP / 12G-SDI Support with 4K 3PBP / 4PBP / PIP / 12G-SDI Support with 4K
    12G-SDI Support : LG 4K Surgical Display enables long-distance transmission of 4K signals over a single coaxial cable without latency for stable surgery. 12G-SDI Support : LG 4K Surgical Display enables long-distance transmission of 4K signals over a single coaxial cable without latency for stable surgery.

    12G-SDI Support

    The 32HL714S features a 31.5-inch 4K (3840x2160) IPS display with 12G-SDI Support, which enables long-distance transmission of 4K signals over a single coaxial cable without latency for stable surgery.(12G-SDI input transmission maximum distance may vary by manufacturers: Up to 50M using BELDEN 1694A cable / Up to 70M using CANARE UHD 5.5C cable).
    Failover Input Switch : When the main sourceis missing, the display will automatically switch to a failover source and restore the main source once the signal is back. Failover Input Switch : When the main sourceis missing, the display will automatically switch to a failover source and restore the main source once the signal is back.

    Failover Input Switch

    When the main source is missing, the display will automatically switch to a failover (backup) source and restore the main source once the signal is back. You can set the main input and failover input in the setting menu of monitor.
    Original screen, Mirror screen and 180° Rotation Original screen, Mirror screen and 180° Rotation
    Mirror & Rotation

    Find the Perfect Operating View

    The 32HL714S with Mirror & Rotation functions, helps you to set the perfectly optimized operating view for improving your convenience in the operating room. You can select the 180 degrees rotated image or the mirror image you want to see.
    Dustproof & Water Resistant Iratings of IP35 (Front) / IP32 (the body except for front) Dustproof & Water Resistant Iratings of IP35 (Front) / IP32 (the body except for front)

    Dustproof & Water Resistant

    To ensure protection against contact with objects such as blood or bodily fluids, LG surgical monitors are cleanable and durable, with ratings of IP35 on the front and IP32 on the body except for front, securing them from any direction.
    Close
    Display
    • Aspect Ratio
      16:9
      Backlight Dimming Technology
      Global Dimming
    • Backlight Technology
      LED
      Brightness (Typ.)
      800cd/m2
    • Brightness (Stabilization)
      500 cd/m2
      Color Bit
      10bit
    • Color Gamut (Typ.)
      sRGB 115% (Area), sRGB Over 99% (Coverage)
      Contrast Ratio (Typ.)
      1000:1
    • Pixel Pitch(H x V)
      0.18159mm x 0.18159mm
      Resolution
      3840 x 2160
    • Response Time (GTG)
      14ms(Off-setting), 5ms(Faster-setting)
      Size (Diagonal, Inch)
      31.5
    • Size (H x V)
      697.31 x 392.23 mm
      (27.45 x 15.44")
      Surface Treatment
      Protection Glass (1.6t, Anti-Reflection, Anti-fingerprint)
    • Viewing Angle (CR≥10)
      178° (Right/Left), 178° (Up/Down)
    Feature
    • Hot Key
      Yes (2keys)
      Brightness stabilization
      Yes
    • Black Stabilizer
      Yes
      HW Calibration
      Yes(LG Calibration Studio)
    • DICOM Compliant
      Yes
      Color Temperature
      6500K / 7500K / 9300K
      Manual (5000K ~ 10000K)
    • Flicker safe
      Yes
      HDR10 Support
      Yes
    • HDR Effect
      Yes
      PBP
      Yes (2PBP/3PBP/4PBP)
    • PIP
      Yes
      Rotation & Mirror Mode
      Yes
    • Failover Input Switch
      Yes
      Smart Energy Saving
      Yes
    • Super Resolution+
      Yes
    SW Application
    • LG Calibration Studio (True Color Pro)
      Yes
    Connectivity
    • 3G-SDI
      Yes
      12G-SDI
      Yes(In 4ea/out 4ea, SFP, 3Gx4)
    • DisplayPort
      Yes(in 1ea/out 1ea)
      DVI
      YES(1In / 1Out)
    • HDMI
      Yes (1ea)
      RS-232
      Yes (1ea)
    • USB Downstream Port
      YES(1ea/ver2.0)
      USB Upstream Port
      Yes (1ea/ver2.0)
    Power
    • AC Input
      100-240Vac, 50/60Hz
      DC Output
      24V, 7.5A
    • DC Input (Monitor)
      24V, 7.5A
      Power Consumption (DC Off)
      Less than 0.3W
    • Power Consumption (Max.)
      180W
      Type
      External Power (Adapter)
    Mechanical
    • Borderless Design
      Normal
      Display Position Adjustments
      No Stand
    • Down Height
      No Stand
      Height Range
      No Stand
    • Machanical Power Switch
      Yes
      OneClick Stand
      No Stand
    • Pivot
      No Stand
      Swivel
      No Stand
    • Tilt
      No Stand
      Wall Mount Size
      200x100mm/100x100mm
    Dimensions/Weight
    • Dimension in Shipping (W x H x D)
      883x215X599mm
      Dimension with Stand (W x H x D)
      No Stand
    • Dimension without Stand (W x H x D)
      764.6 x 480.8 x 94.4 mm
      Pallet Stuffing (20ft/40ft/40ft HC)
      180 / 396 / 528
    • Weight in Shipping
      18.5kg(40.8lb)
      Weight with Stand
      No Stand
    • Weight without Stand
      13.5kg (29.8lb)
    Standard
    • IEC (IEC 60601-1 / IEC 60601-1-2)
      Yes
      EN (EN 60601-1 / EN 60601-1-2)
      Yes
    • IEC (IEC 60950-1 & IEC 62368-1 / CISPR 32, 35)
      Yes
      EN (EN 62368-1 / EN 55032, 55035)
      Yes
    • cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
      Yes
      CE
      MDR
    • FDA
      Registration (Class I)
      ISO13485
      Yes
    • RoHS
      Yes
      REACH
      Yes
    • WEEE
      Yes
      MFDS
      Yes
    • IP(front/except for front)
      IP35/IP32
      Vandal-proof
      IK06
    Accessory
    • Adapter
      Yes
      Calibration Report (Paper)
      Yes
    • Display Port
      Yes
      HDMI
      Yes
    • Power Cord
      Yes

    To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
