    30EW5TP-A component-copyModelName

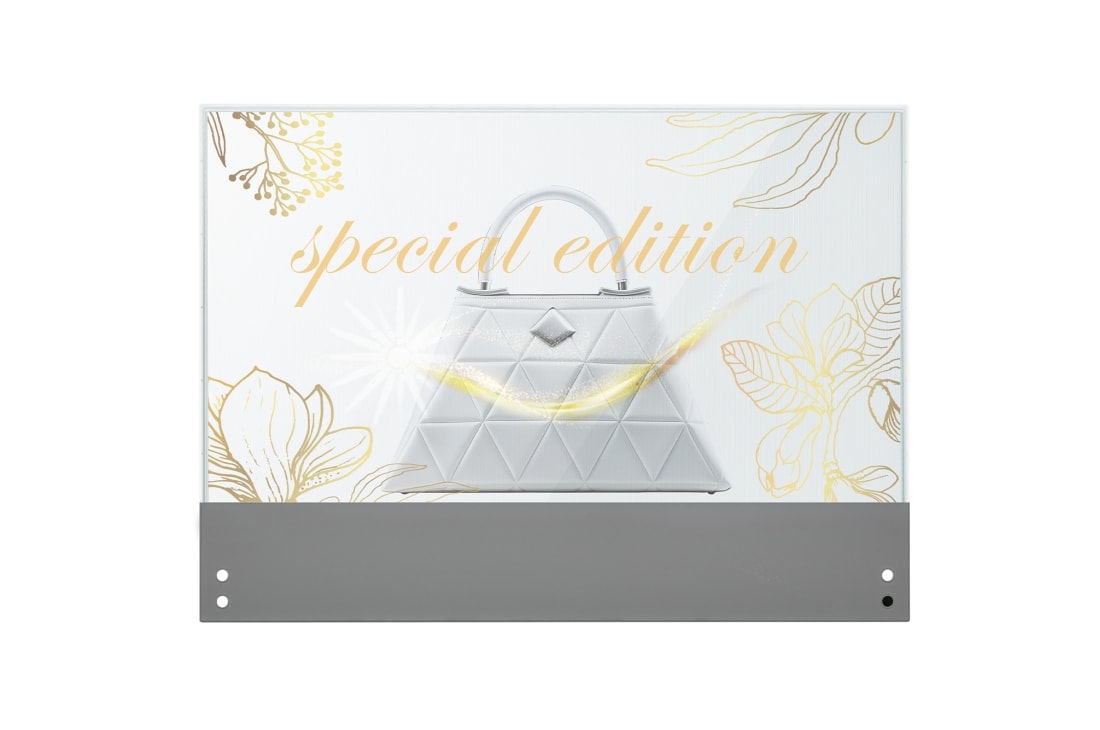

    Transparent OLED Touch Signage

    Key Features

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (30EW5TP-A)
      $
      $
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (30EW5TP-A)
      $
      $
      LG Members Price
    Total
    Transparent OLED Touch Signage
    Contact Us

    See the Unseen,
    LG Transparent OLED Signage

    A man is doing his job by looking at the data displayed on the Transparent OLED screen. At an upscale store display, Transparent OLED Signage is installed as a woman interacts with the transparent screen, revealing patterns that seamlessly blend with the bags displayed behind the screen on the shelf.
    * All images in this page are for illustrative purposes only.

    Accurate and Vivid Colors

    Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.
    A man is getting information through the Transparent OLED Signage screen showing photos of the dessert menu. A man is getting information through the Transparent OLED Signage screen showing photos of the dessert menu.

    Intuitive P-Cap Touch

    By adding P-Cap touch sensor film to the display, the utilization possibilities expand to various industries where customer interaction services are demanding. Users could enjoy its fascinating content using their fingertips.
    At a café, a woman is selecting from the menu by touching the Transparent OLED Signage screen. At a café, a woman is selecting from the menu by touching the Transparent OLED Signage screen.
    At the museum, a father and two children are touching the Transparent OLED Signage screen, learning about polar bears. Beyond the displaying explanation, miniature polar bear models are exhibited and visible through the screen. At the museum, a father and two children are touching the Transparent OLED Signage screen, learning about polar bears. Beyond the displaying explanation, miniature polar bear models are exhibited and visible through the screen.

    High Transparency

    LG’s OLED technology makes the Transparent OLED Touch Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency even with P-Cap touch film. While clearly showing objects behind the screen, it overlays the relevant information right before them.
    Attach thin and transparent tempered glass to the screen to maximize product protection and user safety. Attach thin and transparent tempered glass to the screen to maximize product protection and user safety.

    Protective Tempered Glass

    Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.

    Enhanced Spatial Versatility

    Experience the extraordinary with the state-of-the-art LG Transparent OLED Signage, which breaks down the barriers between the screen and surrounding environment, seamlessly connecting different spaces and people.
    A man and a woman are selecting a room by touching the Transparent OLED Signage installed on the hotel lobby's front table. There are two Transparent OLED Signage displays installed at the bank counter, showing advertisements for bank products on the screens. Transparent OLED Signage is installed in front of a table upon which cell phones are displayed in a cell phone store, and the Transparent OLED Signage screen is showing a cell phone’s functions. A café has Transparent OLED Signage installed, and a woman is checking the menu by touching the Transparent OLED Signage screen. A man and a woman are selecting a room by touching the Transparent OLED Signage installed on the hotel lobby's front table. There are two Transparent OLED Signage displays installed at the bank counter, showing advertisements for bank products on the screens. Transparent OLED Signage is installed in front of a table upon which cell phones are displayed in a cell phone store, and the Transparent OLED Signage screen is showing a cell phone’s functions. A café has Transparent OLED Signage installed, and a woman is checking the menu by touching the Transparent OLED Signage screen.
    * Installation accessories are not supplied by LG.
    Close
    Panel
    • Screen Size (Inch)
      30"
      Panel Technology
      OLED
    • Back Light Type
      OLED
      Aspect Ratio
      16:9
    • Native Resolution
      1366x768 (HD)
      Refresh Rate
      120Hz
    • Brightness (Typ.)
      200/600nit (APL 100%/25%, Without Glass)
      Contrast Ratio
      200,000:1
    • Color gamut
      BT709 110%
      Viewing Angle(H x V)
      178 X 178
    • Color Depth
      10bit(R), 1.07Bilion colors
      Response Time
      0.1ms (G to G), 8ms (MPRT)
    • Surface Treatment(Haze)
      Hard coating 5H, Haze 3% (Set)
      Life time
      30,000 Hrs (Typ.)
    • Operation Hours (Hours/Day)
      18/7 (Moving Content Only)
      Portrait / Landscape
      Yes / Yes
    • Transparency
      37% (Set)
    Connectivity(Jack Interface)
    • HDMI IN
      Yes((1), HDCP2.2/1.4
      DP IN
      Yes(1), HDCP1.3
    • RS232C IN
      Yes(1)
      RJ45(LAN) IN
      Yes(1)
    • IR IN
      Yes((1), External IR Receiver
      USB IN
      USB2.0 Type A(2ea, 1ea Controller)
    • DP Out
      Yes(1)
      Audio Out
      Yes(1)
    • Touch USB
      USB2.0 Type B(1)
      RS232C Out
      Yes(1)
    • RJ45(LAN) Out
      Yes(1)
      IR Out
      Sharing RS232C Out
    Mechanical
    • Bezel Color
      Transparent
      Bezel Width
      T/R/L/B : 7.9/7.9/7.9/114.7 mm
    • Weight (Head)
      4.2kg (Head), 2.4Kg (Signage Box)
      Packed Weight
      10.1 kg
    • Monitor Dimensions (W x H x D)
      680.2 x 496.2 x 15.3 mm (Head)
      449.2 x 288.6 x 42.8 mm (Signage Box)
      Carton Dimensions (W x H x D)
      826 x 593 x 195 mm
    Protection Glass
    • Thickness
      3.0mm
      Tempered / Chemical strengthening
      Chemical strengthening
    • Anti-Reflective
      Yes (AR+AF Coating)
      Shatter-Proof
      Yes
    HW Feature
    • Internal Memory (eMMC)
      16GB
      Temperature Sensor
      Yes
    SW Feature
    • OS ver.
      webOS7.5
      Local Contents Scheduling
      Yes
    • Group Manager
      Yes
      USB Plug & Play
      Yes
    • Fail over
      Yes
      RS232C Sync
      Yes
    • Local Network Sync
      Yes
      Video Tag
      Yes (4)
    • Screen Rotation
      Yes
      Gapless Playback
      Yes
    • Setting Data Cloning
      Yes
      SNMP
      Yes
    • ISM Method
      Yes
      Status Mailing
      Yes
    • Control Manager
      Yes
      PM mode
      Yes
    • Wake on LAN
      Yes
      HDMI-CEC
      Yes
    • SI Server Setting
      Yes
    Environment Conditions
    • Operation Temperature
      0 °C to 40 °C
      Operation Humidity
      10 % to 80 %
    Power
    • Power Supply
      AC 100-240V~, 50/60Hz
      Power Type
      Built-In Power
    • Power Consumption (Typ.)
      45W (IEC 62087)
      Power Consumption (Max.)
      86W
    • Power Consumption (British Thermal Unit)
      154 BTU/Hr(Typ.), 294 BTU/Hr(Max.)
      Power Consumption (DPM)
      0.5W
    • Power Consumption (Power Off)
      0.5W
    Certification
    • Safety
      CB / NRTL
      EMC
      FCC Class "A" / CE / KC
    • ErP / Energy Star
      Yes / No
    Software Compatibility
    • SuperSign CMS
      Yes
      SuperSign Control+
      Yes
    • SuperSign Cloud
      Yes
      Mobile CMS
      Yes
    • Connected Care
      Yes
    Language
    • OSD
      English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Polski, Türk?e, Arabic
    Accessory
    • Basic
      Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3Mx4ea/3Mx2ea for connection between panel and Signage Box), HDMI Cable(3M), Micro to A type USB cable(3M, for connection between Touch and Signage box), A to B type USB cable(Touch out), Screw(M4xL22,12EA / M4 Nut 12EA / M3xL5.5(Silver),M3xL5.5(Black) 8EA / Shield Cover Assy', Rubber Damper 4EA, Touch Cable Holder 2EA, MCX Cable Holder 2EA
    Special Feature
    • Conformal Coating (Power Board)
      Yes
    Product Dedicated
    Feature
    • Available object size for touch
      ?8 mm ↑
      Reponse Time(PC Win10, Education Mode)
      100ms ↓
    • Accuracy (Typ.)
      2mm
      Interface
      USB2.0
    • Protection Glass Thickness
      3.0T (Anti-Refllection / Anti-Finger print)
      Protection Glass Transmission
      85% (Typ.)
    • Operating System Support
      Windows 10/11
      Multi touch point
      Max 10 Points
    • Dimension
      • 30ew5tp-a_2d.dwg
      • 30ew5tp-a_2d.pdf
    • Datasheet
      • 30EW5TP-A_Datasheet(low)_LG T-OLED Touch Signage_240702.pdf
    • Software

      To download Software, Please visit the Software Download Page (Click).

    • Manual

      To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

    To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
