55EF5F-P component-copyModelName

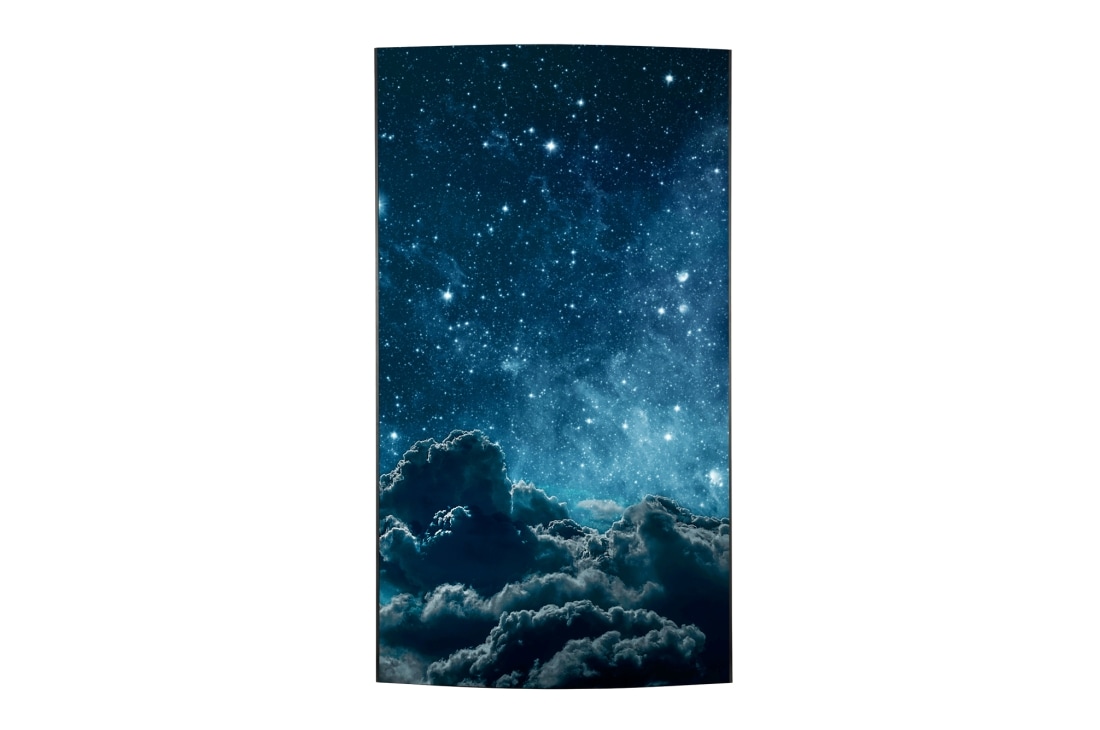

Curvable OLED Signage

LG Curvable OLED Signage, 55EF5F-P, thumbnail 1

LG Curvable OLED Signage, 55EF5F-P, thumbnail 2

LG Curvable OLED Signage, 55EF5F-P, thumbnail 3

LG Curvable OLED Signage, 55EF5F-P, thumbnail 4

LG Curvable OLED Signage, 55EF5F-P, thumbnail 5

LG Curvable OLED Signage, 55EF5F-P, thumbnail 6

LG Curvable OLED Signage, 55EF5F-P, thumbnail 7

LG Curvable OLED Signage, 55EF5F-P, thumbnail 8

LG Curvable OLED Signage, 55EF5F-P, thumbnail 9

Discontinued

55EF5F-P component-copyModelName

Curvable OLED Signage

Key Features

Brightness(Typ.): 400 cd/m2 (Average Picture Level 25%)
Depth: 12.4 mm (Head Only)
Curvature: ~1,000R(Concave/convex)
Interface: HDMI, DP, USB(2), Audio, RS232C, RJ45, IR

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.): 400 cd/m2 (Average Picture Level 25%)
Depth: 12.4 mm (Head Only)
Curvature: ~1,000R(Concave/convex)
Interface: HDMI, DP, USB(2), Audio, RS232C, RJ45, IR

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Curvable OLED Signage

Artistic Space beyond Display

Beyond its informative features, LG OLED signage delivers unsurpassed advertising effectiveness, redesigning space as a prestige-enhancing landmark with perfect colors and innovative forms.

55EF5F-02-Perfect Black-Open Frame-OLED Signage-ID_1565913691946

UNRIVALED PICTURE QUALITY

Perfect Black

Equipped with over 8 million self-lighting pixels operating individually, LG OLED Signage reproduces absolute blacks with no light bleed and offers infinite contrast.

55EF5F-03-Perfect Color-Open Frame-OLED Signage-ID_1565913738479

UNRIVALED PICTURE QUALITY

Perfect Color

LG OLED Signage provides richness in all colors, bringing colors to life with superb accuracy and vividness.

55EF5F-04-Perfect Viewing Screen-Open Frame-OLED Signage-ID_1565913795297

UNRIVALED PICTURE QUALITY

Perfect Viewing Screen

LG OLED Signage delivers its awe-inspiring picture quality and brightness even from wide viewing angles.

55EF5F-05-Perfect Design-Open Frame-OLED Signage-ID_1565913860674

SPACE-FITTING DESIGN

Perfect Design

LG OLED technology doesn't require a backlight unit nor a liquid crystal layer so it offers a flexible design with unbelievably lightweight and slim features.

55EF5F-06-Expandable Screen Size-Open Frame-OLED Signage-ID_1565913913765

SPACE-FITTING DESIGN

Expandable Screen Size

The screen size can be as large as users want by tiling up displays horizontally and vertically. This provides viewers with an incredibly immersive viewing experience.

55EF5F-07-Variety of Curvature for Landmarks-Open Frame-OLED Signage-ID_1565914026259

DESIGN FLEXIBILITY

Variety of Curvature for Landmarks

The 55EF5F series supports various concave and convex curvature in both portrait and landscape orientations. You can differentiate your space in a variety of ways with beautifully curved displays to keep passengers captivated and immersed.

55EF5F-08-On-site Customization-Open Frame-OLED Signage-ID_1565914143891

DESIGN FLEXIBILITY

On-site Customization

The 55EF5F series enables a completely new approach for innovative and flexible designs. Its optional "Curvature Calibrator(CC)¹⁾" supports the coordination of displays with various convex and concave curvature, depending on the requirements.

55EF5F-09-LAN Daisy Chain Management-Open Frame-OLED Signage-ID_1565914224129

EXCELLENT PERFORMANCE

LAN Daisy Chain Management

The LAN daisy chain allows users to control and monitor displays, transmit data and even update firmware all at once, reducing management burden.

55EF5F-10-Synced Playback-Open Frame-OLED Signage-ID_1565914278709

EXCELLENT PERFORMANCE

Synced Playback

Through its built-in high performance SoC, each display plays its video tile without lag for synchronized content playback.

Panel

Screen Size

55"

Panel Technology

OLED
Aspect Ratio

16 : 9

Native Resolution

1,920 x 1,080 (FHD)
Brightness (APL25%, Typ., cd/m2)

400

Brightness (APL100%, Typ., cd/m2)

150
Contrast Ratio

150,000 : 1

Viewing Angle (H x V)

178 x 178
Life Time (Typ.)

30,000 Hrs

Operation Hours

18 Hrs / 7 Days (Moving Video Only)
Orientation

Landscape & Portrait

Connectivity

Input

HDMI, DP, USB 2.0 (2)

Output

DP, Audio (Fixed/Off/Variable)
External Control

RS232C In/out, RJ45 In/out, IR In

Physical Specification

Bezel Width (T/B/L/R)

0.6 / 0.6 / 6.7 / 6.7 mm (Flat, Off Bezel)
5.0 / 5.0 / 7.8 / 13.2 mm (Flat, On Bezel)

Monitor Dimension (W x H x D)

701.4 x 1,219.7 x 38.0 mm (Head, w/Pem-nut)
701.4 x 1,219.7 x 12.4 mm (Head Only)
Signage Box: 413 x 353 x 57.3 mm
Weight

7.8 kg (Head)
Signage Box: 3.5 kg

Carton Dimensions (W x H x D)

1,350 x 837 x 250 mm
Packed Weight

18.9 kg

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power
Power Consumption (Typ. / Max.)

309 W / 318 W (Based on 8 color bar)

Certification

Safety

CB / NRTL

EMC

FCC Class “A” / CE / KC
ErP / Energy Star

Yes (EU Only) / No

Media Player Compatibility

OPS type compatible

No

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control+ / Control
Signage365Care

Yes

Accessories

Basic

Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, FFC Cables(220mmx4ea for Connection between Panel and Signage Box), DP Cable, LAN Cable, RS232 Cable(4P-4P), LC Cable(VLC), Tapes, Screws, Shield Cover Ass'y, Tiling Set Fixers, Flex Bars

Optional

Curvature Calibrator (ACC-CC-EF5E)

Dimension
- [Dimension]55EF5F.dwg
- [Dimension]55EF5F.pdf
Datasheet
- 55EF5F_Datasheet(low)_LG OLED Signage_200313.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
