KEY FEATURES

  • Brightness : 4,000 nits (Typ.) / 3,200 nits (Min.)
  • Resolution : ULTRA HD (3,840 x 2,160)
  • Bezel : 13.8 mm (Even Bezel)
  • Double-sided Usage with Dedicated Bracket
  • Built-in Wi-Fi & Bluetooth
  • Web-based Monitoring Solution

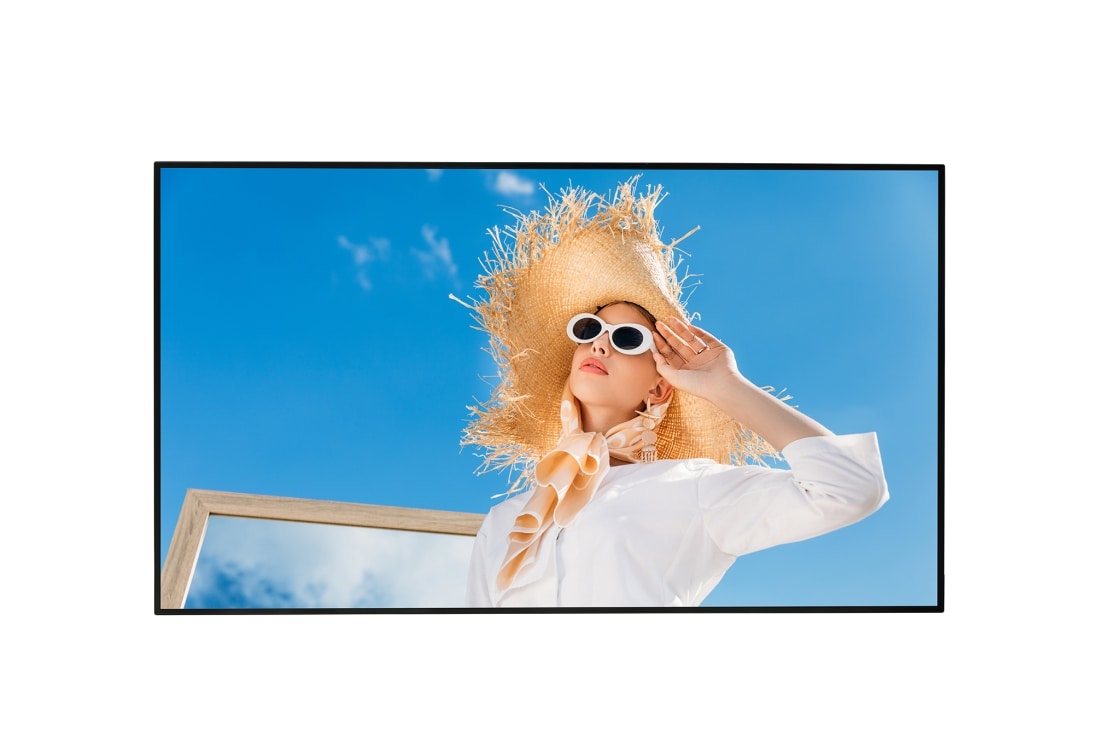

75” XS4G-B Series UHD Window Facing High Brightness Display with Quad Core SoC, webOS? 4.1, Double-sided Use, Built-in Wi-Fi, & Conformal Coating
$ 8,958.00

Make Your Content Stand Out with a Display that is Readable in the Sunlight

*All images of this page are for illustrative purposes only.

Attract Attention with this UHD High Brightness Display

With a brightness of 4,000 nits** and UHD picture quality, 75XS4G-B clearly deliver content even in the full sun of the day. Added Quarter Wave Plate (QWP) enables clear visibility to outdoor patrons even when they are wearing polarized sunglasses.
*Images for Illustration purposes only.
**Brightness of 75XS4G : Max. 4,000 nits, Typ. 3,200 nits.

Slim Design Blends into Virtually any Window Display

The slim design of 75XS4G-B allows the message to be front and center, while the display blends into the store.
*‘LG Conventional’ refers to LG 75XS2E.

Create an Indoor Display using the Dedicated Bracket

75XS4G-B is designed with a back that allows another LG UHD display* to be attached via the use of the dedicated bracket. Retail store owners can create indoor and outdoor signage in the same space.
*LG UHD compatible displays include 65/55/49UH7 Series, 65/55/49UH5 Series, and 65/55/49UM3 Series display.

Wide Operating
Temperature Range

75XS4G-B can operate at various temperatures from 0-40°C (32-104°F).

Conformal Coating

75XS4G-B has conformal coating, which is a thin protective film/breathing membrane that filter water vapor and solid debris, improving the reliability of the display.

High Performance with webOS

Quad Core System on Chip (SoC) allows 75XS4G-B to execute several tasks at the same time without a separate media player. In addition, webOS? 4.1 platform enhances user convenience with intuitive UI and simple app development tools.
* System-on-Chip

Multiple Display Control with a Remote Control

Multiple device controls are available through the RJ45 & RS-232C ports.
It means that even double-sided displays can be easily controlled simultaneously
with a remote control.

Easy Content Distribution and Software Updates

75XS4G-B features embedded Wi-Fi, Bluetooth and Beacon making it easy to distribute content wirelessly and update Firmware. Using Beacon and Bluetooth Low Energy (BLE), Shop managers can do various promotional activities, such as providing promotional coupons or product information to visitor in real time.

Web Monitoring
(Control Manager)

This web-based monitoring solution is user-friendly and enables the user to have full access virtually anywhere at virtually any time from their mobile phone while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.

Install Using Leveler Tool

The 75XS4G-B is equipped with a “Leveler Tool” which shows users how the device is tilted, so the display can be installed level.

Alert for Right Direction

The 75XS4G-B is equipped with a “horizontal sensor”, so the display can be installed the correct way.

PANEL

    • Screen Size
    • 75”
    • Panel Technology
    • IPS
    • Back Light Type
    • Direct
    • Aspect Ratio
    • 16:9
    • Native Resolution
    • 3,840 x 2,160 (UHD)
    • Refresh Rate
    • 60Hz
    • Brightness
    • 4,000nits
    • Contrast Ratio (Typ.)
    • 1,200:1
    • Color Gamut
    • NTSC 68%
    • Viewing Angle (H x V)
    • 178° x 178°
    • Color Depth
    • 10bit, 1.07 Billion colors
    • Response Time (G to G)
    • 8ms
    • Surface Treatment (Haze)
    • 3%
    • Life Time (Typ.)
    • 50,000 Hrs
    • Operation Hours (Hours / Day)
    • 24/7
    • Portrait / Landscape
    • Yes/Yes

CONNECTIVITY

    • RS232C In
    • Yes (3.5mm Stereo Jack)

CONNECTIVITY

    • RJ45 (LAN)
    • Yes

CONNECTIVITY

    • IR In
    • Yes
    • USB
    • Yes (USB2.0 Type A)
    • DisplayPort Out
    • Yes (Input DP/HDMI)
    • Externel Speaker Out
    • Yes (L/R, 10W+10W)
    • RS232C OUT
    • Yes

MECHANICAL

    • Bezel Color
    • Black
    • Bezel Width
    • 13.8mm Even Bezel
    • Weight
    • 110.2 lbs/50kg
    • Dimensions (W x H x D)
    • 64.9 x 37.7 x 4.1 in/1679.2 x 957.6 x 104 mm
    • Shipping Dimensions (W x H x D)
    • 71.5 x 43.5 x 11.2 in/1816 x 1106 x 285 mm
    • Handle / Stand
    • Yes/No
    • VESA? Standard Mount Interface
    • 600 x 400

HARDWARE FEATURES

    • Internal Memory
    • 16GB
    • Built-in Wi-Fi
    • Yes
    • Temperature Sensor
    • Yes
    • Auto Brightness sensor
    • Yes
    • Acceleration(Gyro) Sensor
    • Yes
    • Local Key Operation
    • Yes
    • FAN
    • Yes

ENVIRONMENT

    • Operation Temperature w/o Direct Sunlight
    • 32°F to 104°F/0°C to 40°C
    • Operation Temperature with Direct Sunlight
    • 32°F to 86°F/0°C to 30°C
    • Operation Humidity
    • 10% to 80%

POWER

    • Power Supply
    • 100-240 Vac, 50/60Hz
    • Power Type
    • Built-In Power
    • Typ. Power Consumption (BTU/Hr)
    • 2,559 BTU/Hr
    • Max. Power Consumption (BTU/Hr)
    • 2,696 BTU/Hr
    • Smart Enegy Saving
    • 400W
    • DPM
    • Less than 0.5W
    • Power Off
    • Less than 0.5W

SOFTWARE FEATURES

    • webOS version
    • webOS 4.1
    • Embedded CMS - Local Contents Scheduling
    • Yes
    • Embedded CMS - Group Manager
    • Yes
    • USB Plug & Play
    • Yes
    • Fail over
    • Yes
    • Booting Logo Image
    • Yes
    • No Signal Image
    • Yes
    • RS-232C Sync
    • Yes
    • Local Network Sync
    • Yes
    • Backlight Sync
    • Yes
    • PIP (Picture-in-Picture)
    • Yes
    • PBP (Picture-by-Picture)
    • Yes (2)
    • Screen Share
    • Yes
    • Video Tag
    • Yes (4)
    • Play via URL
    • Yes
    • Screen Rotation
    • Yes
    • External Input Rotation
    • Yes
    • Gapless Playback
    • Yes
    • Tile Mode Setting
    • Yes (Max. 15 x 15)
    • Setting Data Cloning
    • Yes
    • SNMP
    • Yes
    • ISM Method
    • Yes
    • Auto Set ID
    • Yes
    • Status Mailing
    • Yes
    • Control Manager
    • Yes
    • Smart Energy Saving
    • Yes
    • PM mode
    • Yes
    • Wake on LAN
    • Yes
    • Network Ready
    • Yes
    • Beacon
    • Yes
    • HDMI-CEC
    • Yes
    • SI Server Setting
    • Yes
    • webRTC
    • Yes
    • Pro:Idiom
    • Yes
    • Built-in Wi-Fi
    • Yes
    • Temperature Sensor
    • Yes
    • Auto Brightness sensor
    • Yes
    • Acceleration(Gyro) Sensor
    • Yes
    • Local Key Operation
    • Yes
    • FAN
    • Yes

CERTIFICATIONS

    • FCC (Regulatory)
    • Class "A"
    • CE (Regulatory)
    • Yes
    • ErP (Environmental)
    • Yes

LG SOFTWARE & SERVICES*

    • SuperSign CMS
    • Yes
    • SuperSign Control / Control+
    • Yes/Yes
    • ConnectedCare Solution
    • Yes

Warranty & Other

    • Warranty
    • 3 Year Limited
    • Basic Accessories
    • Remote Controller (including battery 2ea), Power Cord, HDMI Cable, Manual (EIG, IG), IR Receiver (w/ Ambient Light Sensor), RS-232C Adapter, IR Sheet
    • Optional Accessory
    • Wall Mount: WM-B640S (Landscape & Portrait)
