49XS2E component-copyModelName

Window Facing Display

LG Window Facing Display, 49XS2E, thumbnail 1

LG Window Facing Display, 49XS2E, thumbnail 2

LG Window Facing Display, 49XS2E, thumbnail 3

LG Window Facing Display, 49XS2E, thumbnail 4

LG Window Facing Display, 49XS2E, thumbnail 5

LG Window Facing Display, 49XS2E, thumbnail 6

LG Window Facing Display, 49XS2E, thumbnail 7

LG Window Facing Display, 49XS2E, thumbnail 8

LG Window Facing Display, 49XS2E, thumbnail 9

Discontinued

49XS2E component-copyModelName

Window Facing Display

Key Features

Brightness: 2,500cd/m2 (Typ)
Life Time: 50,000 Hours
Bezel Width: 9 mm (T/B), 6.5 mm (L/R)
Depth: 83.5 mm
Interface: HDMI(2) / DP / DVI-D / RJ45 / IR / RS232C / USB / External Speaker Out(L/R)

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness: 2,500cd/m2 (Typ)
Life Time: 50,000 Hours
Bezel Width: 9 mm (T/B), 6.5 mm (L/R)
Depth: 83.5 mm
Interface: HDMI(2) / DP / DVI-D / RJ45 / IR / RS232C / USB / External Speaker Out(L/R)

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

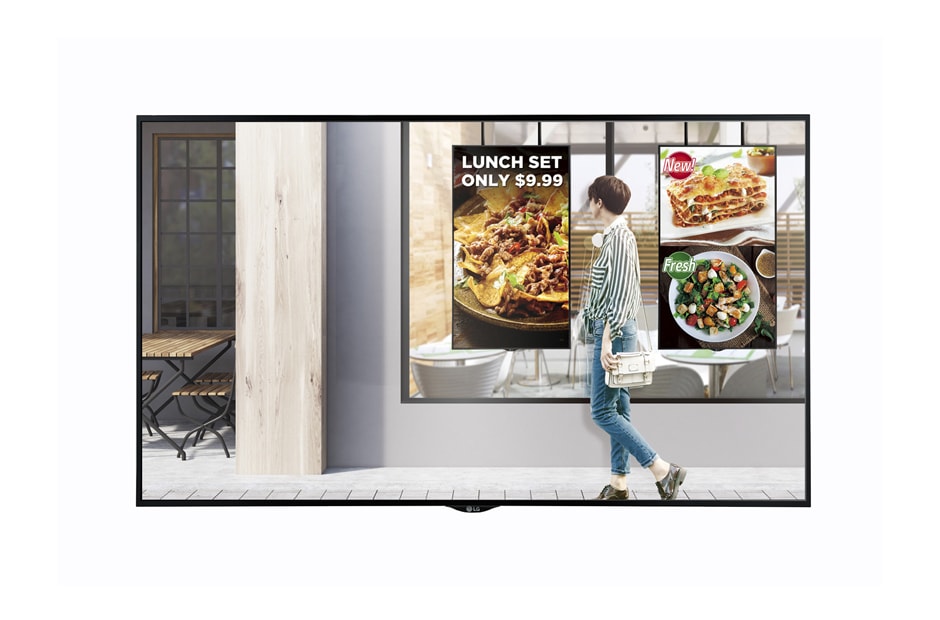

Window Facing Display

Outstanding Visibility

High Brightness

With a great brightness of 2,500 cd/㎡ , XS series clearly delivers contents and attracts public attention, which is the ultimate display for outdoor visibility.

02_Visible with Polarized Sunglasses_1540536484018

Outstanding Visibility

Visible with Polarized Sunglasses

QWP^{(Quarter Wave Plate)} enables clear visibility even when the viewer is wearing polarized sunglasses.

Quiet Operation

Fan-less Design

By eliminating the need for a cooling fan, we have made the XS series an ideal choice for the in-window environment. Its operating noise level is under 25dB, which is quieter than that of daily conversation.

Space Efficiency

Slim Design

Thanks to its thin depth, the XS series takes up less space, which leads to space efficiency in an in-window environment.

07_High-Performance-with-webOS-Smart-Platform_1522974801278

User Convenience

webOS Smart Platform

Quad Core SoC^{(System-on-Chip)} can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.

04_Smart-Brightness-Control_1522974617615

User Convenience

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

Panel

Screen Size

49" (48.50" Measured Diagonal)

Resolution

1,920 x 1,080 (FHD)
Brightness (Typ., cd/m2)

2500

Connectivity

Input

HDMI(2), DP, DVI-D, Audio, USB

Output

DP, External Speaker (L/R)
External Control

RS232C In/Out, RJ45 In, IR Receiver In

Physical Specification

Bezel Width

9 mm (T/B), 6.5 mm (L/R)

Monitor Dimension (W x H x D)

1,092.8 x 626.4 x 83.5 mm
Weight (Head)

20.2 kg

Carton Dimensions (W x H x D)

1,181 x 212 x 725 mm
Packed Weight

24.7 kg

VESA? Standard Mount Interface

600mm x 400mm

Environment Conditions

Operation Temperature

0°C to 40°C (w/o Direct Sunlight),
0°C to 30°C (Direct Sunlight)

Operation Humidity

10% to 85%

Power

Power Type

Built-In Power

Power Supply

100-240V~, 50/60Hz

Power Consumption

Typ.

200W (Full White)
187W (IEC 62087)

Max

240W

Standard(Certification)

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC / VCCI
ErP / Energy Star

Yes (EU Only) / No

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control+
(Software compatibility may change over time.)

Accessory

Basic

Remote Controller, Power Cord, HDMI Cable, Manual (ESG/EIG), IR Receiver (w/ Ambient Light Sensor)

Optional

Landscape Wall Mount (WM-L640V), Portrait Wall Mount (WM-P640V), Wi-Fi Dongle (AN-WF500)

Dimension
- 49xs4fj_2d.dwg
- 49xs2e_2d.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
