75XS2E component-copyModelName

Window Facing Display

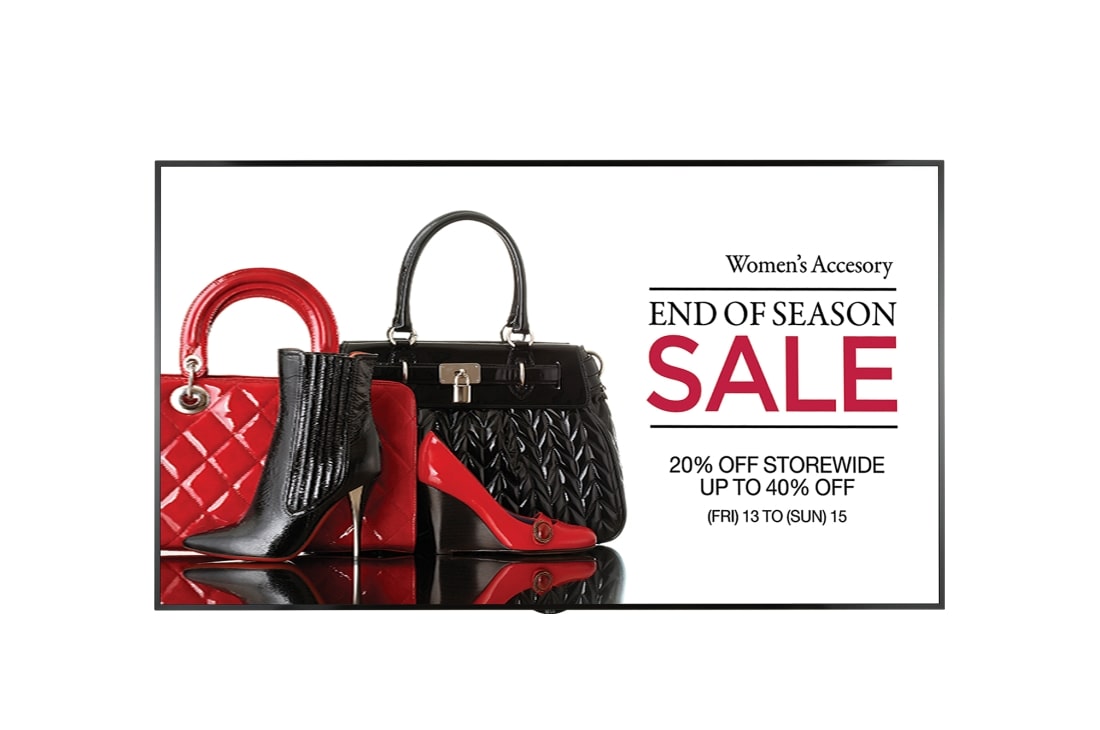

LG Window Facing Display, Front view with infill image, 75XS2E, thumbnail 1

LG Window Facing Display, Front view, 75XS2E, thumbnail 2

LG Window Facing Display, -45 degree side view, 75XS2E, thumbnail 3

LG Window Facing Display, -90 degree side view, 75XS2E, thumbnail 4

LG Window Facing Display, +45 degree side view, 75XS2E, thumbnail 5

LG Window Facing Display, +90 degree side view, 75XS2E, thumbnail 6

LG Window Facing Display, Top view, 75XS2E, thumbnail 7

Discontinued

75XS2E component-copyModelName

Window Facing Display

Key Features

Brightness : 2,500 cd/m2 (Typ.)
Life Time : 50,000 hours
Bezel Width: 11.8 mm (Even, Off-Bezel)
Depth : 116 mm
Interface: HDMI(2)/ DP/ DVI-D/ RJ45/ USB/ SD Card/ IR/ RS232C/ External Speaker Out

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness : 2,500 cd/m2 (Typ.)
Life Time : 50,000 hours
Bezel Width: 11.8 mm (Even, Off-Bezel)
Depth : 116 mm
Interface: HDMI(2)/ DP/ DVI-D/ RJ45/ USB/ SD Card/ IR/ RS232C/ External Speaker Out

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Window Facing Display

Catch Storefront Passerby Eye with a Large High Brightness Display

Inside the pharmacy, there are two large displays installed —one on the left side of the store window and the other on the right—showcasing clear advertising content.

* All images in this page are for illustrative purposes only.
** Please follow the installation guide to get warranty.
*** UV-Film can be recommended depending on installation site.

A woman wearing sunglasses is watching ads on the display installed in a shop window, and the ads on the display are very visible even under the strong sunlight.

High Visibility Under Strong Sunlight

With stunning high brightness of 2,500 nits (Typ.), XS2E outdoor display highlights the contents clearly beyond the window. In addition, its outstanding visibility can deliver a variety of information even to those wearing polarized sunglasses.

A blurry picture of FHD is being compared with UHD with vivid quality images.

Superb Picture Quality with Ultra HD Resolution

With the resolution of UHD, it makes the color and details of the contents vivid and realistic.

Three large displays are set up near the shop window, providing a vivid view of the content from any angle.

Wide Viewing Angle

Customers can enjoy the content vividly from various angle of the window as they walk. The IPS panel enables XS2E to have a wide viewing angle.

* within 178 degree

Sleek displays with slim bezels are positioned close to the window.

Slim Design

XS2E attracts attention with elegant design, featuring a slim bezel. Thanks to its thin depth, XS2E takes up less space, which leads to space efficiency in an in-window environment.

The café boasts two displays on the shop window. The XS2E model's low fan noise enables smooth communication and conversation even when sitting close to the display.

Quiet Fanless Design

By eliminating the need for a cooling fan, XS2E is quieter than that of daily conversation (50db). Its low operating noise level is suitable for the in-window environment.

A display is working well in an environment of 0~40°C.

Wide Operating Temperature

XS2E can be used under a wide range of operating temperatures from +0°C to +40°C.

* 0 °C to 40°C (w/o Direct Sunlight, Direct Sunlight in Cooling System),
0 °C to 30°C (Direct Sunlight)

The XS2E screen can adjust its brightness automatically according to the ambient light.

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

A number of tasks that can be done simultaneously are easily arranged through the webOS platform.

webOS Smart Platform

Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app development tools.

User can monitor and control their displays through mobile phone and laptop.

Real-time Remote Web Monitoring

The LG Control Manager*, the embedded web monitoring program, allows a variety of parameters to be diagnosed in real time such as temperature, ambient light, and gyro sensors. It can be easily controlled at all times.

* Enabled by wired LAN connection

It operates displays simultaneously with one remote control.

Multi Display Control

Multiple device controls are available through the RJ45 & RS232C ports. It means that even double-sided displays can be easily controlled simultaneously with a remote control.

Panel

Screen Size

75" (74.52" Measured Diagonal)

Resolution

3,840 x 2,160 (UHD)
Brightness (Typ., cd/m2)

2500

Connectivity

Input

HDMI(2), DP, DVI-D, Audio, USB, SD Card

Output

DP, External Speaker (L/R)
External Control

RS232C In/Out, RJ45 In, IR Receiver In

Physical Specification

Bezel Width

11.8 mm (Even)

Monitor Dimension (W x H x D)

1,675.2 x 953.6 x 116 mm
Weight (Head)

43 kg

Packed Weight

52.2 kg
VESA? Standard Mount Interface

600 x 400 mm

Environment Conditions

Operation Temperature

0°C to 40°C (w/o Direct Sunlight),
0°C to 30°C (Direct Sunlight)

Operation Humidity

10% to 85%

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ.

585W (Full White)
400W (IEC 62087)

Max

600W

Standard(Certification)

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC / VCCI
ErP / Energy Star

Yes (EU Only) / No

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control / Control+

Accessory

Basic

Remote Controller, Power Cord, HDMI Cable, Manual (ESG/EIG), IR Receiver (w/ Ambient Light Sensor)

Optional

Wall Mount (LSW630), Wi-Fi Dongle (AN-WF500)

Dimension
- 75xs2e_2d.dwg
- 75xs2e_2d.pdf
Datasheet
- XS2E_Datasheet(low)_LG Window Facing Display_230725.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
